Micro Spray Water Belt Machine

As the professional manufacturer, Comrise Machinery would like to provide you high quality micro spray water belt machine, which uses precisely designed water outlets and a pressure system to transform water flow into a uniform fine mist, achieving efficient water-saving irrigation.

The advantage and function of machine details

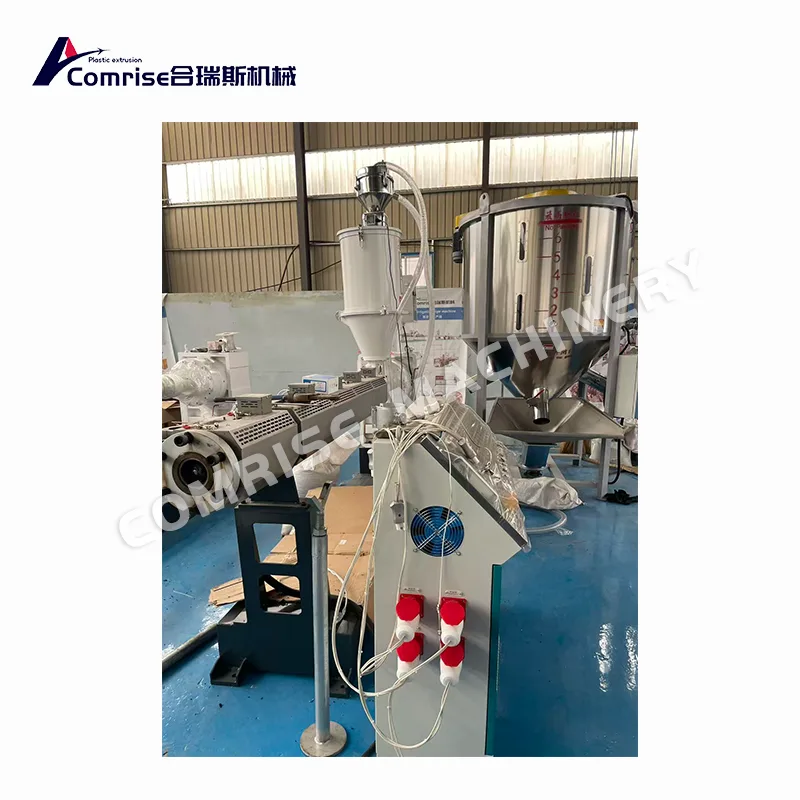

Main Extruder

Performance Details：Responsible for melting plastic raw materials (such as PE or PVC) and extruding them into strips; key performance includes extrusion precision (strip thickness error ≤0.1mm) and temperature control range (120-200)℃, affecting material uniformity), production capacity :50-200 kg/h,depending on the model and wear resistance .

Function：Ensure the basic strength and consistency of the straps to reduce the scrap rate.

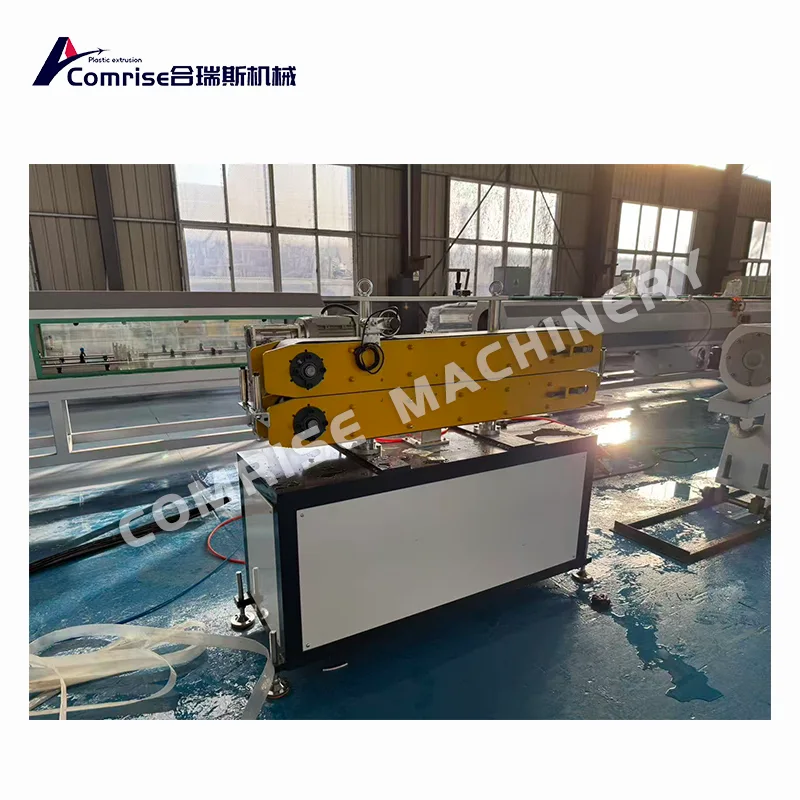

Traction Drilling System:

Performance details: The traction belt moves forward and accurately punches holes (micro-spray holes). Performance includes traction speed (0.5-5 m/min, adjustable), punching accuracy (hole diameter 0.5-1.2mm, hole spacing error ≤1mm), degree of automation (such as laser or mechanical punching, error rate <0.5%), and system stability (strong anti-interference capability, suitable for continuous operation)

Function: Controls the uniformity of water flow distribution, directly affecting irrigation efficiency

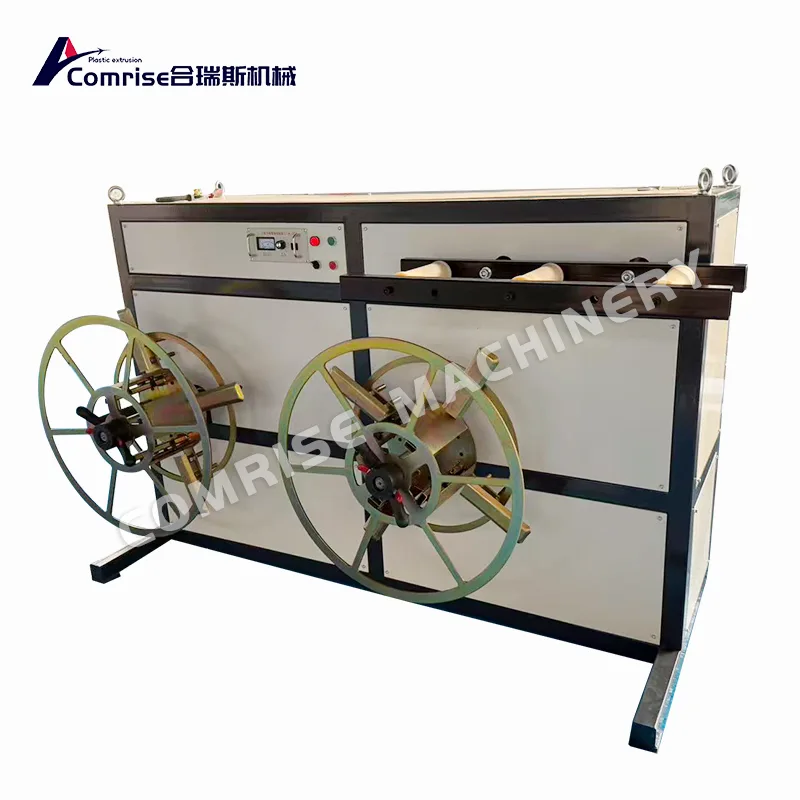

Winding device:

Performance Details: The finished product is rolled up and stored, with performance features including winding tension control (adjustable range 5-50N to prevent deformation), roll diameter capacity (maximum diameter 1-2m), automatic roll change function (reducing manual intervention), and speed synchronization (matching error with the traction system <1%).

Function: Ensure that the finished product is rolled up neatly for easy transportation and installation.

Matching Drying and Mixing Machine (Auxiliary Equipment)：

Performance Details: Pre-processing raw materials (such as plastic pellets), performance includes drying efficiency (humidity reduced to below 0.1%, time ≤30 minutes), mixing uniformity (ratio error <2%), processing capacity (matching the main machine's capacity), and energy consumption (low power design, cost-saving).

Function: Improve raw material quality and reduce extrusion defects.

Applicable Scenarios

As a multifunctional fluid transport equipment, the core applications of water belt made by Micro spray water belt machine include:

1 ‌ High-value crops such as vegetables, flowers, and lawns: Because it allows for precise control of water volume, it is suitable for areas requiring meticulous management like vegetable fields, flower beds, and lawns. It saves 50% to 70% more water than traditional furrow irrigation and can be combined with fertilization to enhance fertilizer efficiency.

2.‌ Orchards, nurseries, and economic forests: Suitable for perennial crops such as fruit trees and seedlings, can improve the microclimate in the field and promote growth.

3. Field crops and special environments: such as row crops like wheat and corn, or used in scenarios like under-membrane irrigation for cotton and desert reforestation.

High quality Micro spray water belt machine made by Comrise Machinery Co., Ltd is our hot selling product, with strong technical advantages and rich experience in production and excellent after sales service is your best choice to expand your business. Welcome to inquiry and visit the factory.
