HDPE Double Wall Corrugated Pipe Machine

Machine Overview

Comrise’s high quality HDPE double wall corrugated pipe machine is a specialized machine used for producing double wall corrugated pipes with different colors and materials on the inner and outer layers. It is manufactured by Comrise Machinery Co., Ltd. It is widely used in municipal engineering, cable sheathing, and agricultural irrigation. The equipment uses an automated control system and supports online flaring and module interchange.

HDPE double wall corrugated pipe machine core components mainly include the following key components:

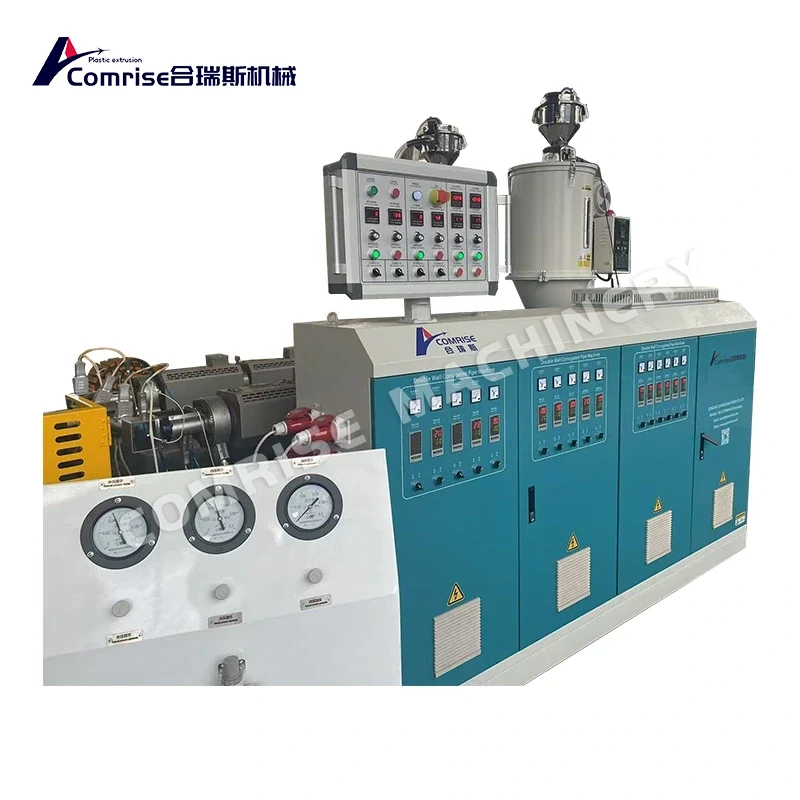

Extrusion System

Using a twin-shaft extruder with a single/double screw structure responsible for plastic melting and conveying.

Control System

Adopt Siemens PLC control system to achieve automated production process control.

Vacuum Forming System

Through vacuum adsorption technology, a ring structure forms on the outer wall of the corrugated pipe.

Mold Module

Made of 40Cr alloy steel, molds of different diameters (110-1200mm) can be customized to ensure molding accuracy.

Host Configuration

HDPE double wall corrugated pipe machine equipped with a 55KW AC motor and LV12 aviation aluminum module to ensure stable operation and durability of the equipment.

Application Scope

Products are Mainly used in large-scale water supply, drainage, sewage, exhaust, subway ventilation, mine ventilation, and agricultural irrigation with working pressures below 0.6MPa.

HDPE double wall corrugated pipe machine supplied by Comrise Machinery Co., Ltd, with strong technical advantages and rich experience in production and installation is your best choice to expand your business. Welcome to inquiry and visit the factory.
