Comrise High Quality Single Wall Corrugated Pipe Machine Supplier

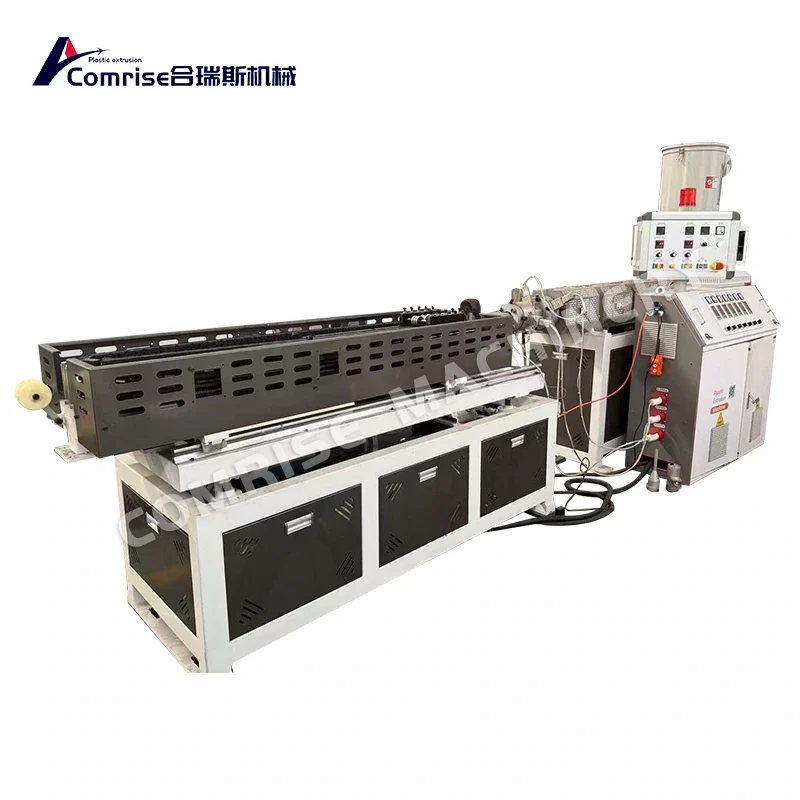

As a professional pipe machine Manufacturer in China, Comrise would like to provide you high quality single wall corrugated pipe machine adopts gear drive modular design, capable of processing PP, PE, PVC, PA and other thermoplastic materials. Our production line machine consists of extrusion machine, corrugated forming machine, cooling and setting device, length counting equipment and winding system, forming a complete continuous production line. Special design screw and die head structure ensure uniform plasticization of materials, regular corrugated shape, straight pipe seam and good surface finish.

Product Feature

Comrise high quality single wall corrugated pipe machine is characterized by its flexible production adaptability.

1. Bellows with different diameters and specifications can be produced by changing the mold module.

2. The two-cavity mold design allows two different specifications to be produced simultaneously without disassembling the equipment.

3. Gear transmission system ensures synchronous precision of forming process, vacuum forming technology ensures clear and stable corrugated structure.

4. The speed of the whole line is adjustable, the control system is easy to operate, and the technical requirements for operators are effectively reduced.

Maintenance Method

1. Transmission system should be regularly checked gear meshing condition and supplement lubricating grease, vacuum pump to keep the working medium clean and timely replacement.

2. The cooling circuit should be cleaned regularly to ensure heat exchange efficiency.

3. The inspection of the molding module includes checking for wear and cleaning of residual materials.

4. The electrical control system needs to keep the environment dry and tighten the terminals regularly.

5. Screw barrel should be thoroughly cleaned when shutdown to avoid material degradation affecting the next startup.

6. Long-term storage of the mold to be rust treatment, key moving parts to add protective oil.

Machine Parameters:
