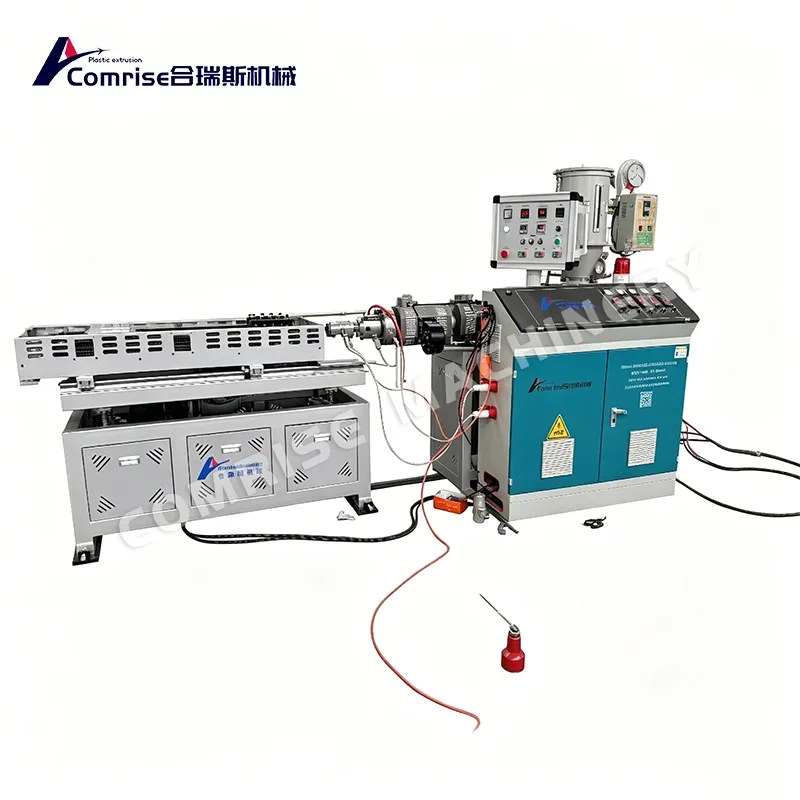

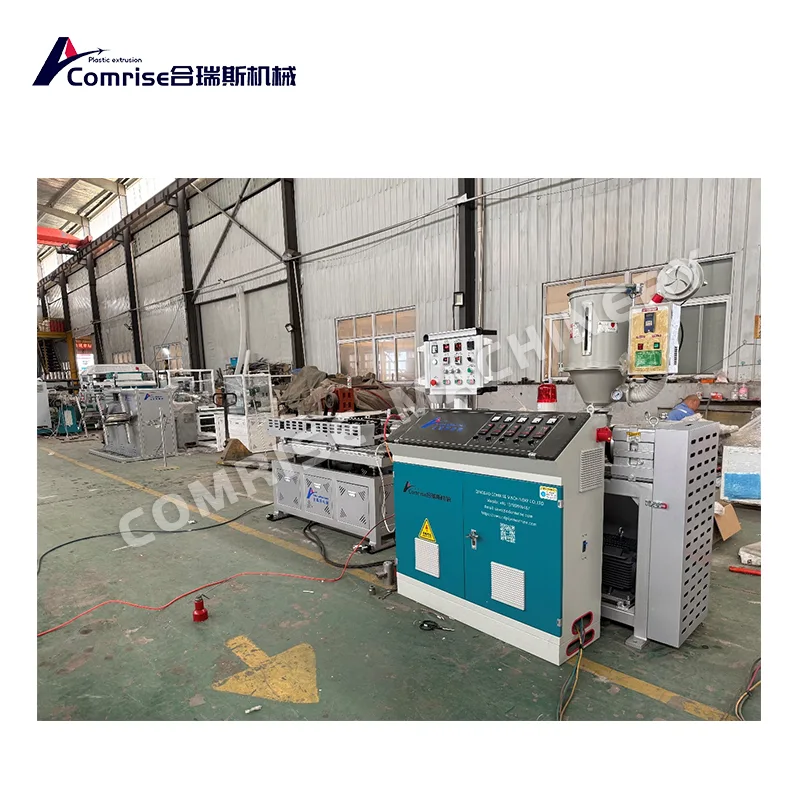

20-25mm Single Wall Corrugated Pipe Machine

As a professional manufacturer of single-wall corrugated pipe equipment in China, the 20-25mm Single Wall Corrugated Pipe Machine offered by the Comrise factory features a 15kW motor and 3-zone heating control. It utilizes nitrided molding dies and high-hardness, wear-resistant 38CrMoAlA templates, achieving a production speed of 20–30 meters per minute and supporting the production of pipes using PE, PP, and PVC raw materials.

Product Components

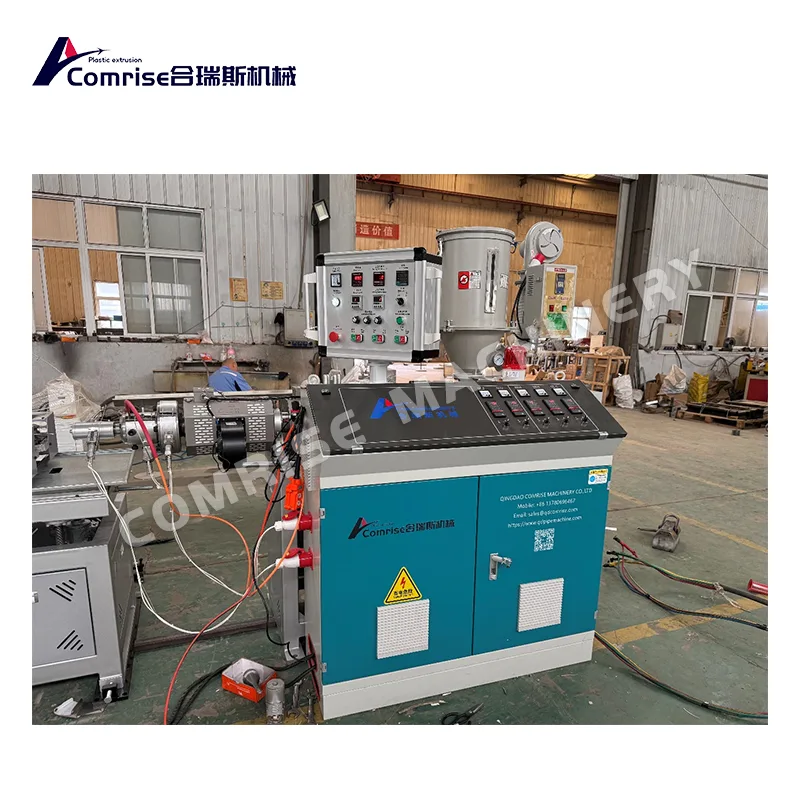

1.Extruder: Equipped with a 50/30 extruder, 3-zone heating control, 15kW motor to ensure plasticizing effect, and specially designed screw to produce three types of raw materials: PE, PP, and PVC

2.Head mold: energy-saving and environmentally friendly heating, can save 30% of energy consumption

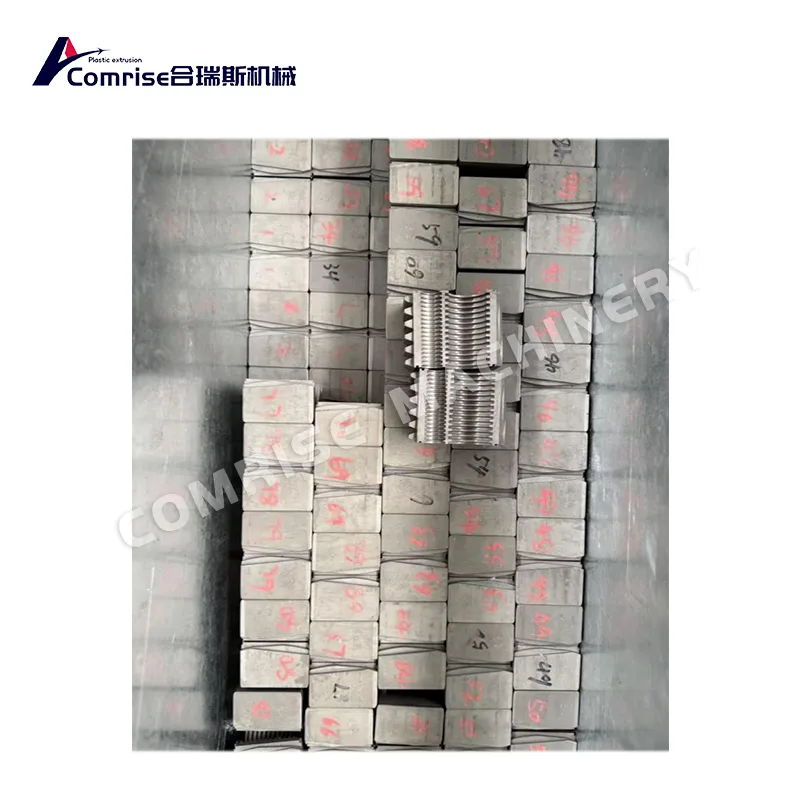

3.Molding mold: Adopting nitriding treatment, it has stronger hardness and longer service life. Multi cavity molds can save customers' costs and mold replacement time

4.Forming machine: Production speed: 20-30m/min Plate: 38CrMoAIA, high hardness, strong wear resistance, long service life.

Mobile mode:

----Up and down: Electric adjustment

----Left and right: Manually adjust using an online cutting machine, customers can set the length according to their requirements

Dual station rewinding machine: an automatic rewinding machine that can adjust speed according to production speed. Customers can choose a single station or dual station rewinding machine according to their requirements

Our 20-25mm single wall corrugated pipe machine has the characteristics of long service life, smooth operation, good quality of produced pipes, favorable prices, and guarantees timely after-sales service and one-year warranty

Main purpose

1.Wire and cable protection

20-25mm Single Wall Corrugated Pipe Machine is widely used in construction, communication, subway, streetlight lines, park fiber optic laying and other scenarios, as a conduit for wires and cables to prevent mechanical damage and aging

2.Drainage and ventilation system

Suitable for drainage and ventilation pipelines in homes, industries, agriculture, golf courses, sports fields, parks, and other places, capable of effectively removing rainwater, sewage, or air

3.Automobiles and Transportation Vehicles

Used for cable protection, ventilation ducts, etc. in vehicles to improve durability and safety

4.Medical equipment

Used for medical applications such as oxygen pipelines and catheters to ensure safety and flexibility.

5.Special Engineering Applications

Highway drainage: vertical and horizontal drainage and permeability, as well as drainage from the back of retaining walls and side ditches.

Tunnel and underground drainage: a drainage system used for tunnels and underground passages

Municipal engineering: water treatment plants, sewage treatment plants, garbage dumps and other water supply and drainage systems

Slope Soil and Water Conservation: Slope Drainage and Soil and Water Conservation for Slope Land Development

6.Architecture and Decoration

Wire conduit used in indoor decoration, easy to install, high construction efficiency
