Comrise Machinery Co., Ltd., is a professional supplier of PVC Ceiling Machine, located in the seaside city of Qingdao China, launched a new product PVC Ceiling Machine,with stable output, low material cost, beautiful surface finish – one line for PVC ceilings, wall panels, and interior profiles.
Product Use / Application
The PVC Ceiling Machine is used to produce lightweight decorative panels for:
Residential ceilings (bathroom, kitchen, living room)
Commercial interiors (offices, shops, hotels, hospitals)
Wall cladding and false ceiling systems
Moisture-proof, termite-proof, fire-retardant interior decoration
Typical panel sizes: 200 mm, 250 mm, 300 mm, 400 mm, 600 mm width; thickness 5–10 mm
Machine Components & Performance

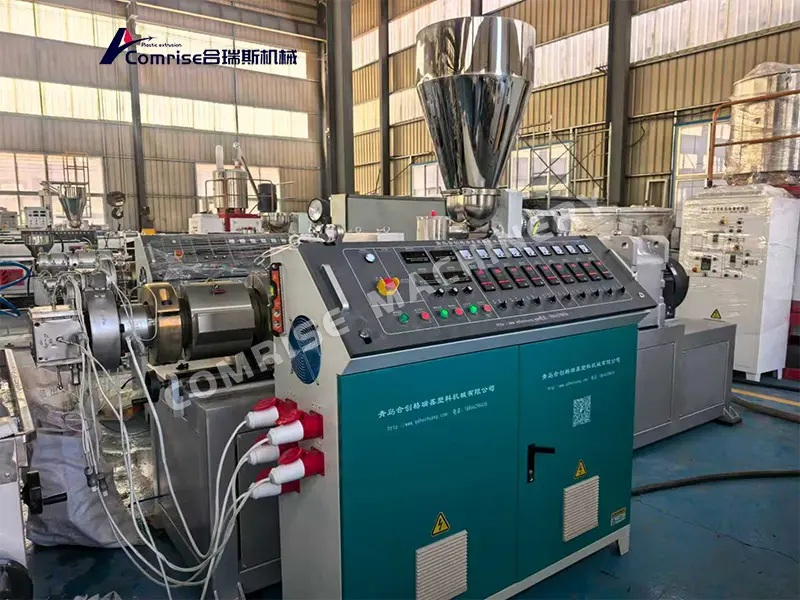

① Conical Twin-Screw Extruder
Specially designed screw for PVC powder and high-CaCO₃ formulas
Bimetallic barrel, nitrided screw, long service life

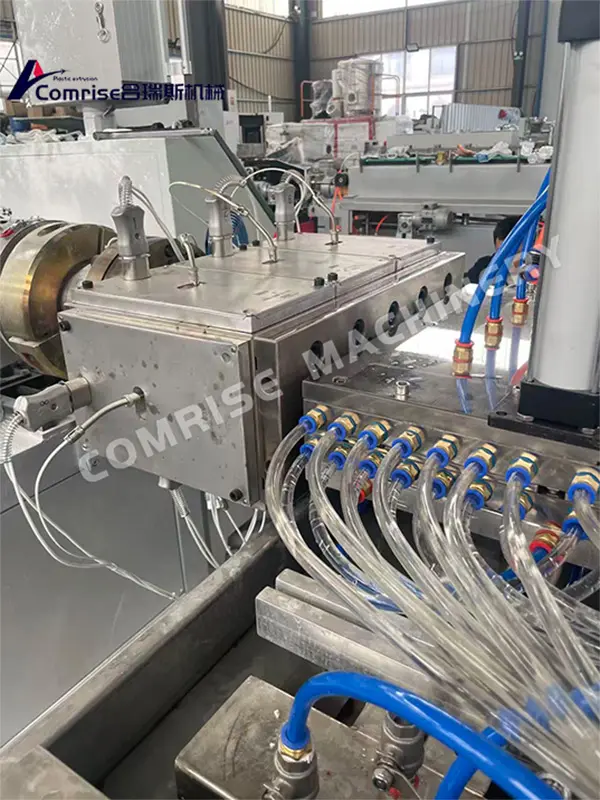

② Extrusion Die Head & Ceiling Mold
PVC Ceiling Machine use 3Cr13 / 3Cr17 mold steel, mirror polished
Uniform melt flow, no weld line, smooth panel surface

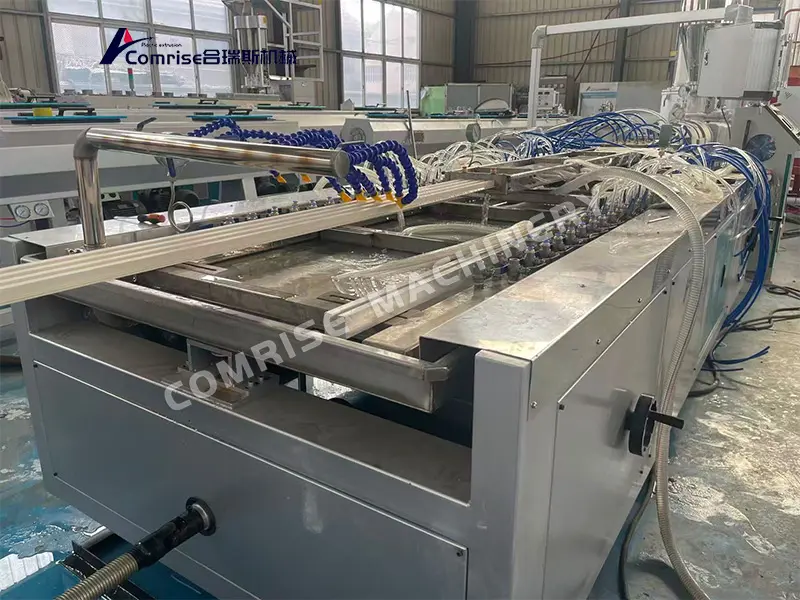

③ Vacuum Calibration Table
Vacuum + spray cooling keeps panel flat and dimension-accurate
Panel width tolerance controlled tightly for click-lock installation
Length: 4 m / 6 m / 8 m depending on model

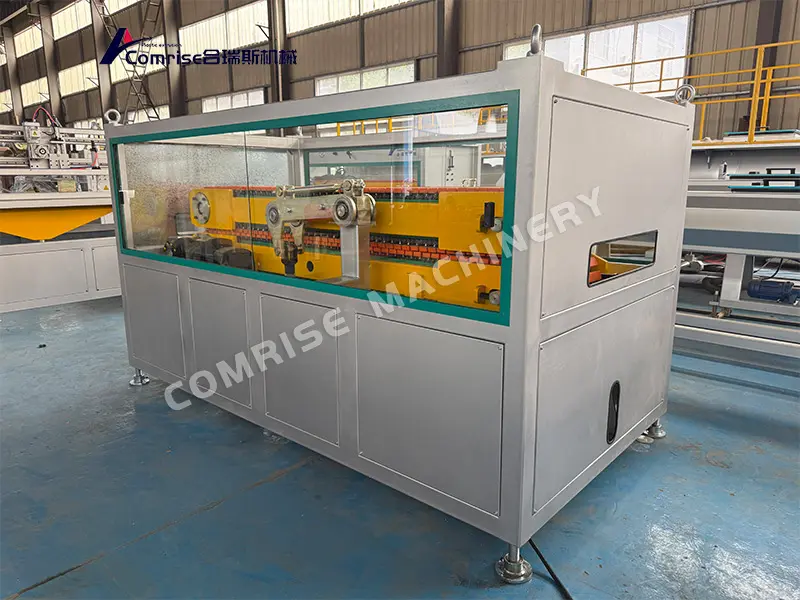

④ Caterpillar Haul-Off Unit
Pneumatic clamping, no panel deformation
Inverter/servo speed sync with extruder

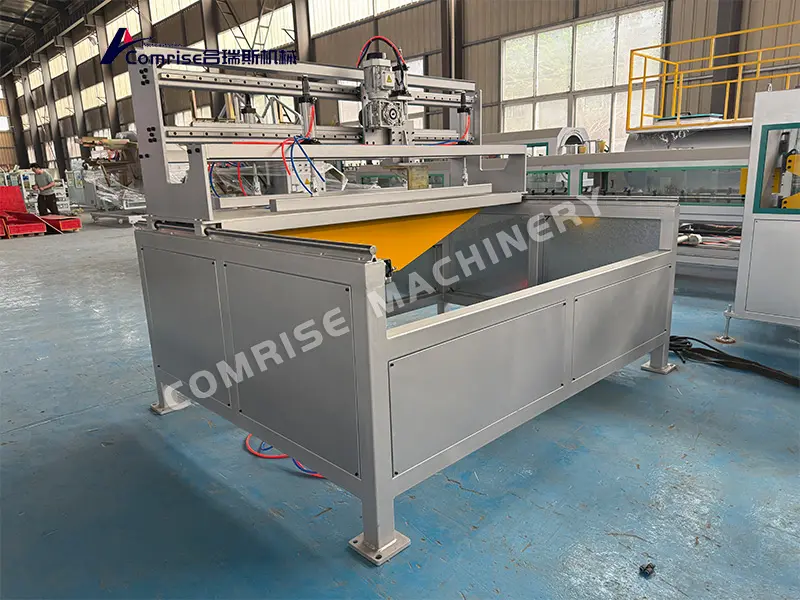

⑤ Automatic Cutting Machine
PLC-controlled fixed-length cutting
Moves synchronously with haul-off
⑥ Stacker / Tip-Over Table
Pneumatic discharge, neat stacking
Protects panel corners and surface
Machine Specifications Table
|
Model
|
Extruder
|
Max Width
|
Capacity
|
Line Speed
|
Main Power
|
|
SJSZ51/105
|
Conical twin screw
|
200 mm
|
80–120 kg/h
|
2–5 m/min
|
18.5 kW
|
|
SJSZ55/110
|
Conical twin screw
|
250 mm
|
100–150 kg/h
|
2–6 m/min
|
22 kW
|
|
SJSZ65/132
|
Conical twin screw
|
400 mm
|
180–250 kg/h
|
3–8 m/min
|
37 kW
|
|
SJSZ80/156
|
Conical twin screw
|
600 mm
|
350–400 kg/h
|
3–7 m/min
|
55 kW
|
Why Customers Choose Our PVC Ceiling Machine
One line, multiple products – ceiling, wall panel, corner profile by mold change
Cost-saving formula – high calcium loading without losing surface quality
Fast commissioning – engineer installation + operator training included
Low scrap rate – uniform plasticizing and accurate sizing
Turnkey support – formula, layout drawing, spare parts, after-sales
Frequently Asked Questions (FAQ)
Q1: What types of window profiles can this machine produce? Can one machine make both ceiling and wall panels?
A: Yes. Change the die and calibration mold; no need to buy a second line.
Q2: What surface designs are possible?
A: Solid color, two-color print, UV coating, hot-stamp wood/marble, and PVC film lamination.
Q3: What is the normal panel thickness?
A: 5–10 mm for ceilings; wall panels can be thicker if required.
Q4: Can recycled PVC be used?
A: Yes, with proper grinding and formula adjustment.
Q5: Do you provide formula and installation?
A: Yes. We supply PVC formula, machine installation, commissioning, and worker training.
Q6: How long to start mass production?
A: Usually 7–10 days after machine arrival with our engineer on site.
Ready to Start Producing High-Quality Window Profiles?
Contact our team today for a customized quotation, technical drawing package, or online machine demonstration.
