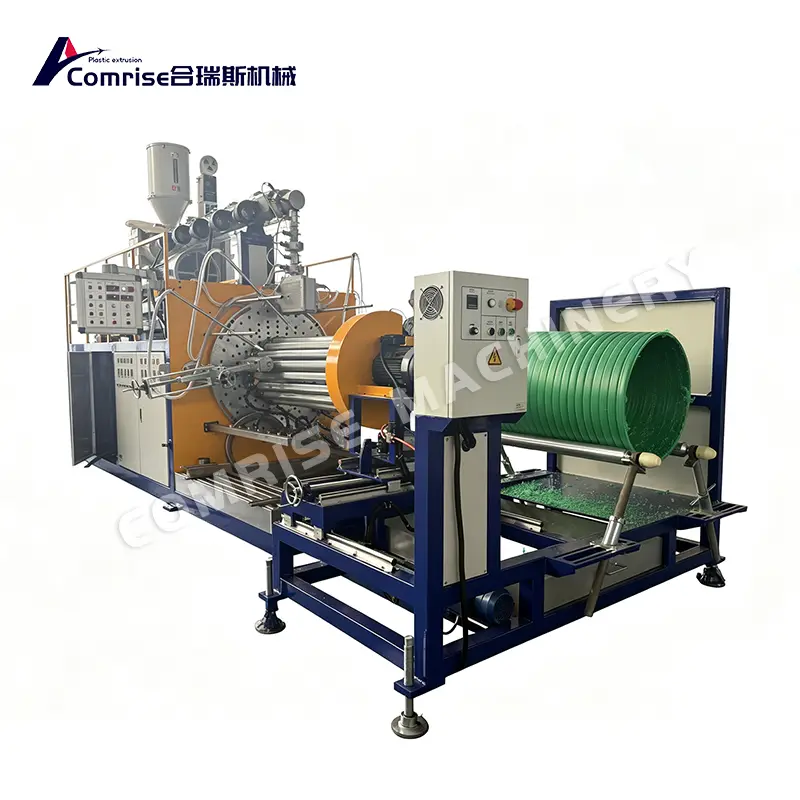

Comrise, a professional plastic extrusion machinery manufacturer with over 20 years of experience, offers the advanced HDPE Large-Diameter Winding Pipe Machine. Designed for heavy-duty infrastructure projects, it produces spiral-wound pipes with diameters ranging from 200 -5000 mm.
Technical Advantages
High-Speed Precision Winding
Turbine Winding Head: Dual servo motors achieve speeds of up to 15-25 rpm, ensuring uniform wall thickness with a tolerance of ±0.3 mm.
Adaptive Tension Control: Real-time monitoring and adjustment of web tension during the winding process to prevent deformation.
Intelligent Extrusion System
High efficency single Screws: 38:1 aspect ratio, optimized for HDPE/PP, with a melting capacity of 400-800 kg/h.
Energy and Resource Efficiency
Regenerative drive recovers 25% of braking energy.
The HDPE Large-Diameter Winding Pipe Machine has a scrap rate of less than 1.5%.
Product Features
Modular Construction: Quick die changes enable production of pipes from DN 200-5000 mm in just 30 minutes.
Multi-Layer Capability: Optional co-extrusion process suitable for three-layer pipes.
Safety Systems: Emergency stop, thermal overload protection, and gas detection alarm.
FAQs
Q1: Can the HDPE Large-Diameter Winding Pipe Machine process recycled HDPE?
Yes. The dedicated screw structure can process 30% to 100% post-consumer recycled material without loss of output.
Q2: How complex is daily maintenance?
Daily: 30-minute cleaning.
Quarterly: Gearbox lubrication.
Q3: What is the pipe lifespan?
According to ISO 9080 testing protocols, the service life is over 50 years.
