CFRTP/TCP Composite Pipe Production Line

For winding material choose?

Comrise factory’s durable CFRTP/TCP Composite Pipe Production Line supports multiple types of reinforcement prepreg tapes, including glass fiber, basalt fiber, aramid fiber, PET and steel cord, to manufacture high-performance CFRTP and TCP composite pipes. To help overseas buyers calculate input-output ratio easily, we provide complete raw material cost data for reference. With diversified material options and transparent cost details, this production line fully adapts to different production demands and budget plans for composite pipe manufacturing projects worldwide.

For inner layer material choose?

Our CFRTP/TCP Composite Pipe Production Line works with mainstream inner pipe materials such as PERT, PE and PVDF. We select raw materials strictly according to pipe applications and temperature resistance standards: 60°C pipes adopt double-layer HDPE; 82°C pipes use PERT-II as inner layer, continuous fiber PE pre-tensioning tape as reinforcement and HDPE as outer layer; 110°C high-temperature pipes take PVDF for inner layer, matched with the same reinforced and outer layers for long-term stable operation.

What is the standard sizes?

Our CFRTP/TCP Composite Pipe Production Line features a full range of internationally standard pipe diameters: DN50 (dn50), DN65 (dn63), DN80 (dn75/dn90), DN100 (dn110), DN150 (dn160), DN200 (dn200) and DN250 (dn250). All specifications comply with global industrial norms and match standard pipe fittings. This wide diameter coverage makes the equipment ideal for municipal, chemical, oil and gas pipeline projects across different regions.

How to configure winding units according to pressure level requirements?

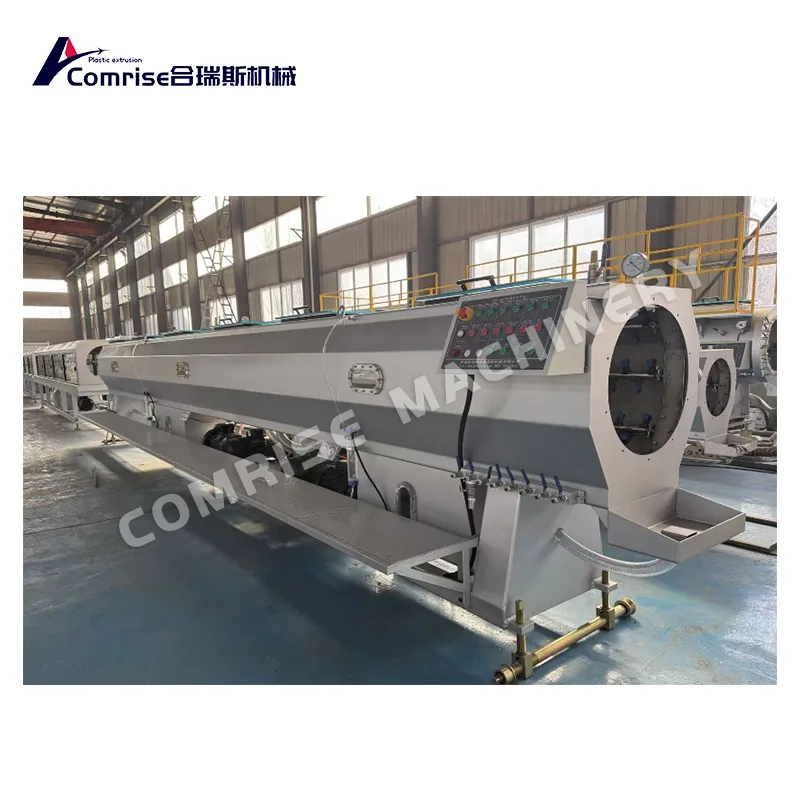

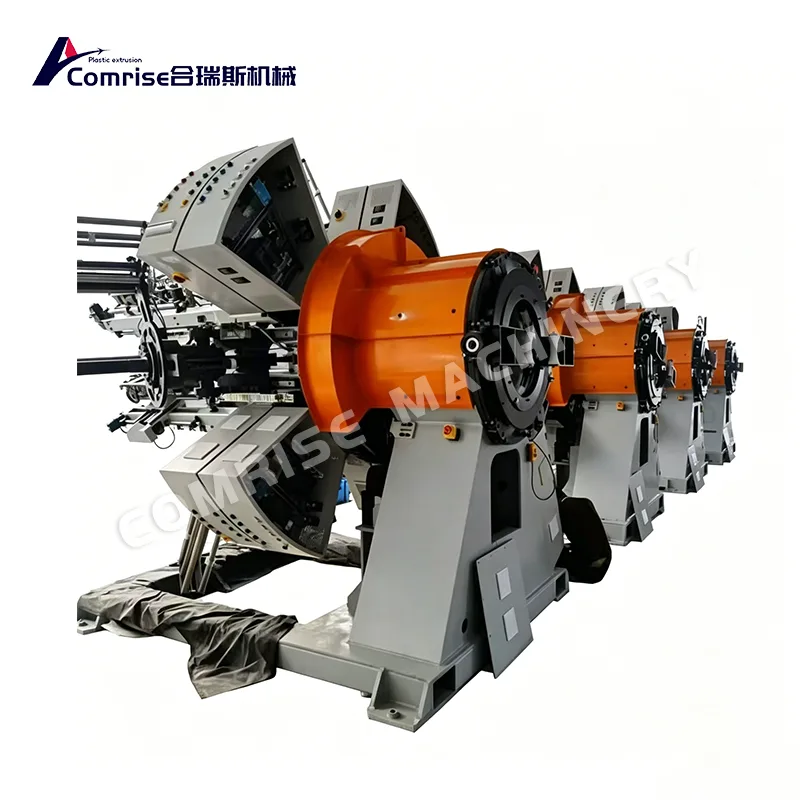

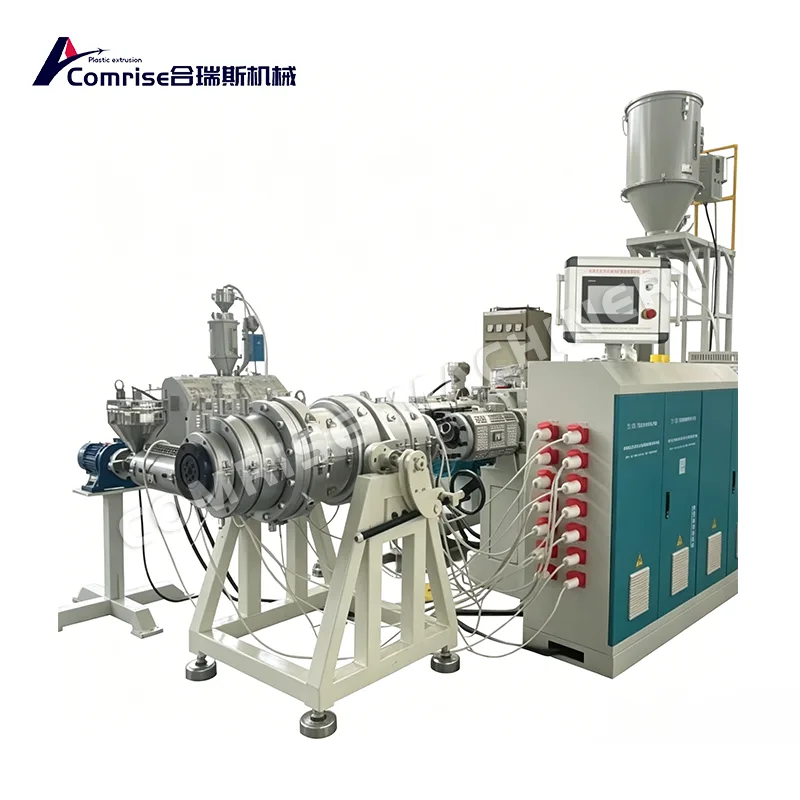

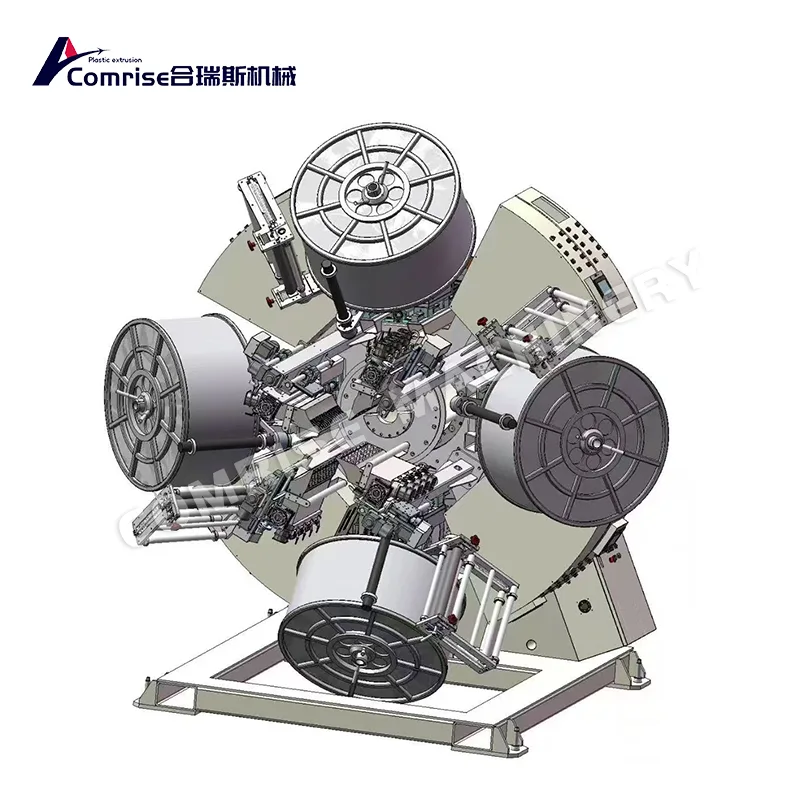

To meet various pressure rating requirements, our CFRTP/TCP Composite Pipe Production Line can be configured with 2 to 10 sets of glass fiber tape winding machines, and each machine can complete two winding layers. This flexible configuration accurately adjusts pipe pressure resistance to meet customized standards. For all kinds of high-pressure pipeline projects, the adjustable winding system of our CFRTP/TCP Composite Pipe Production Line ensures stable pipe quality, high production efficiency and low operating costs for global manufacturers.

Customer common questions and answers:

Q: What pipe sizes can your machine produce?

A: It can produce pipes ranging from 2 inch to 10 inch.

Q: Can the system manufacture both bonded and non-bonded RTP lines?

A: Yes, it supports both types.

Q: What pressure ratings are achievable for each pipe size?

A: Pressure rating is fully customized from 2 MPa up to 10 MPa. More winding machines create more reinforcement layers, so the pressure resistance can be increased by adding extra winding units.

Q: What is the maximum temperature you can achieve?

A: The maximum working temperature depends on your specific application.

Q: What is the actual production speed for each pipe size?

A: 2 inch pipe: 1.2–1.5 m/min; 10 inch pipe: 0.6–0.8 m/min.

Q: What is the annual production capacity for each size?

A: The production capacity is calculated based on an extrusion output of 600 kg per hour.

Q: Can the same machine produce different RTP types such as HDPE, PEX, PA and PVDF?

A: It mainly produces reinforced HDPE pipes. PEX is applicable for small sizes, while PA and PVDF are not commonly used.

Q: What is required to switch between different materials?

A: The pipe adopts a three-layer structure: inner thermoplastic layer (PE80, PE100 etc.), middle aramid or glass fiber reinforced layer and outer anti-aging HDPE layer. The pipes own high flexibility and excellent pressure resistance, working for oil, natural gas and chemical delivery at -42°C to 65°C.

Q: Which standards does your equipment comply with, such as API 15S and ISO?

A: Our products meet both API 15S and ISO standards.

Q: What quality control systems are integrated into the machine?

A: There is no dedicated built-in QC system.

Q: What is the automation level of the machine?

A: It is fully high automatic.

Q: How much factory space is required for installation?

A: It depends on pressure rating and the number of winding machines. A line with 2 winding machines needs a workshop of 60–80 meters in length. A line equipped with 8 winding machines requires 140–160 meters. We can provide detailed machine layout after confirmation.
