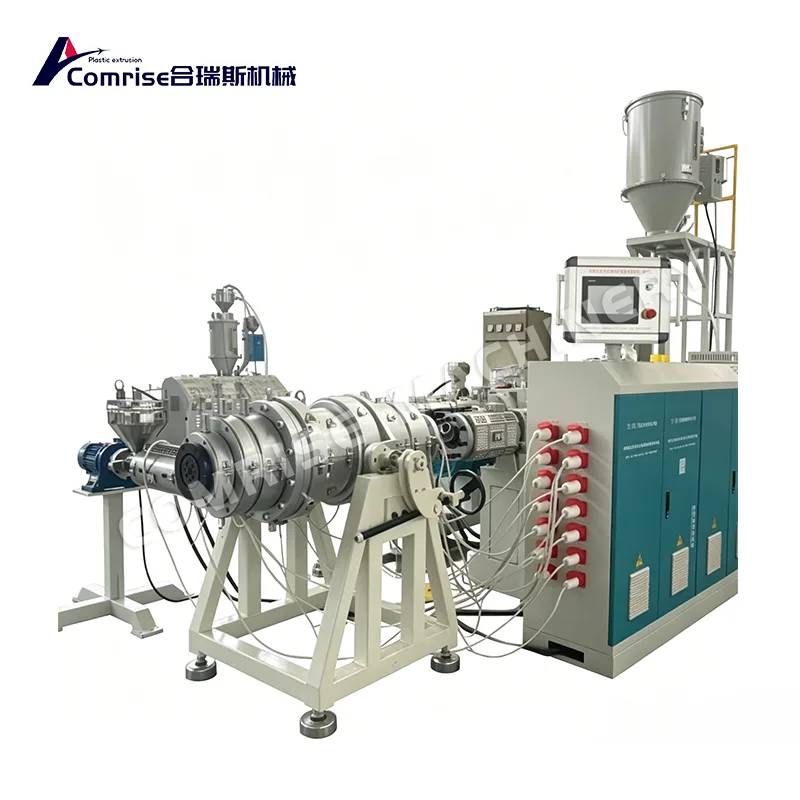

Comrise manufacture high quality High Pressure RTP Twisted Composite Pipe Machine uses the thermoplastic reinforced RTP pipe production line to produce multi-layer pipes. The inner layer is made of thermoplastic materials, which are wound through specific corners. The middle layer of the pipe production machine can use aramid fiber, polyester fiber, glass fiber and steel wire, and the outer layer is covered with anti-aging and ultraviolet HDPE layer
RTP pipes are flexible and seamless pipes that can withstand high pressure without leaking. RTP pipes produced by the Comrise high quality High Pressure RTP Twisted Composite Pipe Machine can be used at temperatures and pressures ranging from -42℃ to 65 ℃

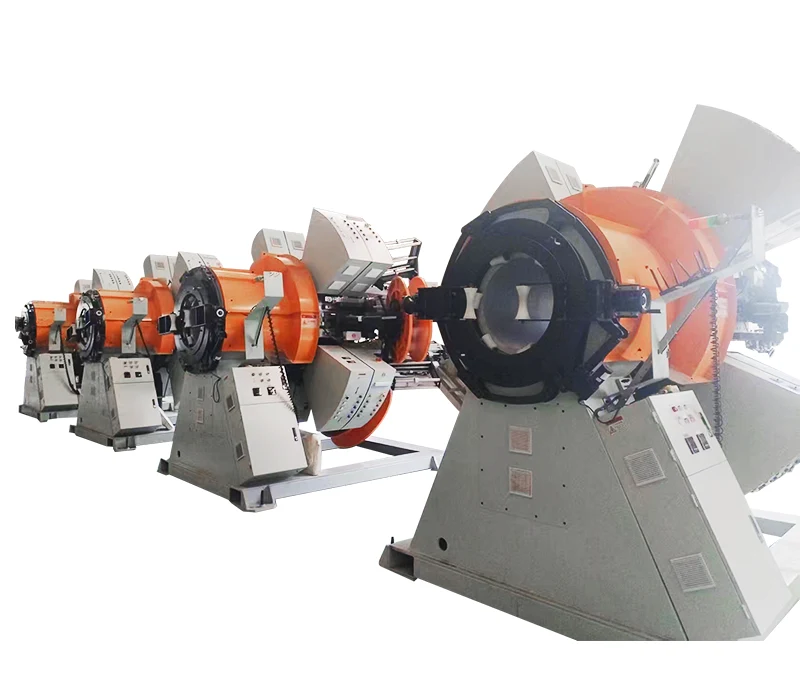

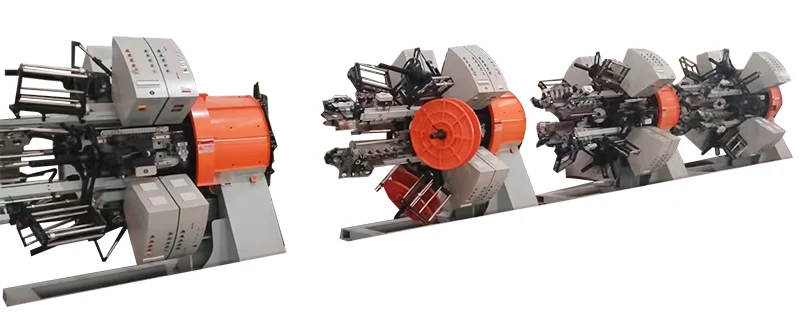

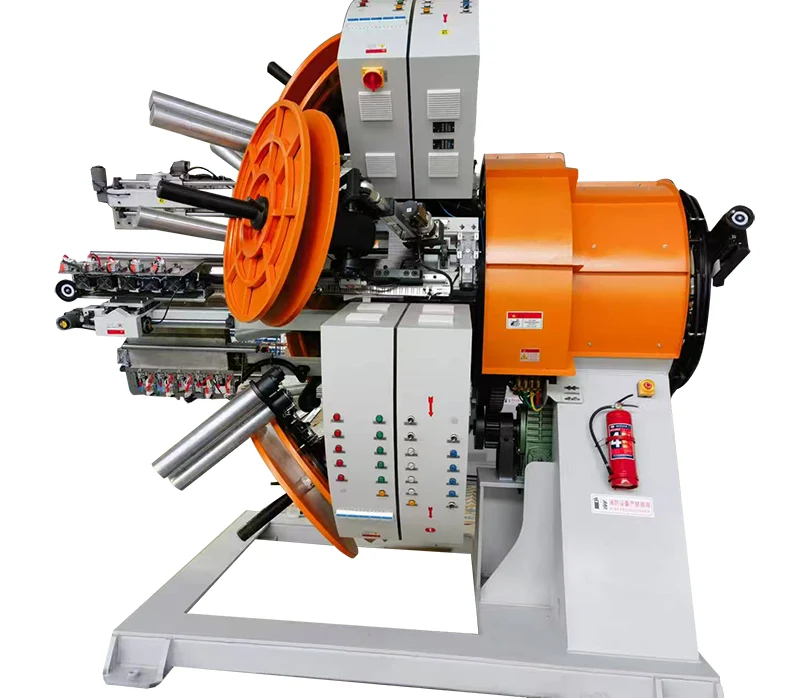

The High Pressure RTP Twisted Composite Pipe Machine consists of three parts: the first part produces inner HDPE pipes, and the second part is a wrapping machine that wraps glass fibers around the PE pipes.The diameter range of the produced pipes is 50-315mm, and the winding range of the winding machine is 50-200mm. Now we have broken through the technical barriers and achieved smooth and efficient operation of the machine
Application of RTP Pipe Production Line
Petrochemical industry
RTP pipes are suitable for the transportation of crude oil, refined oil, water, and chemicals. Specially suitable for the transportation of high sulfur media such as oil, natural gas, and water, as well as gathering and transportation pipelines, terminal oil transportation pipelines, and emergency response pipelines in oil fields.
Chemical Industry
RTP pipes are used in acid, alkali, salt manufacturing, fine chemical, fertilizer, pesticide, pharmaceutical and other industries as process pipelines and discharge pipelines for transporting medium and low-temperature corrosive substances.
Salt mine halogen conveying pipeline, mining, gathering pipeline, coal washing water conveying pipeline, underground fire sprinkler pipeline, underground emulsion pipeline, underground horizontal or medium low pressure drainage pipeline, coal powder conveying pipeline, coal preparation plant coal slurry conveying pipeline, gas layer pipeline, metallurgical ore powder filling and conveying pipeline, tailings and concentrate conveying pipeline, underground filling.
