Small Diameter PVC Corrugated Pipe Machine

The Small diameter PVC Corrugated Pipe Machine offered by Comrise, a professional manufacturer from China, is designed for manufacturers who demand consistent quality, maximum uptime, and competitive production costs. Built with premium components and refined through decades of extrusion expertise, this machine delivers stable 24/7 operation with minimal scrap rates. Whether you produce pipes for electrical conduit, land drainage, or ventilation ducts, this line offers the reliability and output that keep your customers satisfied and your profits growing.

Key Component Performance Advantages

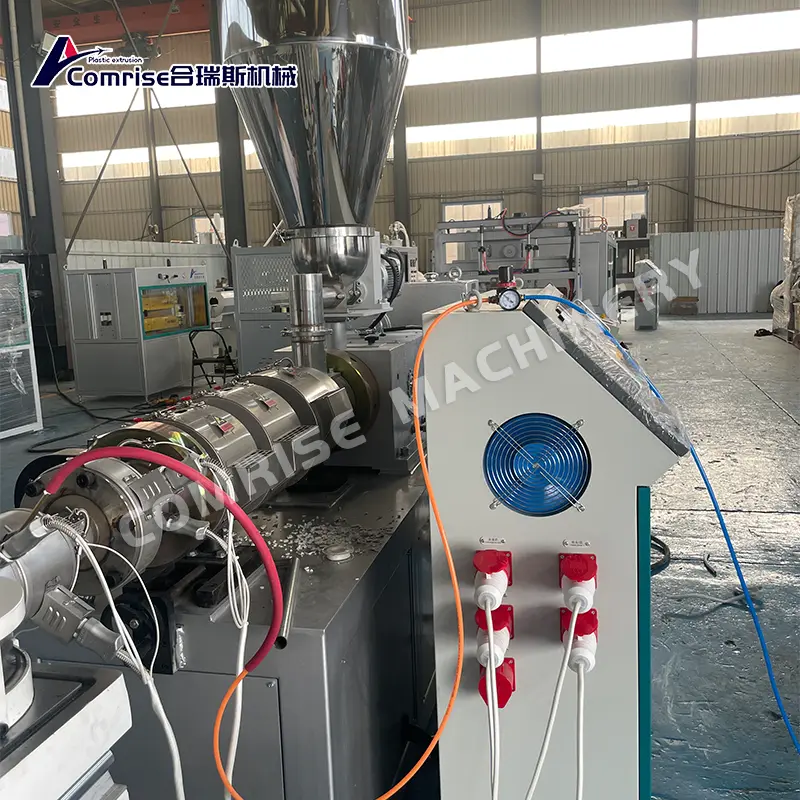

1.High-Torque Single-Screw Extruder

Optimized Screw Geometry: Specially designed barrier screw ensures excellent plastication and uniform melt temperature at high speeds.
Hardened Bimetallic Barrel: Wear-resistant lining extends service life by 3–5 times compared to standard nitrided barrels.
Servo-Driven Main Motor: Energy-efficient drive reduces power consumption by up to 20% while maintaining precise speed control.

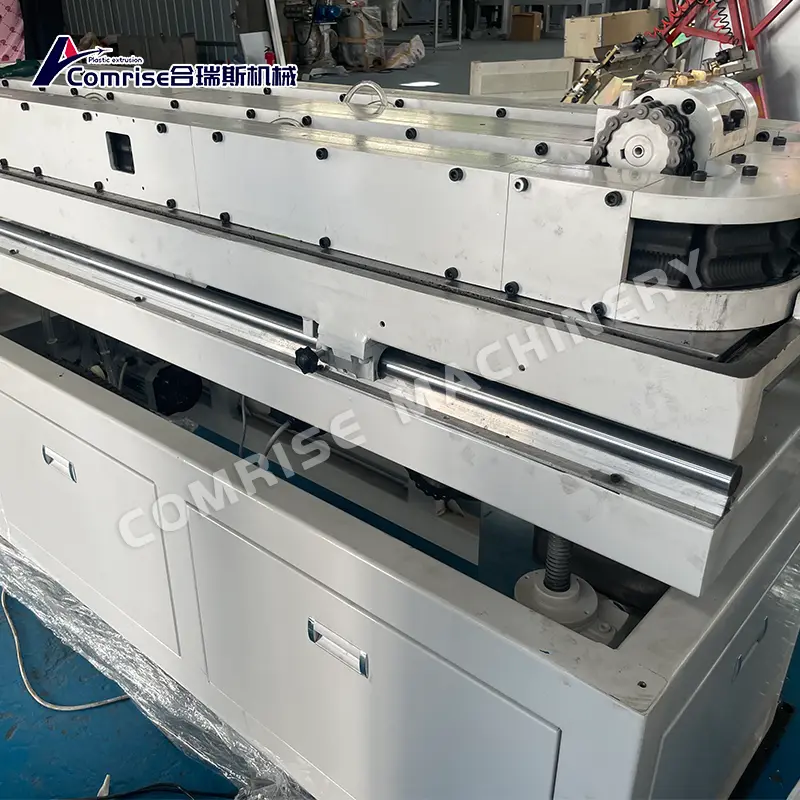

2.Corrugator Molding Unit

Continuous Chain-Type Molds: Precision-machined aluminum mold blocks guarantee consistent corrugation shape and smooth inner bore.
Vacuum Forming System: Small diameter PVC Corrugated Pipe Machine has multi-point vacuum control ensures complete material filling into mold cavities, eliminating thin spots.
Automatic Lubrication: Centralized grease system reduces maintenance frequency and extends chain life.

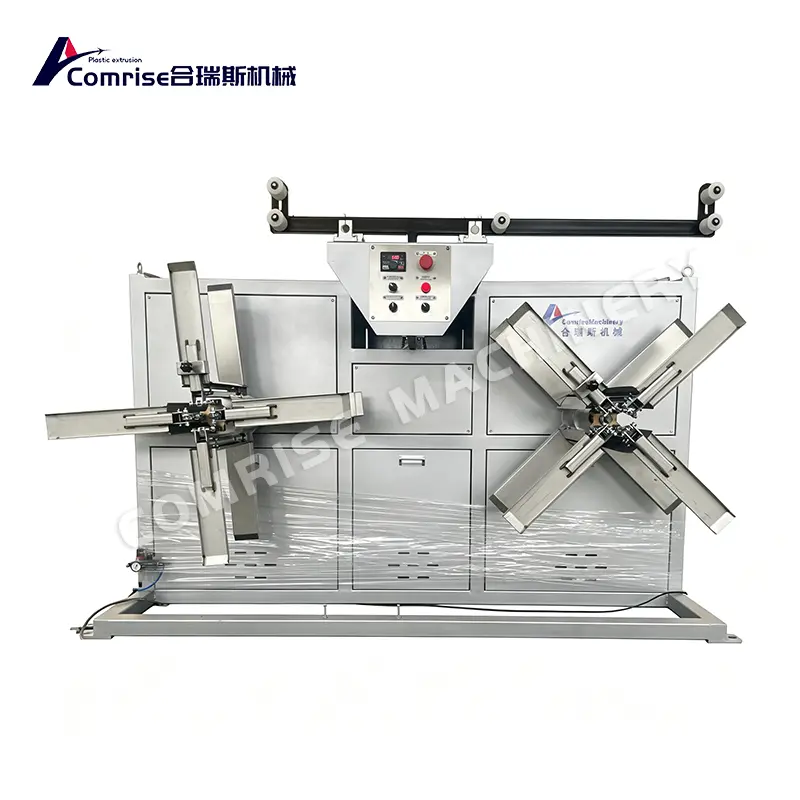

3. Dual station winder design

Uninterrupted Production: While one station is winding, the operator can unload the finished coil from the other station without stopping the line.
Quick-Change Reels: Tool-less reel locking mechanism reduces changeover time to under 60 seconds.

Machine Specifications & Performance Table

Why Customers Choose Our Machine

Small diameter PVC Corrugated Pipe Machine:Proven Stability:Continuous 72-hour factory test run before shipment ensures

Low Maintenance:Premium bearings, seals, and wear parts reduce unscheduled downtime

Easy Operation Recipe-based PLC stores parameters for up to 50 pipe sizes – recall and run

Global Support Spare parts stocked in regional warehouses; remote troubleshooting available 24/7.

FAQ

1. What pipe diameters can this machine produce?

The machine is designed for PVC corrugated pipes with diameters from Ø16 mm to Ø63 mm.

2. What is the production speed?

The maximum production speed is 12–25 m/min, depending on pipe diameter, wall thickness, material, and production conditions.

3. What materials can be used?

The machine is primarily designed for PVC corrugated pipe production. Material formulations can be adjusted according to the required pipe properties.

4. Can the machine produce different pipe sizes?

Yes. Different pipe diameters can be produced by changing the corresponding molds and adjusting the production parameters.

5. How long does mold changing take?

The standard mold change time is ≤20 minutes, depending on the pipe specification and operating conditions.

6. Can the production line be customized?

Yes. Comrise can customize the machine configuration according to pipe size, production capacity, voltage, and other production requirements.
