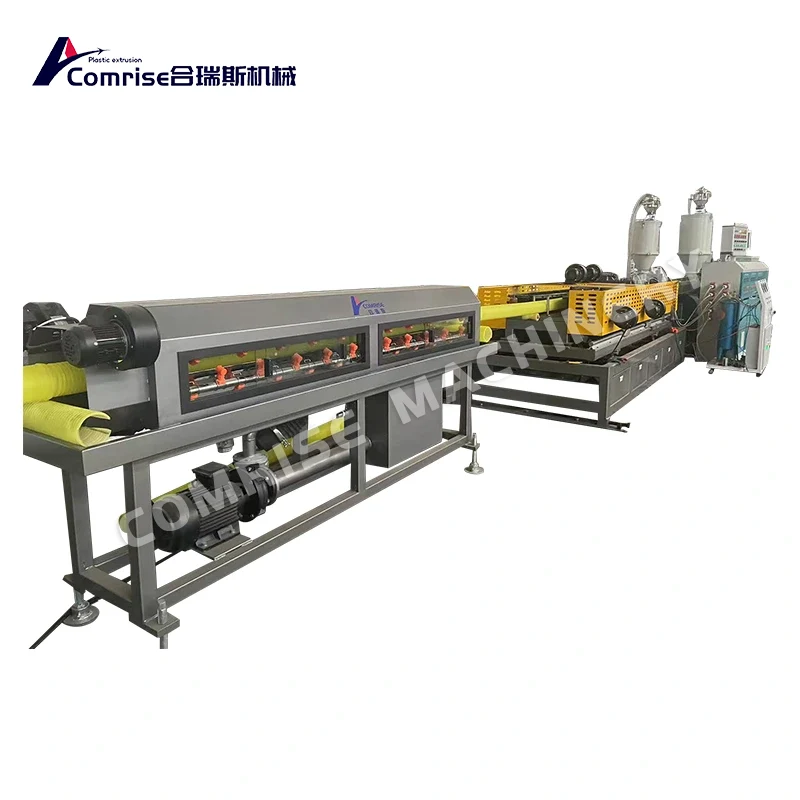

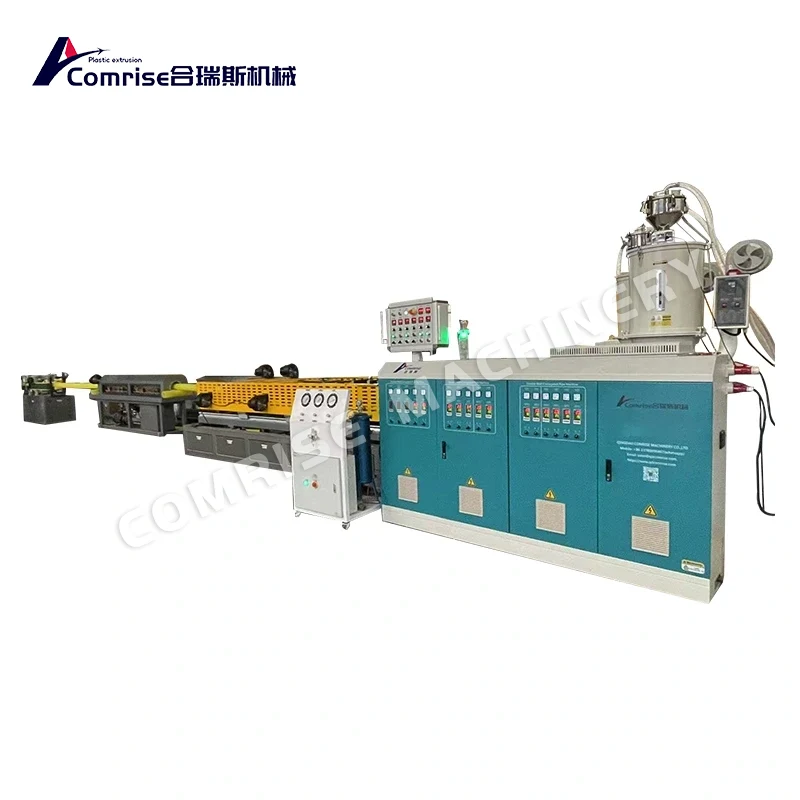

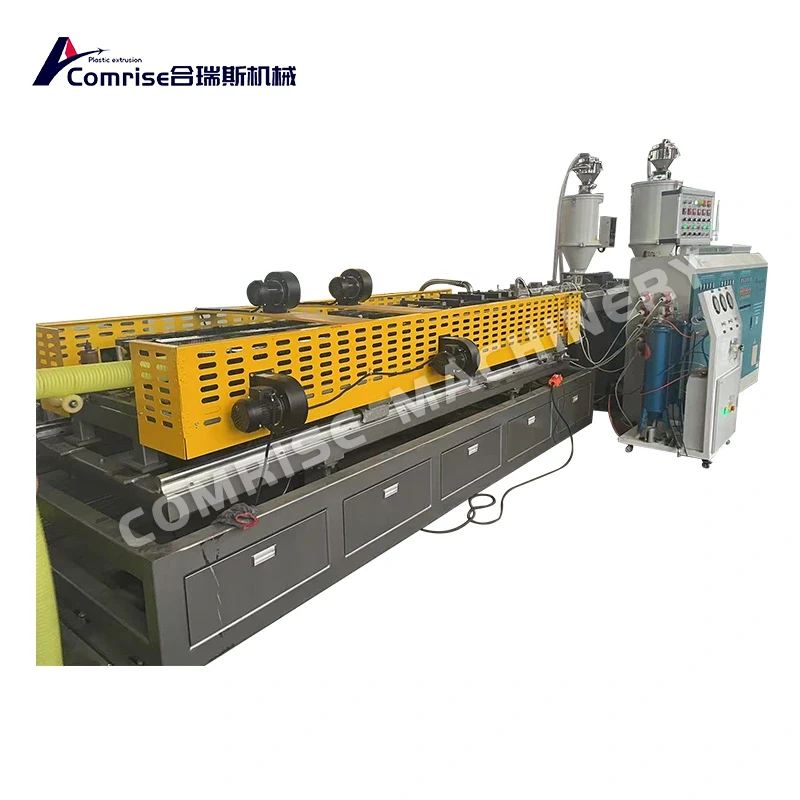

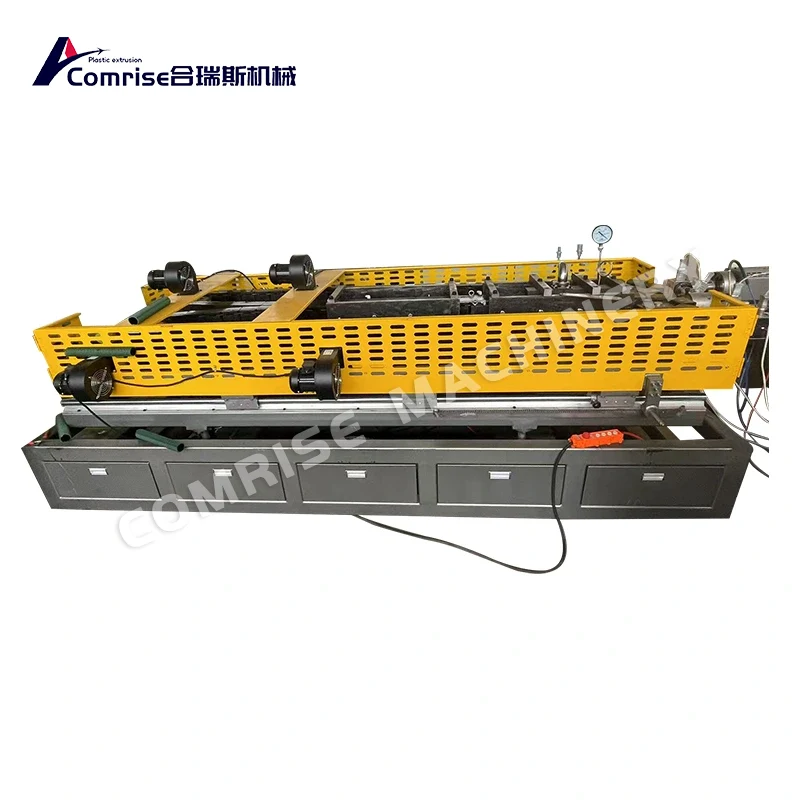

DWC Corrugated Pipe Extruder Machine

DWC Corrugated Pipe extruder machine is manufactured by Comrise Machinery Co., Ltd. It adopts corrugated outer wall and smooth inner wall design, which can be formed by one-time welding extrusion, significantly improving the annular stiffness of the pipe,Under the same outer diameter, corrugated pipes can save over 30% on raw materials while maintaining the pipe's ring stiffness.

DWC Corrugated Pipe extruder machine is a complete set of equipment used for producing double wall corrugated pipes made of HDPE, PVC, and other materials.

It has the following main technical features

Modular Design

It adopts a segmented module structure, including independent units such as extruder, molding machine, cooling system, traction machine, and cutting machine. Each module can be flexibly configured to meet different specifications of product production needs.

Double-layer Co-extrusion Technology

DWC Corrugated Pipe extruder machine equipped with two parallel extruders to achieve simultaneous co-extrusion: the inner layer uses a smooth extrusion die to ensure the smoothness of the inner wall of the pipe; the outer layer forms a ring-shaped reinforcement structure through a corrugation molding device.

Intelligent Control System

Integrated PLC and touch screen human-machine interface can realize temperature zone control (±1 accuracy), speed linkage adjustment (0.5% synchronization error) and fault self-diagnosis functions.

Vacuum Setting Process

Using a multi-stage vacuum cooling shaping box, it uses negative pressure adsorption to quickly set the outer corrugation, maintaining stable geometric dimensions (roundness deviation 0.5%).

Energy-saving and environmentally friendly features

Equipped with a heat energy recovery system that can use the residual heat from extrusion for raw material preheating; a closed-loop water cooling system achieves a cooling water circulation utilization rate of 95%.DWC Corrugated Pipe extruder machine supplied by Comrise Machinery Co., Ltd, with strong technical advantages and rich experience in production and installation is your best choice to expand your business. Welcome to inquiry and visit the factory.
