Small Diameter PVC Twin Pipes Machine

Comrise factory’s small diameter PVC twin pipes machine is specifically engineered for manufacturers who demand high output without sacrificing floor space. By producing two pipes at once from a single extruder, this system effectively doubles your production capacity compared to standard single-line setups. Combined with our innovative traction-cutting integrated machine, you gain a compact, streamlined production solution that our clients consistently praise for its reliability and space efficiency.

Key Performance by Component

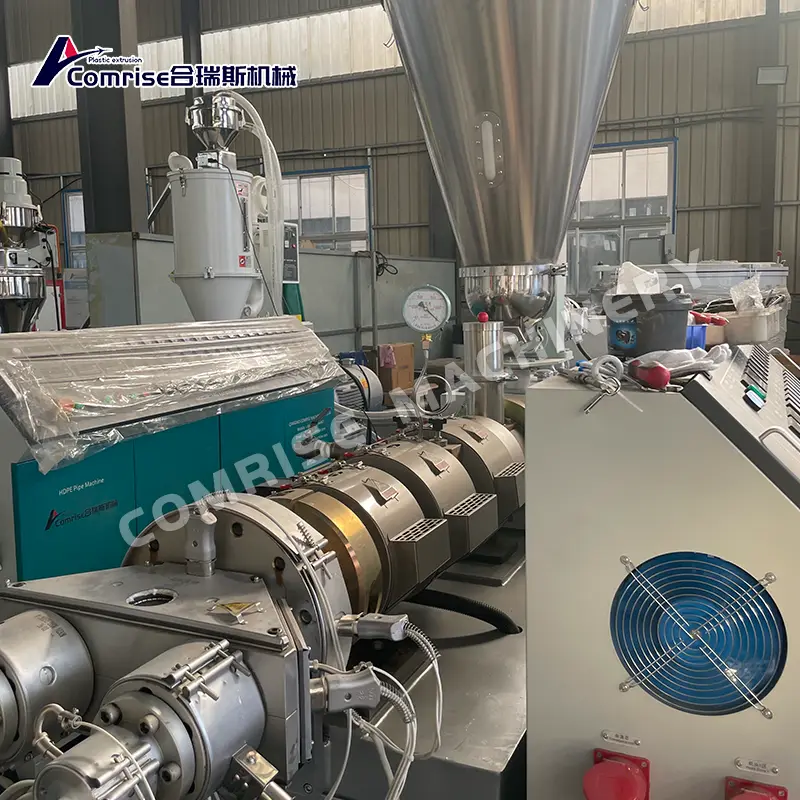

1. High-Efficiency Twin-Screw Extruder

Dual Output Design:A specially designed extrusion die allows simultaneous forming of two identical PVC pipes, boosting hourly output significantly.
Precise Temperature Control:Multi-zone PID heating ensures uniform melt consistency for both pipe strands, reducing material waste.
Energy-Saving Motor:High-torque, low-energy consumption drive system keeps operating costs low.

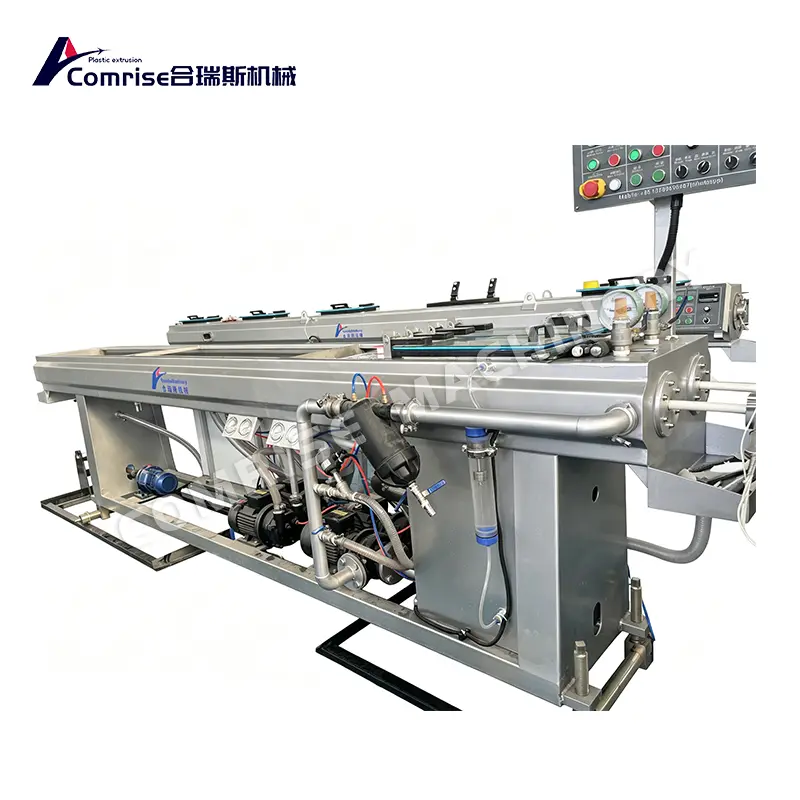

2. Calibration and Cooling Tank

Double Vacuum Calibration:Two independent vacuum calibration sleeves ensure accurate outer diameter and roundness for each pipe.
Spray Cooling System:Extended cooling length with multiple spray nozzles guarantees thorough solidification even at higher line speeds.

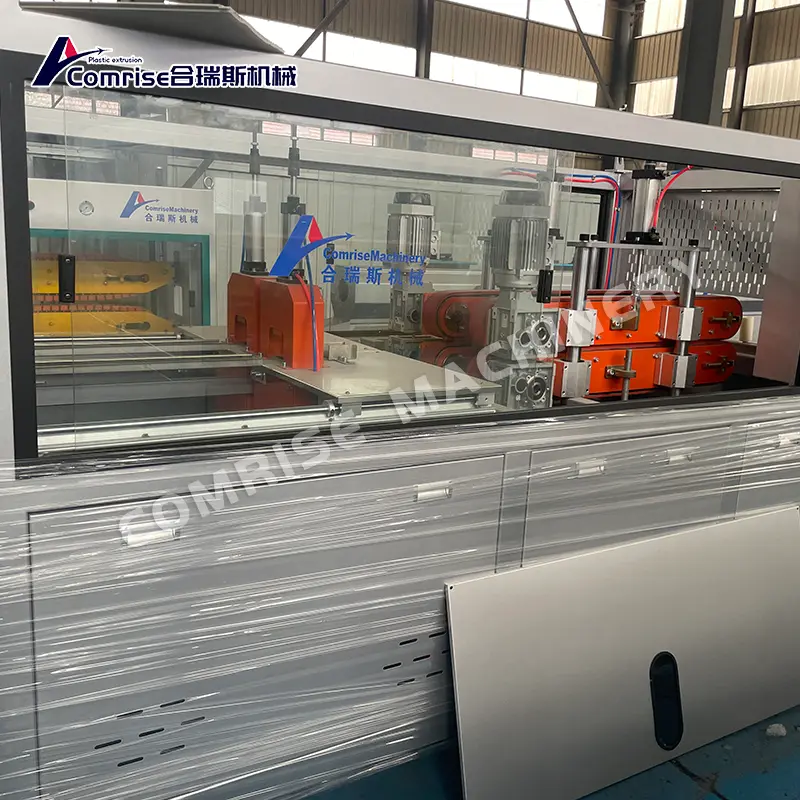

3. Traction and Cutting Integrated Machine (Customer Favorite)

Space-Saving Design on small diameter PVC twin pipes machine :Combines caterpillar haul-off and cutter into one compact unit, saving up to 20% floor space compared to separate machines.
Synchronized Speed Control:Servo-driven traction matches the extrusion speed precisely, preventing pipe deformation or scratching.

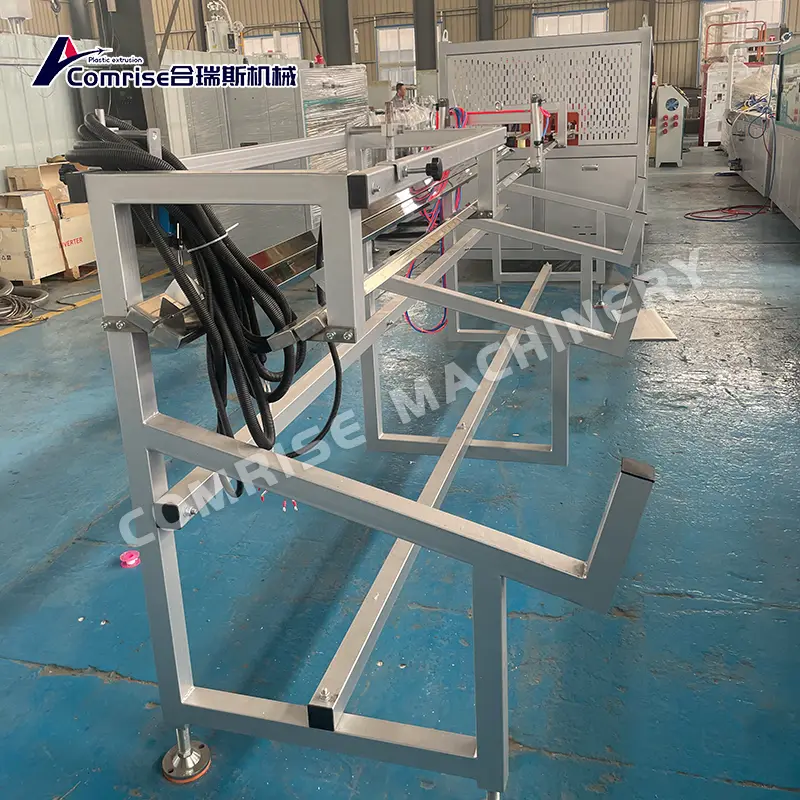

4. Automatic Stacking and Collection System

Gentle Handling:Pneumatic arms transfer finished pipes to a collection table without surface damage.
Customizable Lengths:Programmable counter triggers automatic cutting at preset lengths (standard: 4m / 6m).

Why Customers Choose This Line-Advantage of our line

Small diameter PVC twin pipes machine produces 2 pipes at once:Doubles your output per hour – ideal for high-volume orders

Integrated haul-off + cutter:Reduces factory clutter; simplifies maintenance

Quick size changeover:Switch between Ø16mm – Ø50mm in under 30 minutes

Low scrap rate;Stable extrusion and synchronized cutting minimize waste

Customer Feedback (Asia)

We replaced two old single-line machines with this twin-pipe line. Not only did our output increase by 80%, but the integrated traction-cutter saved so much space that we could install another line in the same area. The cutting quality is excellent – no rework needed."

— Production Manager of customer’s company

Ready to have small diameter PVC twin pipes machine?

Contact our team today for a customized quotation or to schedule an online demo.
