20-110mm PVC Pipe Machine

Buy quality 20-110mm PVC pipe machine from leading China manufacturer Comrise.

Key Selling Points

One Machine, Multiple Applications: Quickly switch between producing pressure-rated water pipes, sewer/drainage pipes, and non-pressure electrical conduit pipes, maximizing your factory utilization.

Energy-Saving Design: The high-efficiency conical twin-screw extruder and servo-driven haul-off system reduce overall energy consumption by up to 20-30% compared to conventional models.

Cost-Effective Flexibility: 20-110mm PVC pipe machine avoid the need for multiple dedicated machines. A single investment covers your entire small-to-medium diameter PVC pipe portfolio.

Factory-Direct Quality:We provide complete turnkey solutions, including installation supervision and operator training, ensuring you get the best ROI.

Component Performance & Energy-Saving Advantages

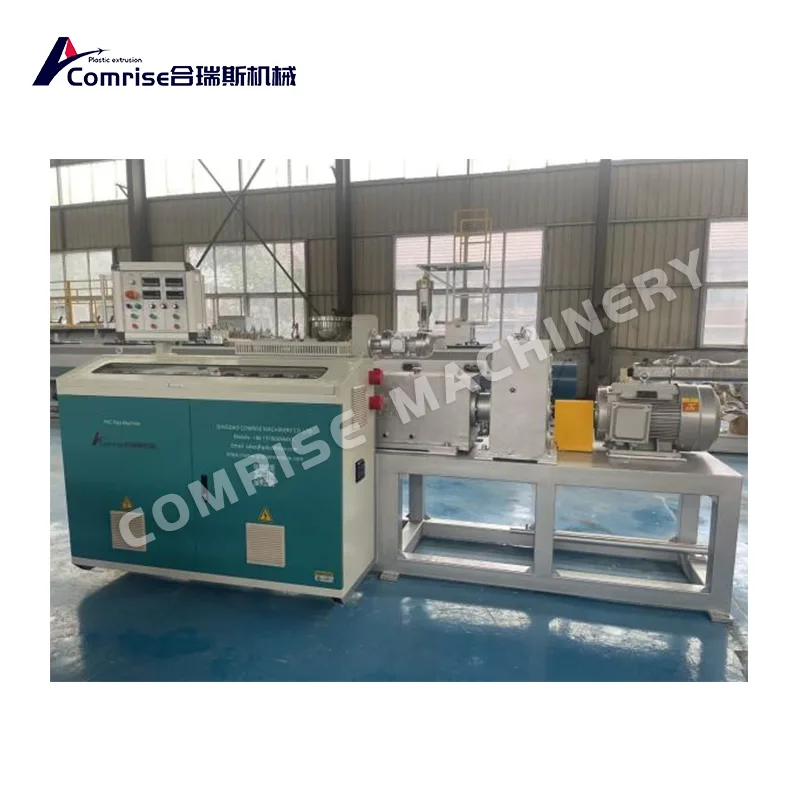

1. High-Efficiency Conical Twin-Screw Extruder

The heart of the line is the SJZ65/132 conical twin-screw extruder, specifically designed for processing PVC powder formulations.

Durability:Bimetallic barrels and nitrided screws ensure long service life even when processing rigid PVC compounds with calcium carbonate fillers.

2. Multi-Purpose Spiral Die Head

The die head is engineered for quick changeovers between different pipe standards. Spiral Mandrel Distributor:Ensures uniform melt pressure distribution around the circumference, eliminating weld lines and guaranteeing consistent wall thickness for high-pressure applications.

Material: Made from high-grade alloy steel with chrome plating, resistant to PVC corrosion

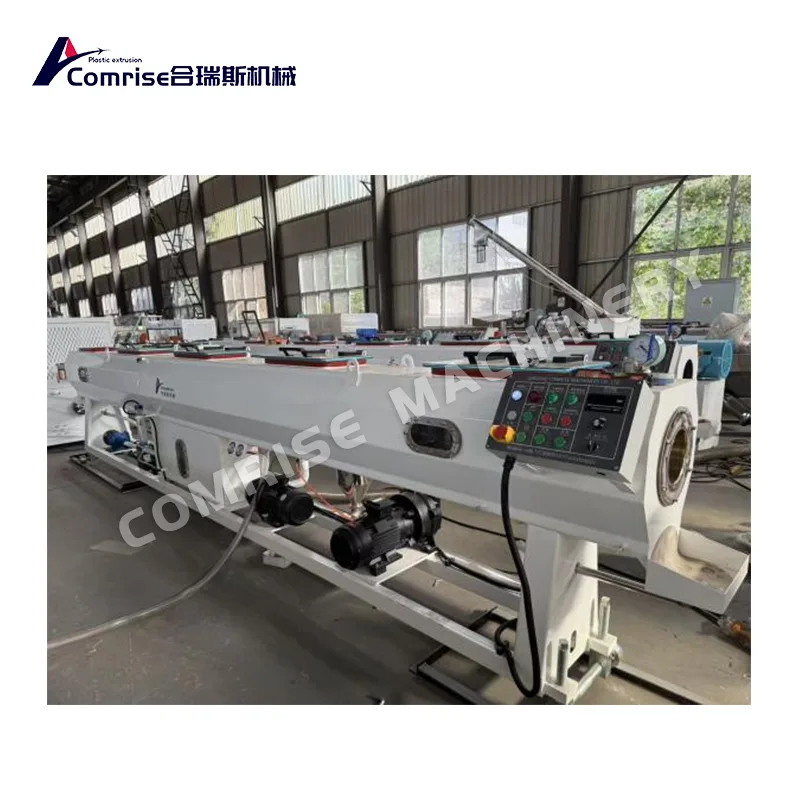

3. Vacuum Calibration & Cooling System

Stainless Steel Vacuum Tank (SUS304): Features a multi-stage spray cooling system for precise diameter calibration and rapid heat removal. This is crucial for maintaining pipe roundness in drainage and conduit applications

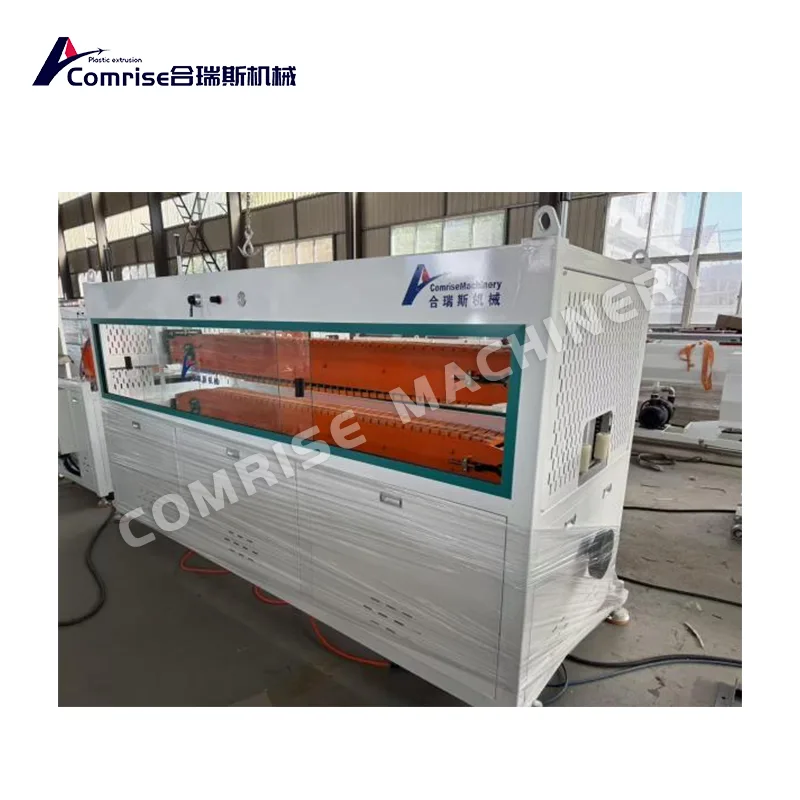

4. Servo-Driven Downstream Equipment

Caterpillar Haul-off: 20-110mm PVC pipe machine equipped with a servo motor and frequency inverter for precise speed synchronization with the extruder. This prevents slippage and ensures accurate wall thickness control, which is vital for saving raw material costs.

5. Intelligent Control System

The Siemens/Delta-based PLC system is the brain behind the machine's flexibility.

Applications & Cost-Saving Benefits

This versatile line is the ideal solution for pipe manufacturers looking to serve multiple markets without major capital expenditure:

UPVC Water Supply Pipes (Pressure Pipes): Produces pipes with high impact strength and smooth inner walls, meeting ISO 4422 or ASTM D1785 standards.

PVC Drainage & Sewer Pipes (SWR): Ideal for building drainage systems, with excellent chemical resistance and ring stiffness.

PVC Electrical Conduit Pipes: 20-110mm PVC pipe machine produces smooth-walled conduit pipes that protect electrical cables in residential and commercial buildings, compliant with IEC 61386 or UL 651.

Client Cost Savings: By using one machine for three product lines, you save on floor space, labor, and maintenance costs. The energy-efficient design directly lowers your electricity bills, while the quick changeover capability minimizes downtime.

Ready to upgrade to a versatile and energy-saving 20-110mm PVC pipe machine? Contact us today for a detailed quotation and factory test run.
