Labyrinth Drip Irrigation Pipe Machine

Machine features:

1. Comrise's customized Labyrinth Drip Irrigation Pipe Machine using different or equivalent models of plastic extruders for simultaneous extrusion, and adopting variable frequency speed control to control the extrusion amount, ensuring stable and reliable operation of the production process, flexible adjustment, and reducing energy consumption.

2. The forming die of double-layer composite drip irrigation tape adopts double-layer co extrusion hot runner center screw feeding, and uses cast aluminum air ring pre cooling. It is measured and controlled by far-infrared diameter measuring device (with built-in air pump, no external air source required) to ensure high strength and uniform thickness of the film tube.

3. The drip irrigation tape is formed using a separate vacuum suction device, ultimately achieving the standard specifications of the drip irrigation tape.

4. After forming, the air is cooled and at the same time, it enters the stainless steel water tank for circulating water forming water cooling.

5. The winding machine adopts a three station center lift collection roller and is equipped with a far-infrared electronic counting device to ensure accurate meter counting

Technologies used in the production machine process

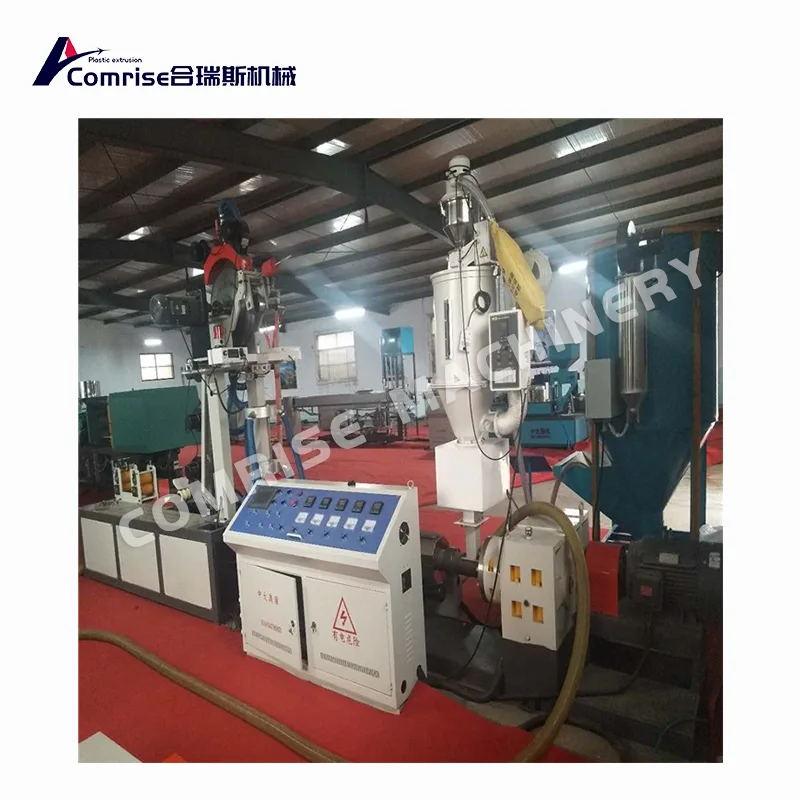

1. Comrise uses plastic extruders of different or equivalent models for simultaneous extrusion, and adopts variable frequency speed control to control the extrusion volume, ensuring stable and reliable operation of the production process and reducing energy consumption.

2. The extruder screw and barrel are both forged, tempered, and nitrided with 38CrMoAlA. The surface of the screw is sprayed with hard double alloy again to improve its hardness and extend its service life. At the same time, the structure of the screw is a new type of structure, especially suitable for PE recycled materials, with better plasticizing effect.

3. The forming die of double-layer composite drip irrigation tape adopts double-layer co extrusion hot runner center screw feeding, and uses cast aluminum air ring pre cooling. It is measured and controlled by far-infrared diameter measuring device (with built-in air pump, no external air source required) to ensure high strength and uniform thickness of the film tube.

4. The drip irrigation tape is formed using a separate vacuum suction device, ultimately achieving the standard specifications of the drip irrigation tape.

5. After forming, the air is cooled and at the same time, it enters the stainless steel water tank for circulating water forming water cooling.

6. Drip irrigation tape traction adopts drum traction and variable frequency speed regulation, which facilitates the production line to better adjust operations at the correct time.

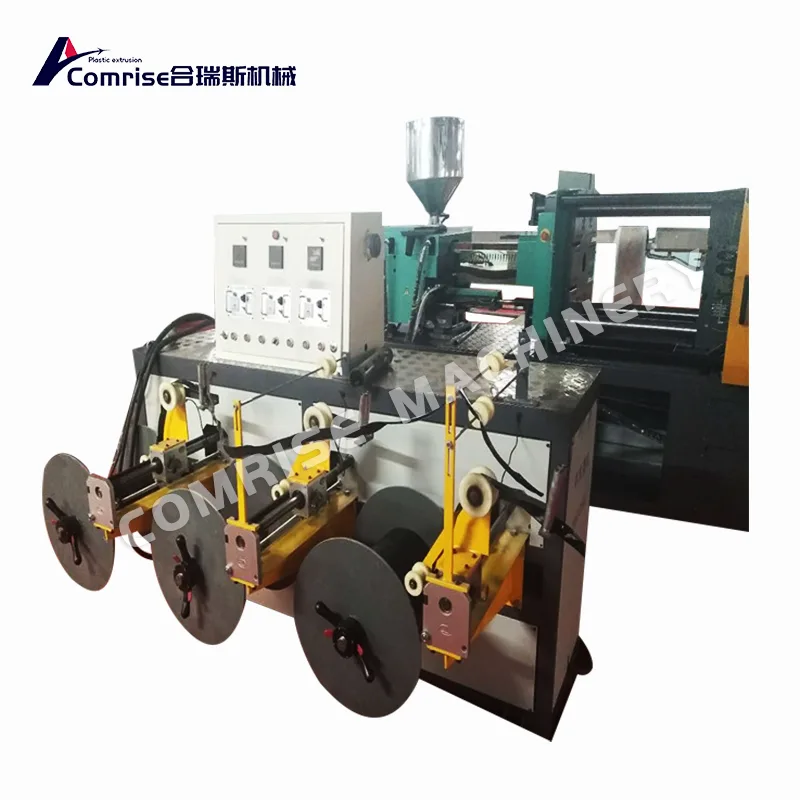

7. The winding machine adopts a three station center lift collection roller and is equipped with a far-infrared electronic counting device to ensure the accuracy of the meter count. It is also equipped with an automatic alarm device, which will automatically alarm and replace the roller when the set length is reached.

8. The entire production equipment adopts intelligent digital electrical control, which is easy to operate.
