PVC Pipe Manufacturing Machine

Comrise durable PVC pipe manufacturing machine is a special complete set of equipment used to produce polyvinyl chloride (PVC) material pipe, its core function is to convert PVC resin and other raw materials through extrusion molding process into PVC pipe that meets specific specifications and performance requirements, widely used in construction, municipal, agriculture, and industrial fields .Here is a detailed explanation of its production process and function.

Production Process: Raw Materials + Additives→ Mixing → Mixing Conveyor Feeding→ Forced Feeding→ Conical twin Screw Extruder →Extrusion Molds →Diameter Reducing Sleeves →Spray Vacuum Tank→ Immersion Cooling Water Tank →Ink Printing Machine →Crawler Tractor→ Knife Cutting Machine →Pipe Stacking Rack.

PVC pipe manufacturing machine Functions

Raw material mixing: PVC stabilizer, plasticizer, antioxidant and other auxiliary materials are added in proportion and in sequence to the high-speed mixer according to the process. After the materials and machinery self-friction, the materials are heated to the set process temperature, and then cooled down to 40-50 degrees in the cold mixer; this way the materials can be added to the extruder hopper.

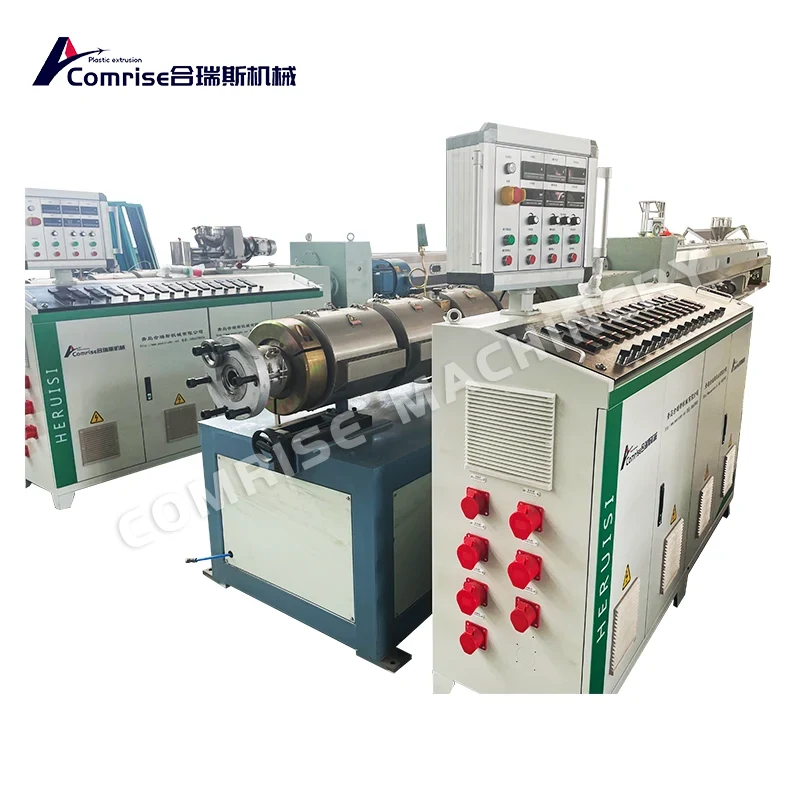

Extruder part: This machine is equipped with a quantitative dosing device to ensure that the extrusion volume matches the dosing volume, ensuring stable extrusion of the product.Extrusion die part: PVC that has been compacted, melted, and homogenized through mixing. Subsequent materials are pushed into the die by a screw. The extrusion die is a crucial component in pipe formation.

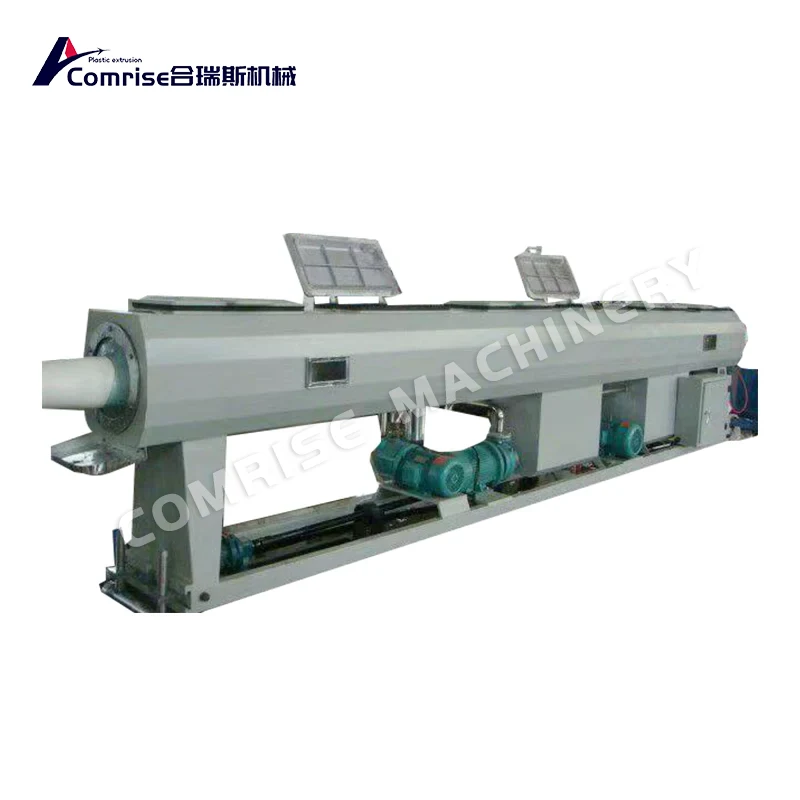

Vacuum Setting Water Tank for Pipe Shaping and Cooling, Vacuum Setting Water Tank Equipped with Vacuum System and Water Circulation System for Shaping and Cooling, Stainless Steel Tank Body, Circulating Water Spray Cooling, Vacuum Setting Water Tank Equipped with Front and Rear Movable Devices and Manual Devices for Left, Right, and Height Adjustment.

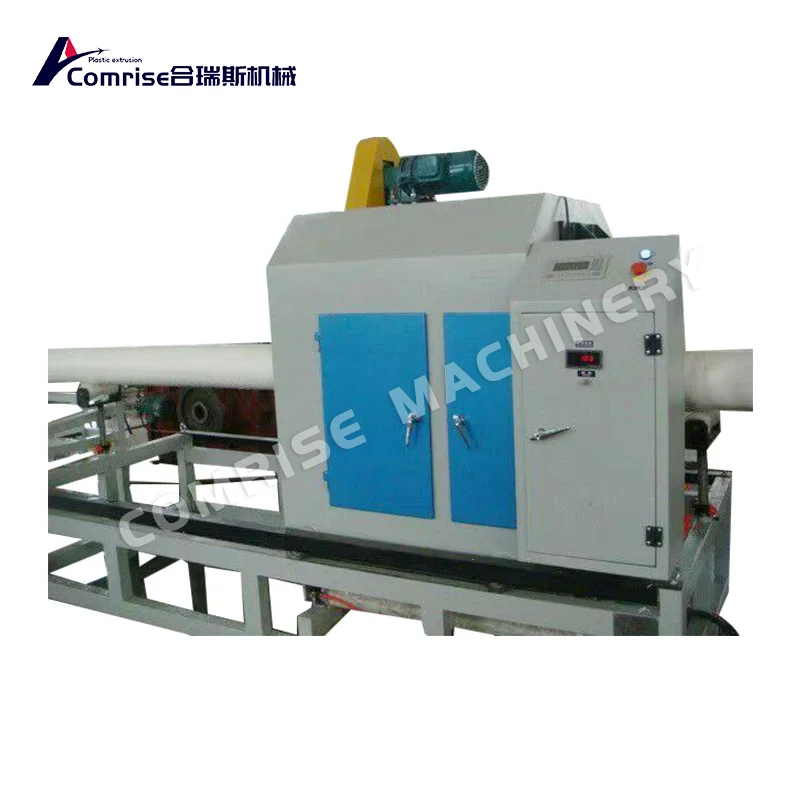

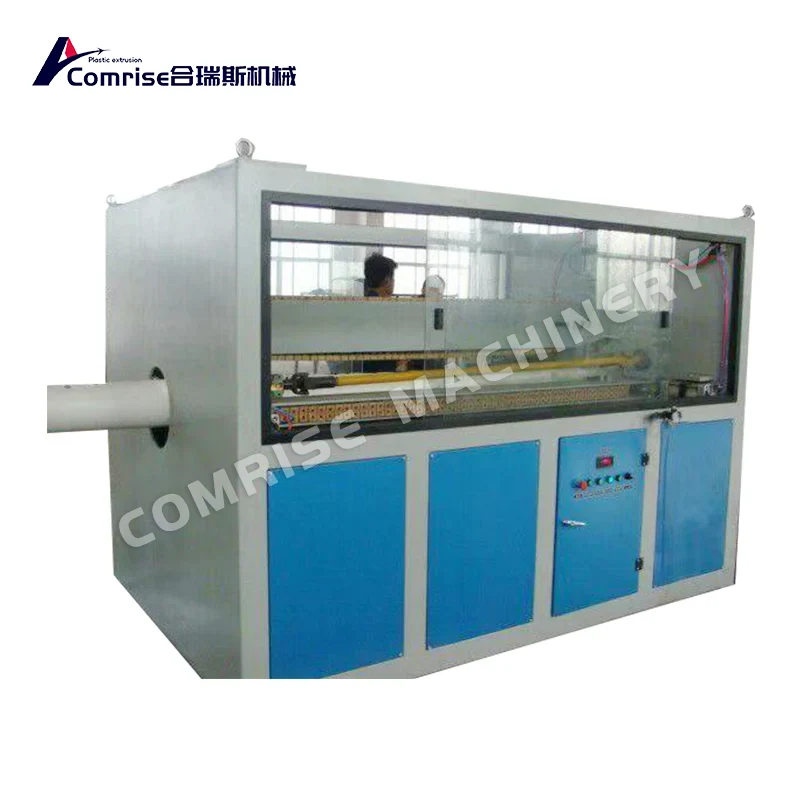

The traction machine is used to continuously and automatically pull out the cooled and hardened pipe from the machine head with variable frequency speed control.Cutting machine: After being controlled by the travel switch according to the required length, it performs automatic cutting and delays the frame rotation for continuous production.

 : The material turning action is controlled by a cylinder through an air system.

PVC pipe manufacturing machine provided by Comrise Machinery Co., Ltd is your best choice. Our after-sales service is guaranteed, with high-quality machines and mature technology. Welcome to visit the factory
