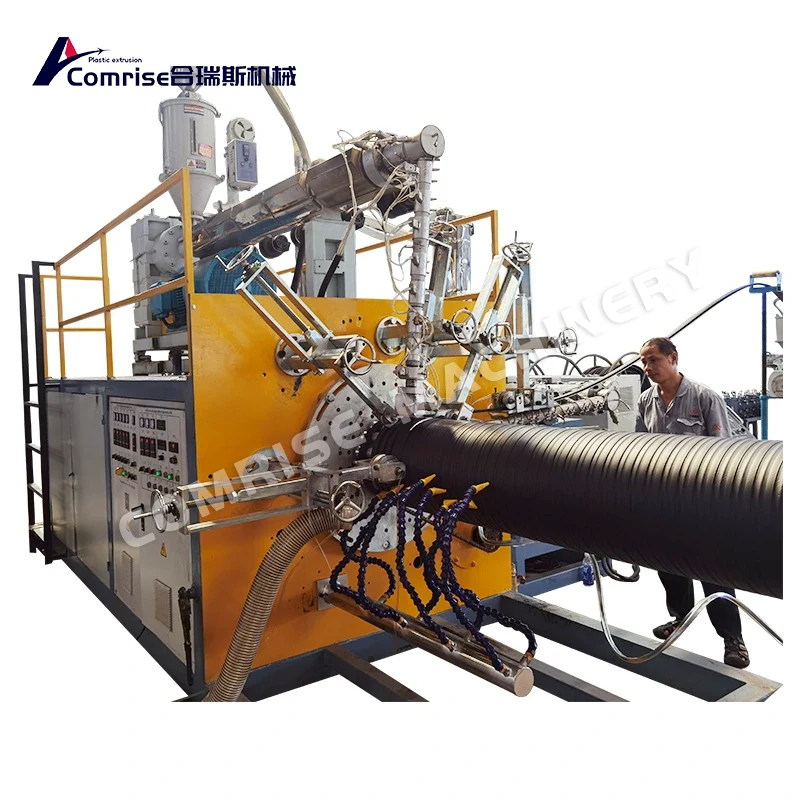

Steel Reinforced Plastic Spiral Winding Pipe Machine

Comrise Machinery Co., Ltd, is the top supplier of Steel reinforced Plastic Spiral Winding Pipe Machine in China,  Steel reinforced Plastic Spiral Winding Pipe Machine uses steel belt reinforced polyethylene spiral corrugated pipe not only offers superior performance but also significantly saves on material costs.Compared to other plastic pipes of the same diameter and ring stiffness, this type of pipe can save nearly half the material. The advantages of its core components are as follows:

Spiral Steel Rib

High Strength  : Through continuous steel strips pressed into nearly spiral-shaped steel ribs, it significantly enhances the ring stiffness of the pipe material, especially in large-diameter pipes.

High stiffness-to-weight ratio  ：The elastic modulus ratio of steel and PE exceeds 200, and the weight ratio is greater than 7.85, ensuring that the pipe is more stable when bearing pressure.

Steel Strip

Excellent material  ：Usually made of S201 stainless steel or higher strength materials with an initial elastic modulus of no less than 193GPa to ensure corrosion resistance and mechanical strength.

Craftsmanship Requirements  The surface must be free from cracks and pitting defects, with a thickness error controlled within ±0.05mm to ensure wrapping accuracy.

Polyethylene Base Material

Corrosion resistance  ：PE material can resist chemical corrosion and microbial erosion, extending the service life of pipes to over 50 years.

Flexibility  : After combining with steel materials, the overall pipe material has both rigidity and flexibility, making it suitable for laying in complex terrains.

Connection Method

Diversified  :Supports electric heating fusion, heat shrink tape, internal and external extrusion welding, etc. for combined connections to ensure sealing and leak resistance.

Reliability  :The connection technology is mature and can handle harsh construction environments.

Production Process

Composite Structure  :Steel strips and PE are tightly bonded through hot melt welding technology to solve steel corrosion issues and improve adhesion.

Application Scenarios

Suitable for municipal drainage, farmland irrigation, highway embedded pipes, and industrial sewage fields, especially suitable for complex conditions requiring high strength and corrosion resistance.

Steel reinforced Plastic Spiral Winding Pipe Machine Launched by Comrise Machinery Co., Ltd, with strong technical advantages and rich experience in production and installation is your best choice to expand your business. Welcome to inquiry and visit the factory.
