PPR Pipe Machine

As a professional plastic pipe machine in China, Comrise would like to provide you PPR Pipe Machine, which integrates several sections that work together from material melting to finished pipe cutting.

The final configuration is selected according to the pipe material, diameter range, wall thickness, output requirement and production process.

PPR Pipe Extrusion Process

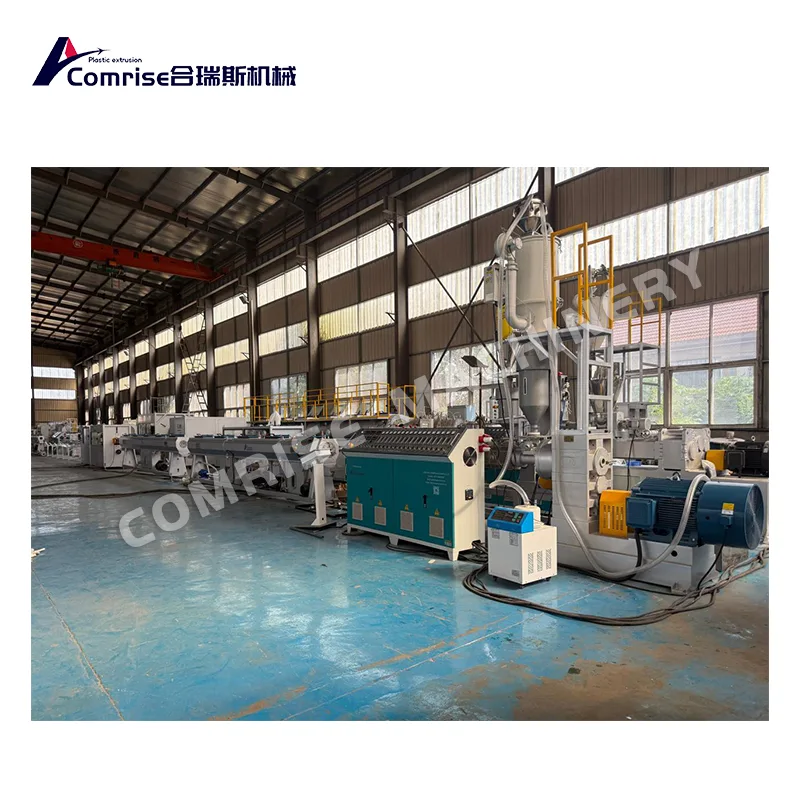

The production process starts with feeding PPR raw material into the extruder, where it is heated and plasticized before entering the die head. The formed pipe then passes through the vacuum sizing section to establish the required diameter, followed by spray cooling for dimensional stabilization.

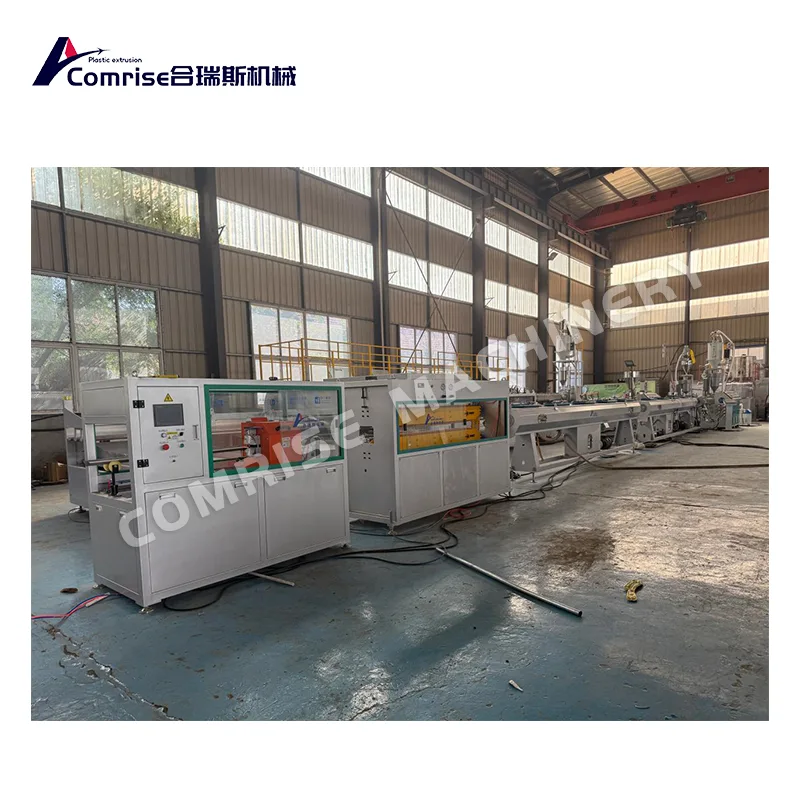

After cooling, the haul-off machine moves the pipe through the line at a controlled speed. The automatic cutting system then cuts the pipe to the specified length. PLC control connects the main production sections and allows operators to monitor and adjust key operating parameters.

This configuration is suitable for continuous PPR pipe extrusion where stable forming and coordinated operation between extrusion, cooling, hauling and cutting are required.

ABA 3-Layer PPR Pipe Production

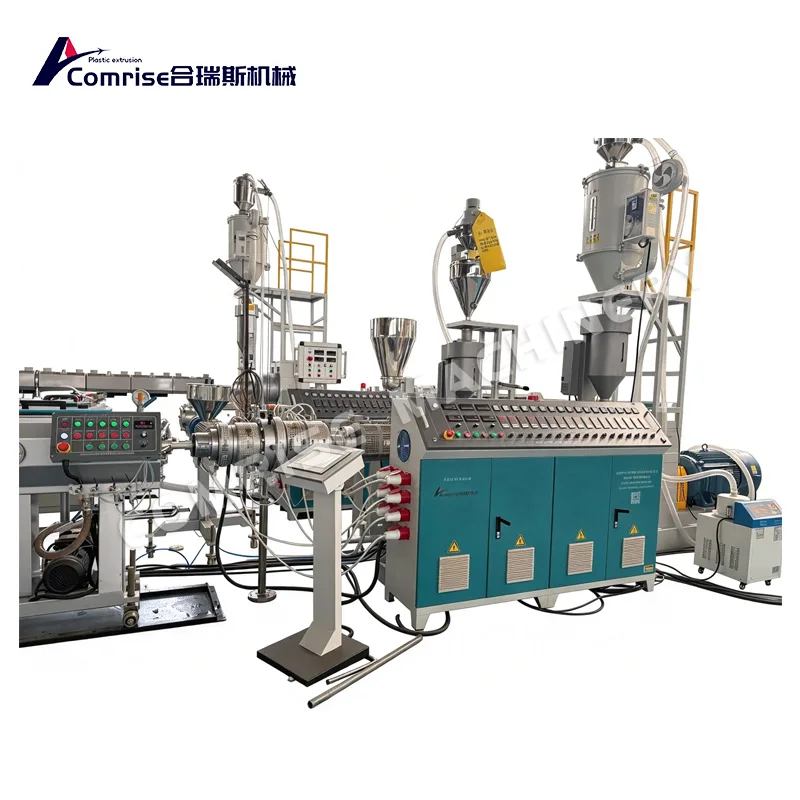

For applications requiring a multi-layer structure, COMRISE can configure the line for ABA 3-layer PPR pipe production. The three-layer structure is formed through coordinated extrusion and a dedicated 3-layer die head.

An ABA configuration can be used where different material layers or layer functions are required within the same pipe structure. The exact layer arrangement and material combination depend on the final pipe design and production requirements.

One Production Line for PPR and Selected PE Pipes

A dual-purpose configuration allows the same extrusion platform to support both PPR and selected PE pipe production when the corresponding die head and molds are used.

For PPR production, the line can be configured for hot and cold water supply pipes. After changing the required tooling, it can be adapted for suitable PE pipe applications such as water supply, irrigation or cable protection pipe production.

The available PE pipe range depends on the extruder configuration, die head, mold, material and required pipe dimensions. The production specifications should therefore be confirmed before the line is configured.

Pipe Applications

The PPR Pipe Machine is mainly used for manufacturing PPR pipes for:

1. Building Water Supply

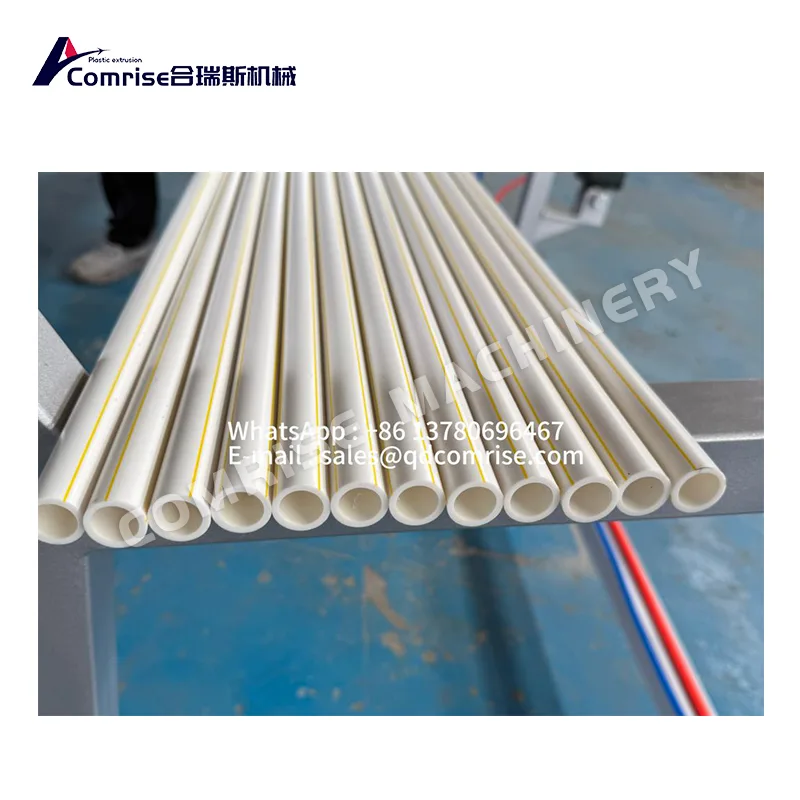

PPR pipes can be produced for hot and cold water distribution systems in residential, commercial and other building plumbing applications.

2. Household Plumbing

The extrusion line can be configured for PPR pipe specifications used in indoor water supply and plumbing systems.

3. Municipal Water Supply

With the appropriate PE configuration, the line can support selected PE water supply pipe applications for infrastructure projects.

4. Agricultural Irrigation

Suitable PE tooling and line configurations can be used for selected irrigation pipe production requirements.

5. Cable Protection

Selected PE pipe configurations can be used for electrical and cable protection applications where the required material and pipe structure are matched to the production line.

Production Flexibility and Configuration

Different pipe products require different combinations of extrusion capacity, tooling and downstream equipment. COMRISE can configure the PPR Pipe Machine according to the intended production range.

The main factors include:

· Pipe material: PPR, PE or both

· Pipe diameter range

· Wall thickness

· Single-layer or multi-layer structure

· Required production output

· Pipe cutting length

· Die head and mold design

· Factory layout and available space

· Local electrical requirements

Providing these details before quotation helps determine the appropriate extruder, die head, sizing and cooling system, haul-off and cutting configuration.

Factory Testing Before Delivery

Each complete production line should be tested according to its final configuration before shipment. For a newly tested PPR/PE dual-purpose line, COMRISE conducts trial production to verify the coordination of the extrusion and downstream systems and check the quality of the finished pipe.

Factory testing can also provide an opportunity to confirm the selected pipe specification and production settings before the equipment is shipped to the installation site.

Installation, Commissioning and Operator Training

After the machine arrives at the production facility, installation and commissioning can be arranged according to the project requirements. Technical support can cover equipment setup, initial adjustment, production operation and operator training.

Training can include:

· Startup and shutdown procedures

· Basic operating parameter adjustment

· Extrusion and cooling coordination

· Pipe sizing and haul-off adjustment

· Automatic cutting operation

· Routine maintenance and troubleshooting

The specific service arrangement is confirmed according to the equipment configuration and project requirements.

Why Choose a Complete PPR Pipe Production Line?

Integrated Line Configuration

The extruder, die head, sizing, cooling, haul-off, cutting and control sections are configured as a complete production system, helping the individual units work together during pipe extrusion.

PPR and PE Production Flexibility

A suitable dual-purpose configuration can switch between PPR and selected PE pipe production through the corresponding tooling changes, providing a wider production range on one extrusion platform.

Configuration Based on Pipe Requirements

The line is not limited to one fixed specification. Extruder capacity, die head, mold, cooling section, haul-off and cutting system can be selected according to the required pipe dimensions and production target.

Technical Support After Delivery

Installation, commissioning and operator training can be arranged to help the production team operate and maintain the extrusion line correctly.

FAQ

1. What pipes can a PPR Pipe Machine produce?

The machine is primarily designed for PPR hot and cold water supply pipe production. With the appropriate die head and molds, a suitable configuration can also support selected PE pipe production.

2. Can one production line produce both PPR and PE pipes?

Yes. A dual-purpose line can be configured for both materials. The production changeover depends on the required die head, molds, material and pipe specifications.

3. What is an ABA 3-layer PPR pipe machine?

An ABA 3-layer PPR pipe machine uses three extrusion layers arranged in an A-B-A structure. The final layer combination and material arrangement are determined by the required pipe design.

4. What equipment is included in a complete PPR pipe production line?

A typical line includes the extruder, die head, vacuum sizing tank, cooling tank, haul-off machine, automatic cutter and PLC control system. The exact configuration depends on the pipe specification.

5. Can the machine produce different pipe diameters?

Yes. Different pipe diameters require corresponding molds and, depending on the production range, suitable extrusion and downstream configurations.

6. What information is needed before purchasing a PPR Pipe Machine?

The main information includes pipe material, diameter range, wall thickness, pipe structure, required output, cutting length, factory power supply and available installation space.

Get a PPR Pipe Machine Configuration

Send COMRISE your required pipe material, diameter range, wall thickness, production output and pipe structure. The technical team can recommend a suitable extrusion line configuration based on the intended production requirements.
