Spray Coating Insulation Pipe Production Line

As a professional ,anufacturer in China, Comrise has independently developed Spray coating insulation pipe production line, which consists of three parts: shot blasting and rust removal production line, polyurethane spray production line, and PE winding production line. It is an automated equipment used for manufacturing insulation pipes, mainly used for producing insulation pipelines for heating, cooling, petroleum, chemical and other fields.

Process usually includes the following steps

Shot blasting and rust removal on the outer wall of steel pipes - Medium frequency heating - Polyurethane spraying and foaming - HDPE winding - Cooling and shaping - End treatment - Sealed pipe section

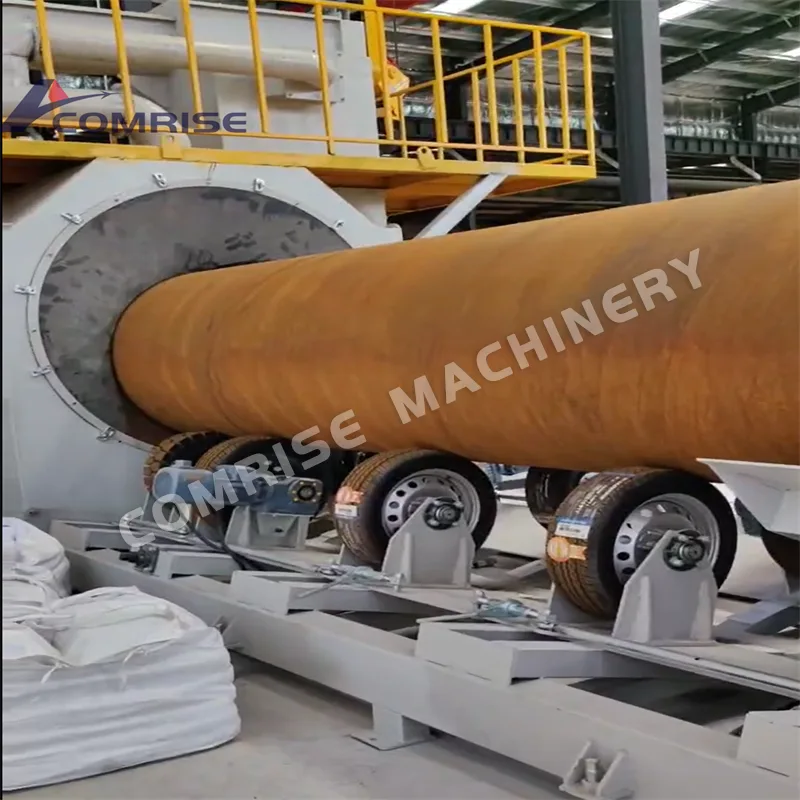

1.Pre treatment and rust removal cleaning of steel pipes: Firstly, the surface of the steel pipe is subjected to rust removal treatment, usually using shot blasting or sandblasting processes, to ensure that the surface is clean and free of impurities such as rust and oil stains. Preheating: Preheat the cleaned steel pipe so that it can better adhere to the surface of the steel pipe during subsequent polyurethane foaming.

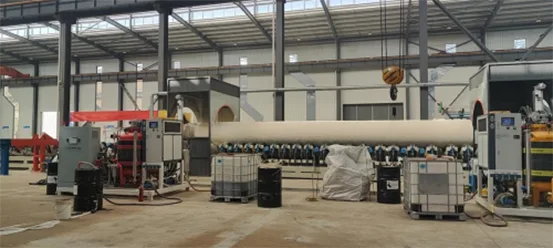

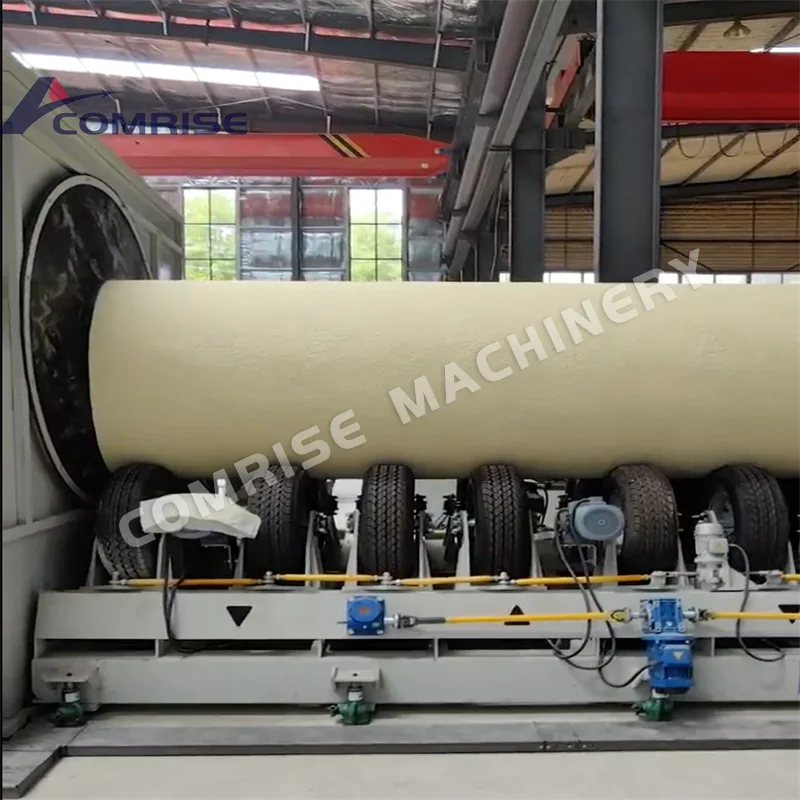

2.Polyurethane foaming spray foaming: Mix polyurethane raw materials (isocyanates and polyols) through a high-pressure foaming machine and evenly spray them onto the surface of preheated steel pipes. Polyurethane raw materials rapidly foam on the surface of steel pipes, forming an insulation layer.

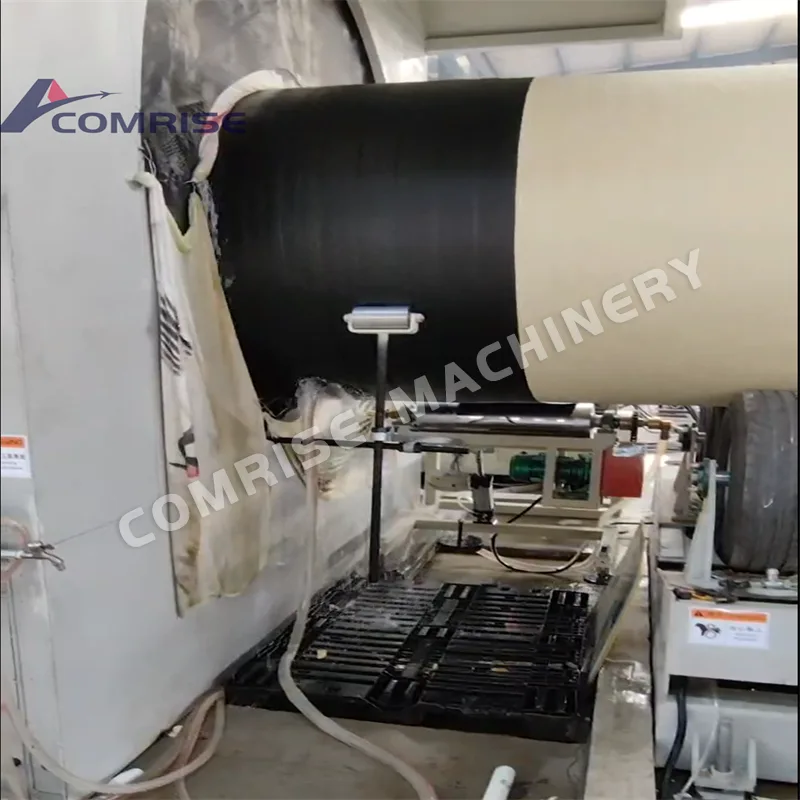

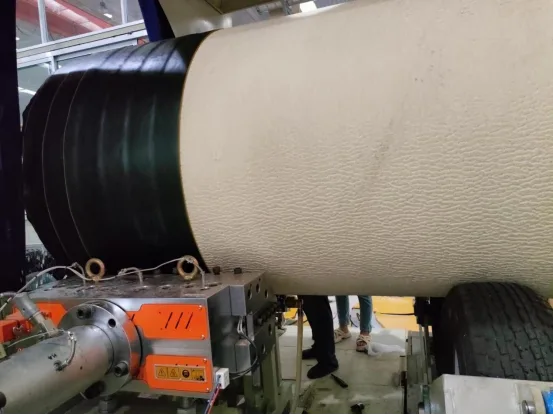

3.Outer protective layer wrapping: Wrap the outer protective layer with polyethylene (PE) material outside the polyurethane insulation layer to form the outer protective layer. Cooling and shaping: The wrapped pipeline is cooled and shaped to ensure a tight bond between the outer protective layer and the insulation layer, forming a stable structure.

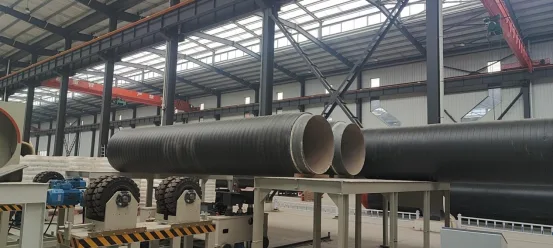

4. Cutting and trimming cutting: Cut the insulation pipe into the required length according to customer requirements. Trimming: Trimming the end of the pipeline to ensure a smooth surface for subsequent installation and connection.

Product advantages:

Dust removal meets environmental standards

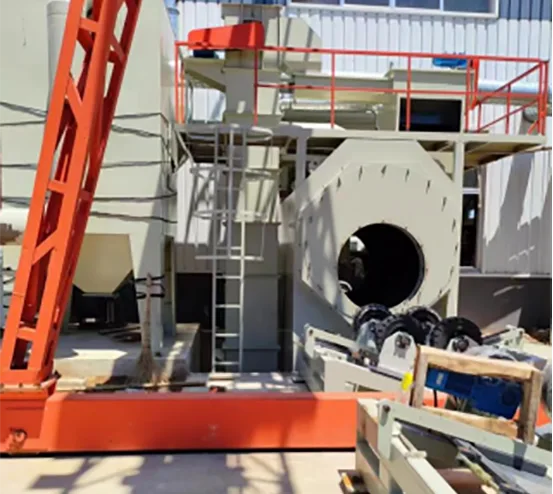

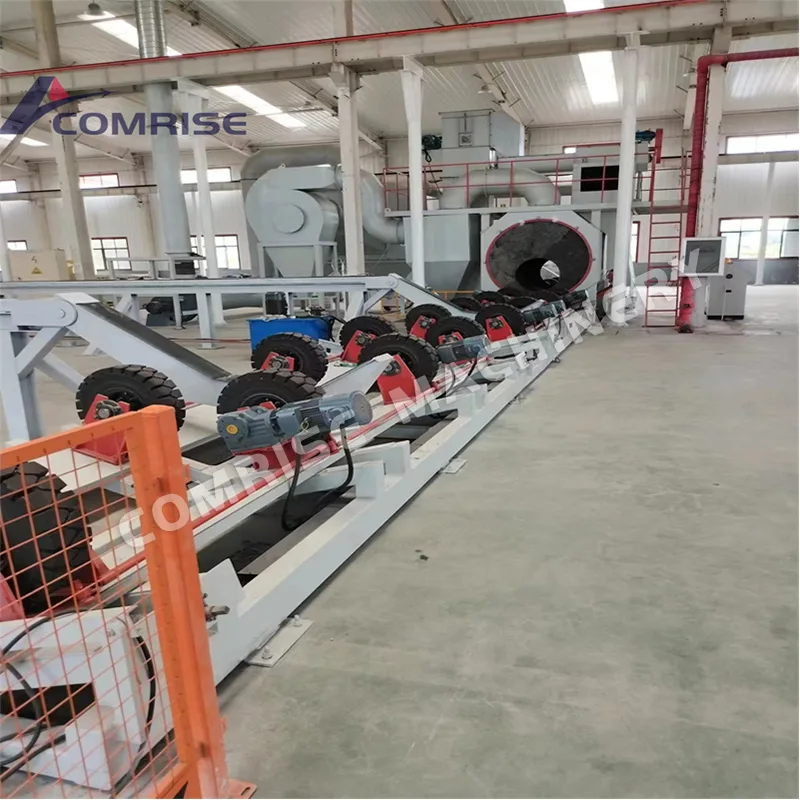

Adopting an intelligent shot blasting and rust removal solution, the Spray Coating Insulation Pipe Production Line can be automatically locked in sequence, the shot blasting motor can be frequency converted for energy saving, the sand volume can be set according to the pipe diameter, the air washing system can clean the shot sand, and the plug type can quickly change specifications. The three-level dust removal meets environmental standards.

Automated operation of production line

Realize automated processing of upper and lower pipes, with upper pipe sensors, automatic acceleration tracking sensors, automatic acceleration detachment sensors, detachment confirmation sensors, and automatic lower pipe sensors installed on the conveyor line to ensure the automated operation of the production line.

Spraying saves raw materials

Pipeline online spraying speed is fast; Constant intermediate frequency power, infrequent power on/off, minimal impact on the power grid, balanced temperature, and energy conservation; Continuous spraying saves raw materials, and the steel pipes are automatically connected at the beginning and end to ensure consistent thickness of the sprayed surface.

Efficient extrusion pipeline

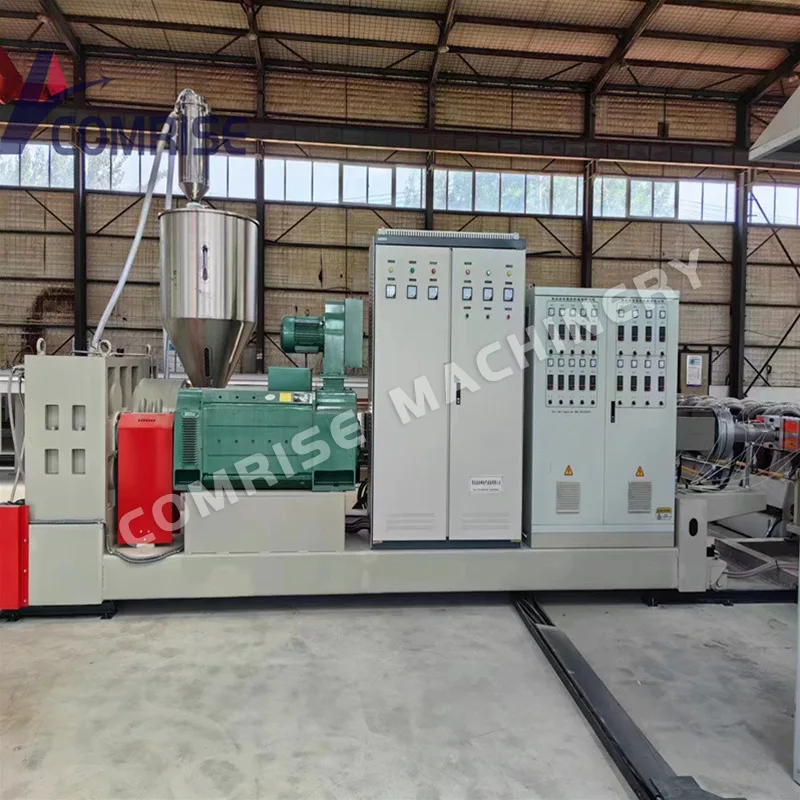

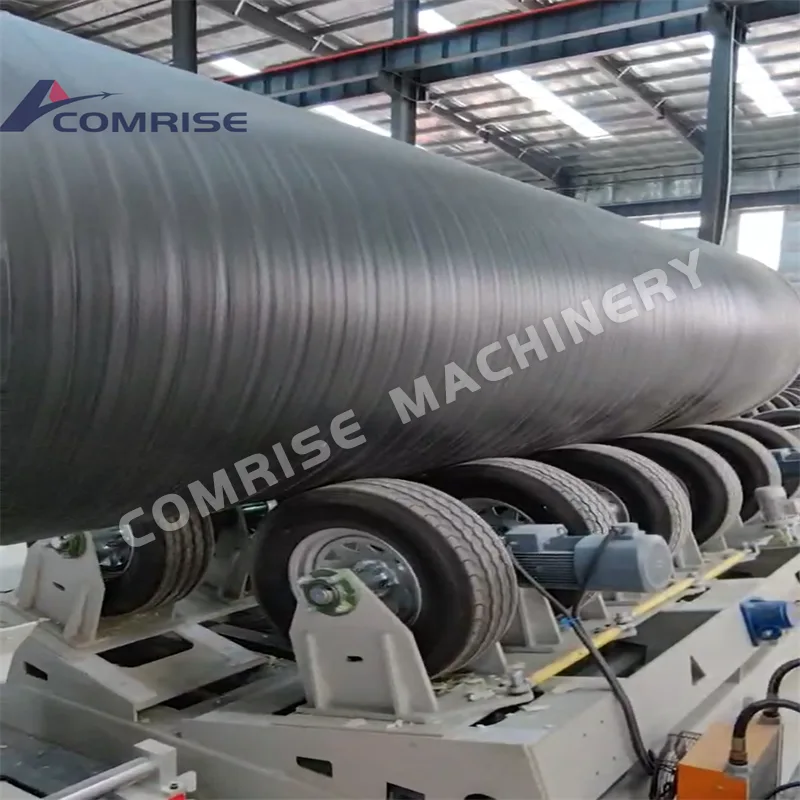

Using an efficient and energy-saving extruder for extrusion, and employing a mechanical compression device for winding and compacting; On line automatic pipe chasing, end to end, to protect foam; Automatic cutting in place, triple cutting of anti-corrosion coating, automatic detachment of pipes offline, accelerated detachment.

Suitable for the production of large-diameter insulation pipes

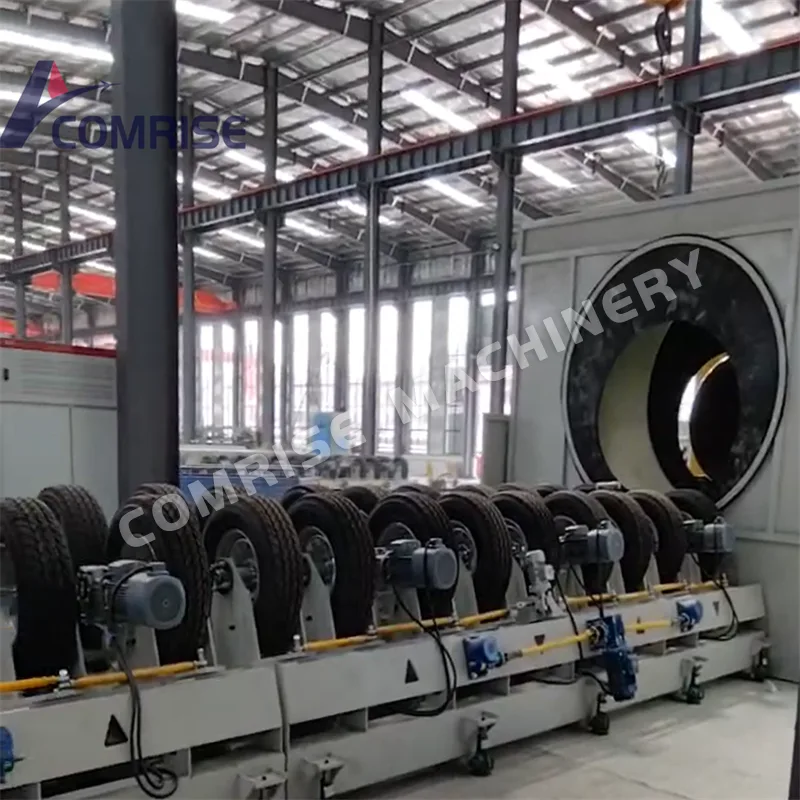

By using a high load-bearing spiral conveyor line, the polyurethane foam spraying and polyethylene winding processes can be continuously carried out, which has the advantages of high efficiency, energy saving, speed, and stability. It is suitable for the continuous production of large-diameter insulation pipes and saves investment in transportation equipment.

Automated precision machining of pipeline interfaces

Concentrate multiple processing steps on one device for automated processing, achieving precise control over the size, dimension, angle, and blunt edge dimensions of the pipe mouth.

Technical parameters

Why choose Comrise Machinery for the Spray coating insulation pipe production line?

Comrise spray winding insulation pipe line adopts one-step forming technology. High automation, stable running and low consumption. Customized for Middle East high temperature & salt fog environment, with complete certificates and reliable after-sales support.

Choose Comrise machinery for insulation pipe equipment. Mature spray & winding process, high production efficiency and easy operation. Heavy-duty design for harsh Gulf working conditions, factory direct price and long service life.

Comrise integrated insulation pipe production line ensures uniform foam layer and stable pipe quality. Low maintenance cost, energy saving and high cost performance. Professional overseas engineering service and complete export documents.

Reliable insulation pipe machine supplier—Comrise. Advanced spray coating and winding system, fast mold change and wide production range. CE approved, suitable for Saudi, Bahrain, UAE and other Middle East pipeline projects.

Premium insulation pipe production solution from Comrise. Optimized mechanical structure, wear-resistant key parts and intelligent control. Fast delivery, overseas installation training and one-stop foreign trade service.
