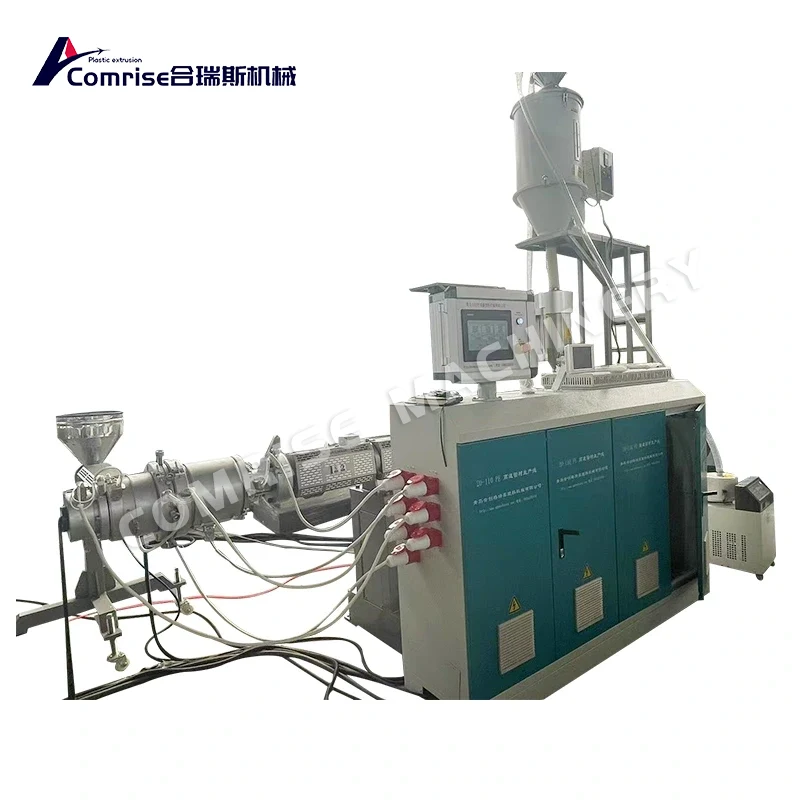

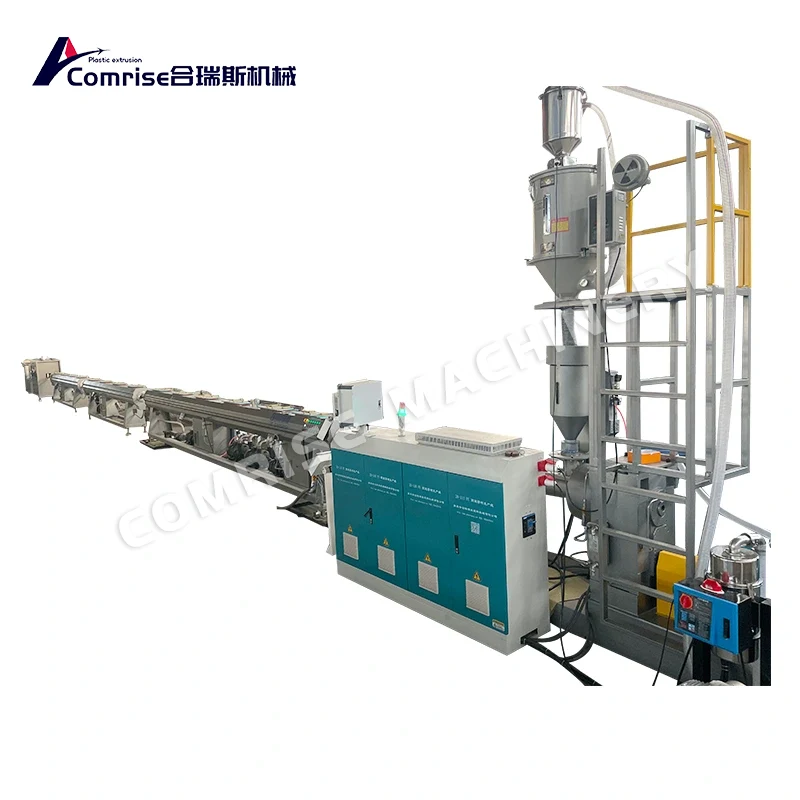

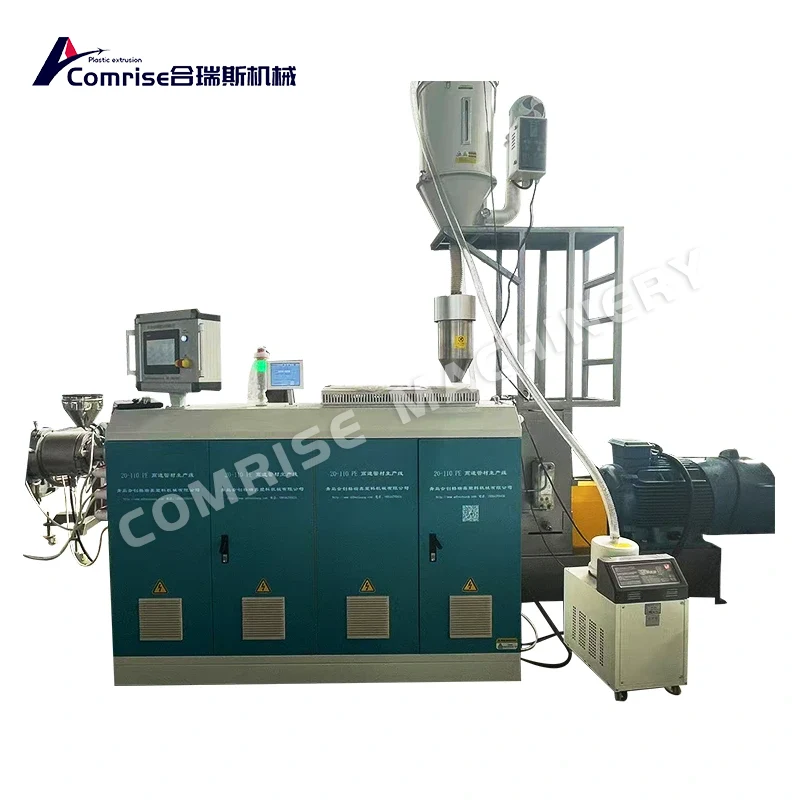

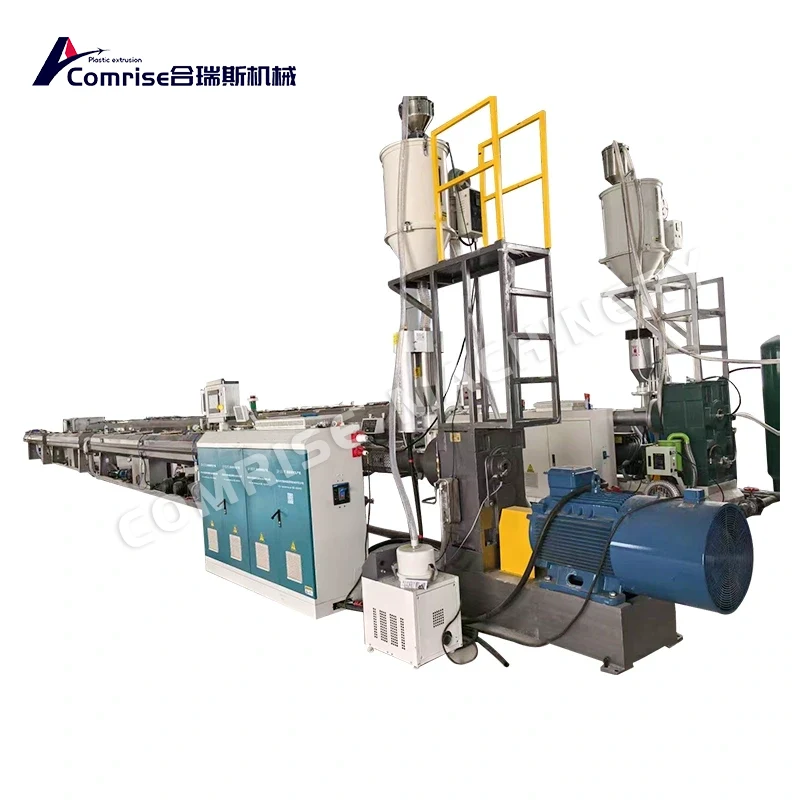

HDPE Pipe Extrusion Line

Over view

Comrise's HDPE pipe Extrusion line features high-quality ring stiffness, long service life, aging resistance, and high production efficiency

Our process flow is: raw materials+additives → mixing machine → hopper dryer → single screw high-efficiency extruder → marking extruder → die head → vacuum forming water tank → spray water tank → trailer → cutting machine → discharge rack

Our technology is very mature, so the machines we produce not only run smoothly but also have high quality. Our prices are also very favorable because we are the source factory and do not go through intermediaries

The Characteristics of Our Machine:

1.The use of efficient extrusion screws greatly improves the extrusion output of PE pipe machines

2.We use an efficient and precise temperature control system to control the temperature of all parts of the entire machine

3.Accurate gearbox design ensures stable machine operation

4.We have added a filtration system to the vacuum water tank and spray water tank through water level control, making cooling more rapid

5.Comrise's tractor is a specially designed traction device by our technology to ensure the stability of traction, controlled by servo motors

Production pipe diameter: 16-1200mm

Production output: 150kg/h-1200kg/h

Production layers: one layer, two layers, three layers, five layers, supporting customer special design

Used for measuring, calculating, and precise control of pipe weight per meter, and

Its extrusion output achieves the constancy of tube weight.

The application of this system can shorten the startup time and improve the production pipeline

Our company's machines have competitive prices, good quality, and mature technology. Please feel free to inquire
