3PE Steel Pipe Anti-corrosion Production Line

Buy quality 3PE Steel Pipe Anti-corrosion Production Line from Comrise, a professional manufacturer in China. This highly efficient production line provides a reliable method of creating long-lasting, durable anti-corrosion coatings that are critical for industries like heating, cooling, petroleum, and chemicals.

What is 3PE Steel Pipe Anti-corrosion Production Line?

The 3PE Steel Pipe Anti-corrosion Production Line is a fully automated system designed to coat steel pipes with a three-layer protection structure: FBE (epoxy powder), adhesive, and polyethylene. These materials are carefully applied to create a robust, long-lasting anti-corrosion layer for steel pipes, which are widely used in oil, gas, heating, and chemical pipelines. This production line offers significant advantages such as high processing capacity, stable performance, and ease of maintenance.

Our company independently researches and develops Spray Coating & Winding Thermal Insulation Pipe Production Line, which consists of three parts:

Shot Blasting Rust Removal Line, Polyurethane Spray Coating Line and PE Winding Line.

It is a full automatic equipment for manufacturing thermal insulation pipes, mainly used to produce insulation pipelines for heating, cooling, petroleum, chemical and other industries.

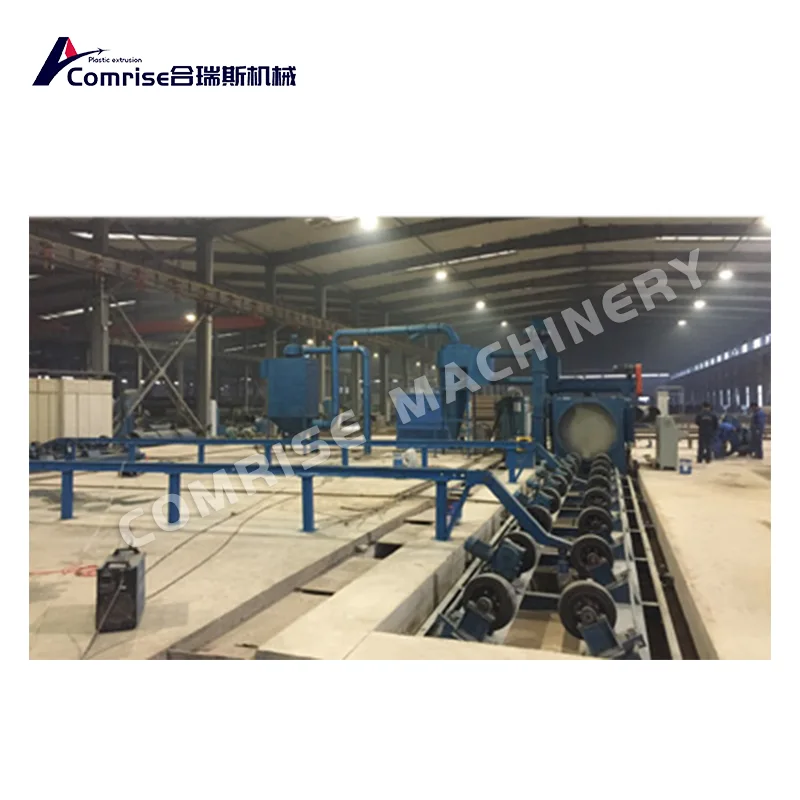

Steel pipeline outer wall shot blasting and rust removal production line

l Pipe rack on steel pipe

l Steel pipe online shuttle mechanism

l One to two hydraulic stations

l Integrated transmission line for transmission system

l Intermediate frequency preheating equipment

l Dust removal brush before shot blasting

l Shot blasting rust removal cleaning machine

l cyclone dust collector

l Pulse type filter cartridge dust collector

l Centrifugal induced draft fan

l Rust removal equipment and transmission electrical control system

l Steel pipe lower pipe rack

l Steel pipe offline shuttle mechanism

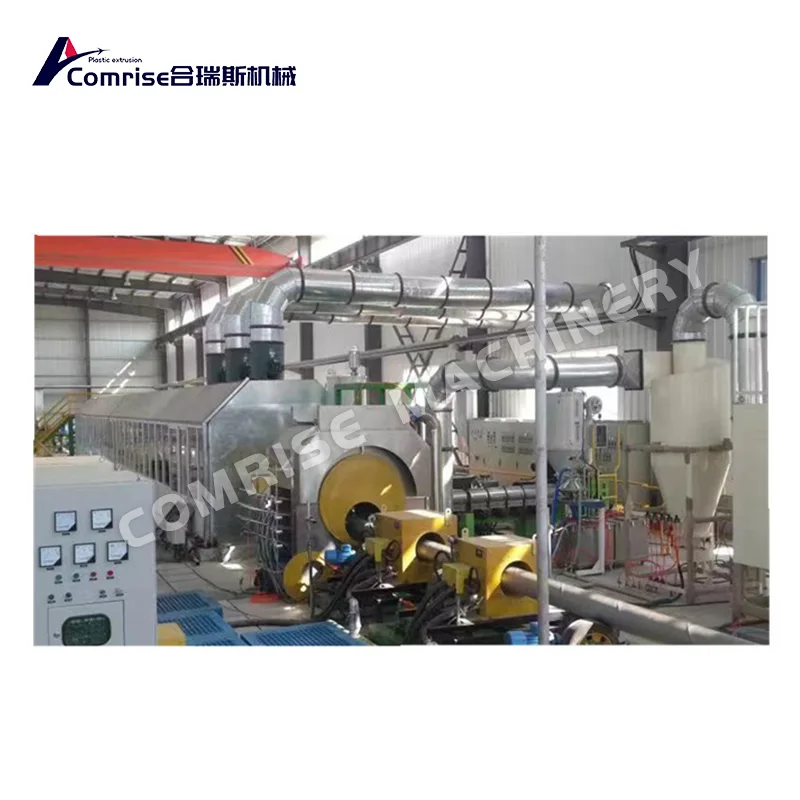

Steel pipe outer wall winding 3PE production line

l Transition platform for homework line

l Steel pipe online shuttle mechanism

l One to two hydraulic stations

l PE winding spiral conveyor line

l Dust removal brush before powder spraying

l Medium frequency heater

l Power high-temperature support wheel

l Epoxy powder spraying system

l Powder spraying room, fluidized bed drum

l Powder secondary recycling device

l Vacuum automatic feeding dryer

l SJ-120/30 extruder

l SJ-65/30 extruder

l Extruder moving mechanism

l Hot melt adhesive extruder head mold

l PE sheet extruder head mold

l Hot melt adhesive/PE coating device

l Environmental ventilation system

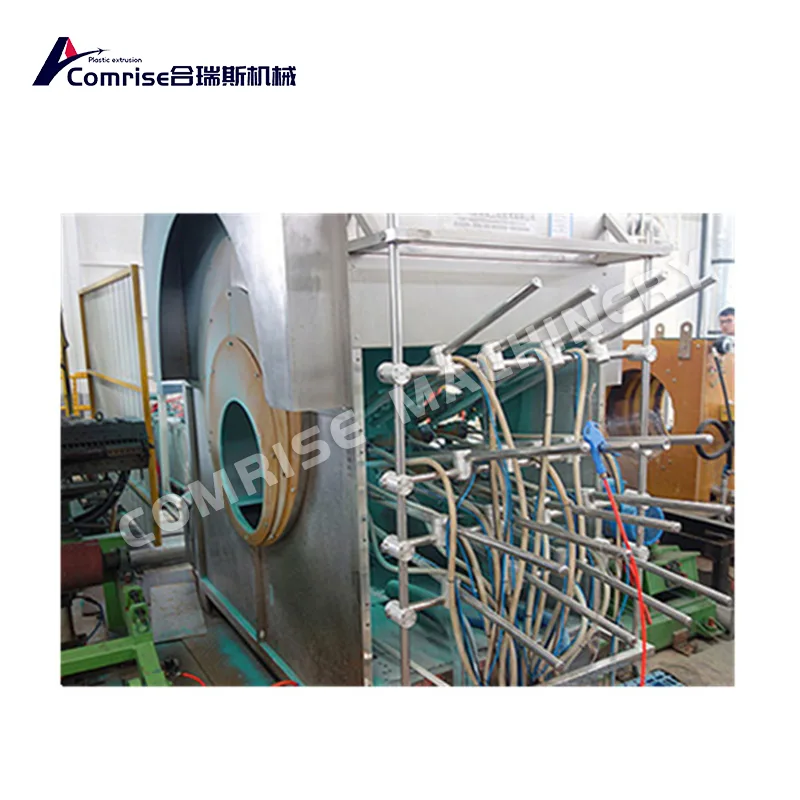

l Cooling spray system

l Cooling splash proof plastic steel curtain wall

l Steel pipe offline shuttle mechanism

l One to four hydraulic stations

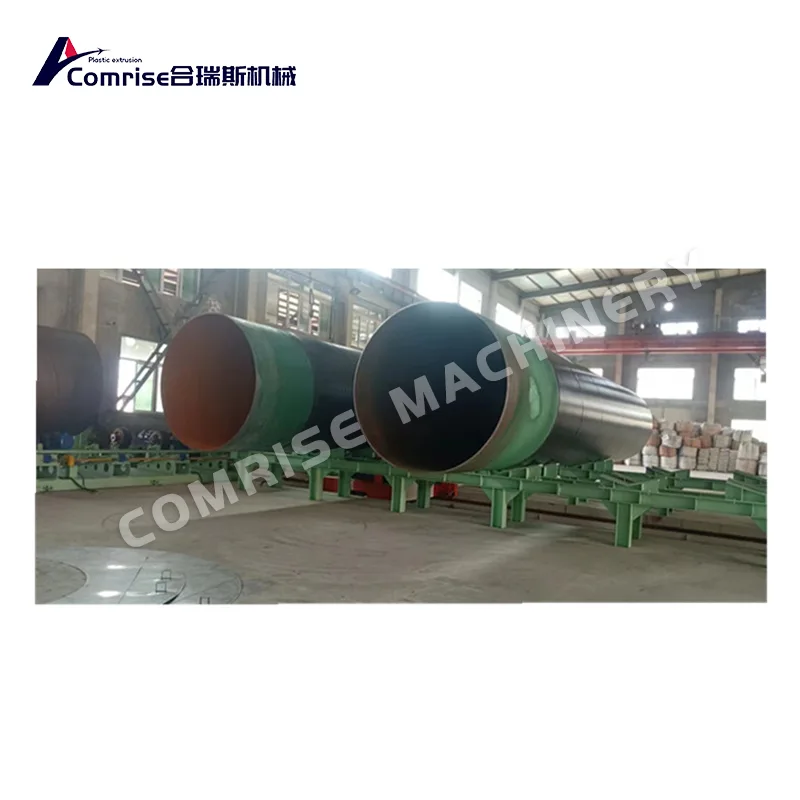

l External anti-corrosion pipe platform

l PE beveling machine

l Dust removal system

l Hydraulic lifting and pipe turning machine

l Electrical Control System for 3PE Operation Line Outside Steel Pipe

Product structure

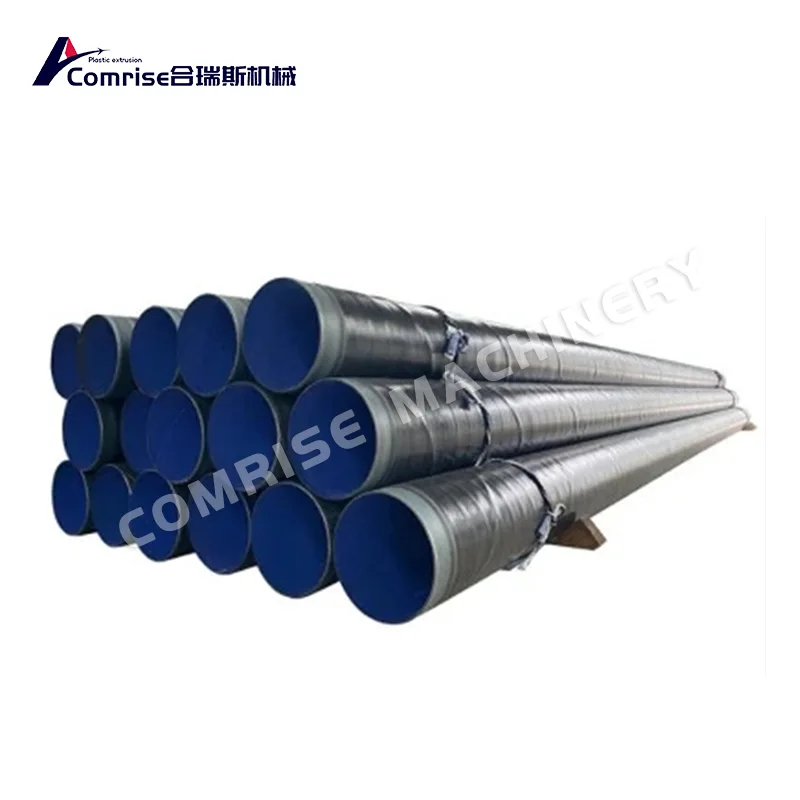

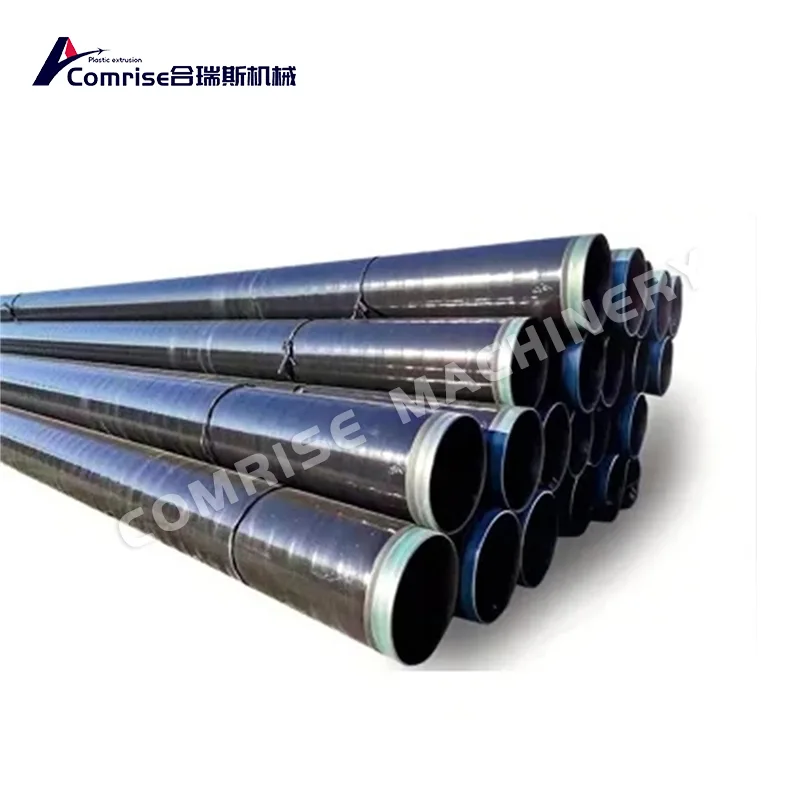

Three layer 3PE anti-corrosion pipelines: first layer of epoxy powder (FBE>120um), second layer of adhesive (AD) 170-250um, and third layer of polyethylene (PE) 1.8-4.2mm. The three materials are integrated and firmly bonded with the steel pipe to form an excellent anti-corrosion layer.

Technical parameters

FAQ

Q1: What is 3PE steel pipe anti-corrosion equipment?

A1: It is a production line that forms a three-layer protective structure (FBE epoxy powder primer + adhesive layer + polyethylene top layer) on the steel pipe surface, with high mechanization, stable process and environmental protection, widely used in various engineering fields.

Q2: What are the main application fields of 3PE steel pipe anti-corrosion equipment?

A2: It is widely used in heating pipeline, gas pipeline, oilfield pipeline, long-distance transmission pipeline and chemical industrial pipeline, as well as urban water supply and drainage, sewage treatment and marine engineering.

Q3: What are the main layers of 3PE steel pipe anti-corrosion pipes?

A3: The three layers are bottom FBE epoxy powder layer, middle adhesive layer and outer polyethylene layer.

Q4: What is the diameter range of the steel pipe anti-corrosion production line?

A4: The diameter range is 159-4200mm, which can adapt to steel pipes of various specifications in engineering.

Q5: What are the main manufacturers of 3PE steel pipe anti-corrosion production lines in China?

A5: Qingdao Comrise Machinery Co., Ltd. is one of the main manufacturers in China, specializing in R&D and production of 3PE anti-corrosion equipment.

Q6: What are the advantages of 3PE steel pipe anti-corrosion production line?

A6: It has the advantages of high mechanical strength, excellent electrical insulation, waterproof, corrosion resistance, stable process, high mechanization degree and environmental protection.

Q7: What process is used for 3PE steel pipe anti-corrosion production line?

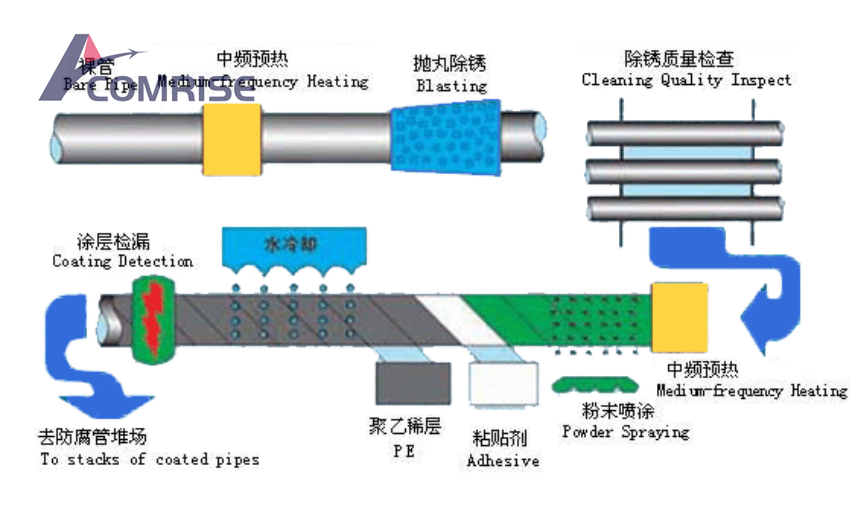

A7: The main processes include steel pipe pretreatment (shot blasting/rust removal), preheating, FBE epoxy powder spraying, adhesive coating and PE extrusion coating, followed by cooling and shaping.

Q8: Is the 3PE anti-corrosion production line automatic or semi-automatic?

A8: It has both full-automatic and semi-automatic models, which can be customized according to customer output and budget requirements.

Q9: Can the 3PE anti-corrosion production line be used for long-distance transmission pipelines?

A9: Yes, it is especially suitable for long-distance oil and gas transmission pipelines, with excellent corrosion resistance and waterproof performance to adapt to complex underground environments.

Q10: What auxiliary processes are needed for the 3PE steel pipe anti-corrosion production line?

A10: The auxiliary processes include steel pipe pretreatment (shot blasting, rust removal), pipe preheating, coating thickness detection and finished product trimming.

Q11: What raw materials are needed for the 3PE anti-corrosion production line?

A11: The main raw materials include FBE epoxy powder, adhesive, polyethylene (PE) raw materials, etc.

Q12: Can the 3PE anti-corrosion production line be customized according to pipe diameter?

A12: Yes, it can be customized according to the required pipe diameter range (159-4200mm) to meet different engineering needs.

Q13: What is the service life of the 3PE anti-corrosion coating?

A13: Under normal use and maintenance, the service life of the 3PE anti-corrosion coating can reach more than 30 years.

Q14: Is the 3PE anti-corrosion production line environmentally friendly?

A14: Yes, the production process has no pollution, meets environmental protection standards, and does not produce harmful substances.

Q15: What is the production efficiency of the 3PE anti-corrosion production line?

A15: The production efficiency is high, and it can be adjusted according to the pipe diameter and coating thickness, which is suitable for mass production.

Equipment

Production Process

Steel Pipe Pretreatment & Rust Removal

The surface of steel pipe is derusted by shot blasting or sandblasting to ensure clean surface without rust, oil and other impurities.

Then the cleaned steel pipe is preheated for better adhesion of polyurethane foam.

Polyurethane Foam Spraying

Polyurethane raw materials (isocyanate and polyol) are mixed by high-pressure foaming machine and evenly sprayed on the preheated steel pipe surface.

The materials foam quickly to form a stable insulation layer.

Outer Protective Layer Winding

Polyethylene (PE) material is wound outside the polyurethane insulation layer as outer protective casing.

Then the pipe is cooled and shaped to make the outer layer and insulation layer closely combined.

Cutting and Trimming

The insulation pipe is cut to the required length according to customer needs.

The pipe ends are trimmed to ensure flat end surface for convenient installation and connection.
