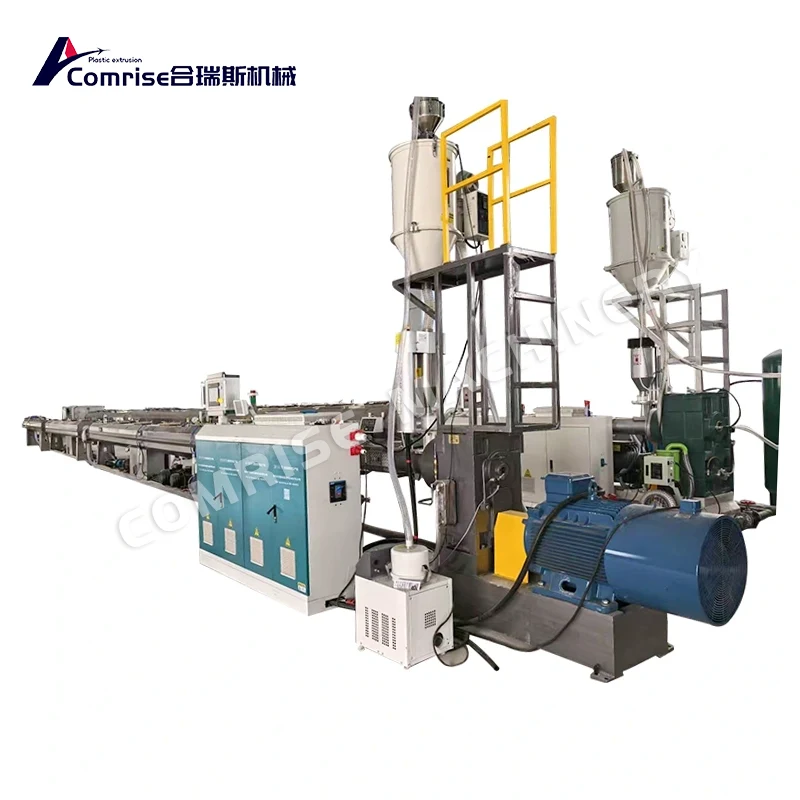

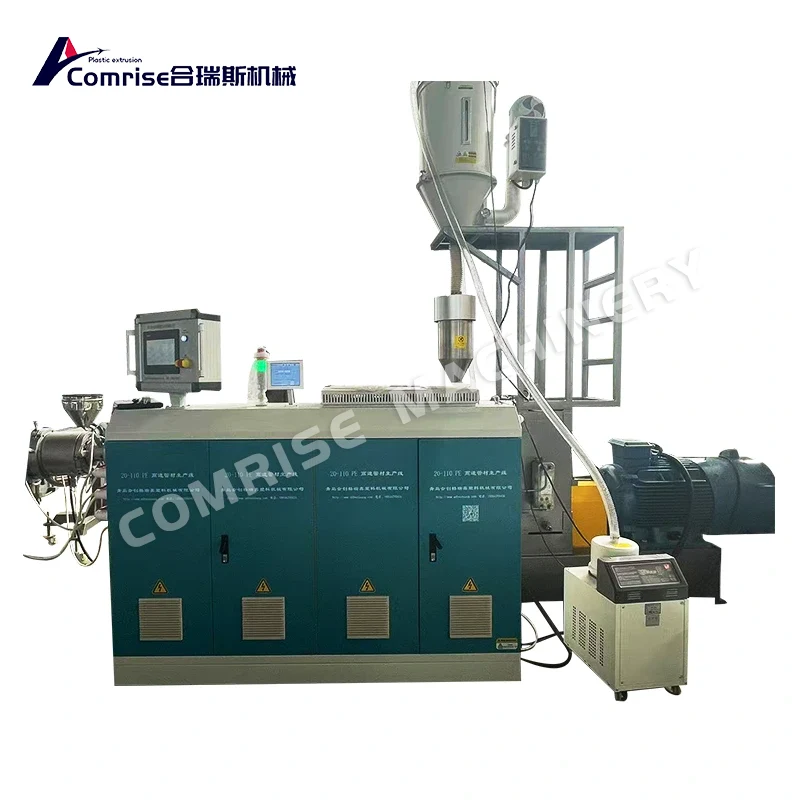

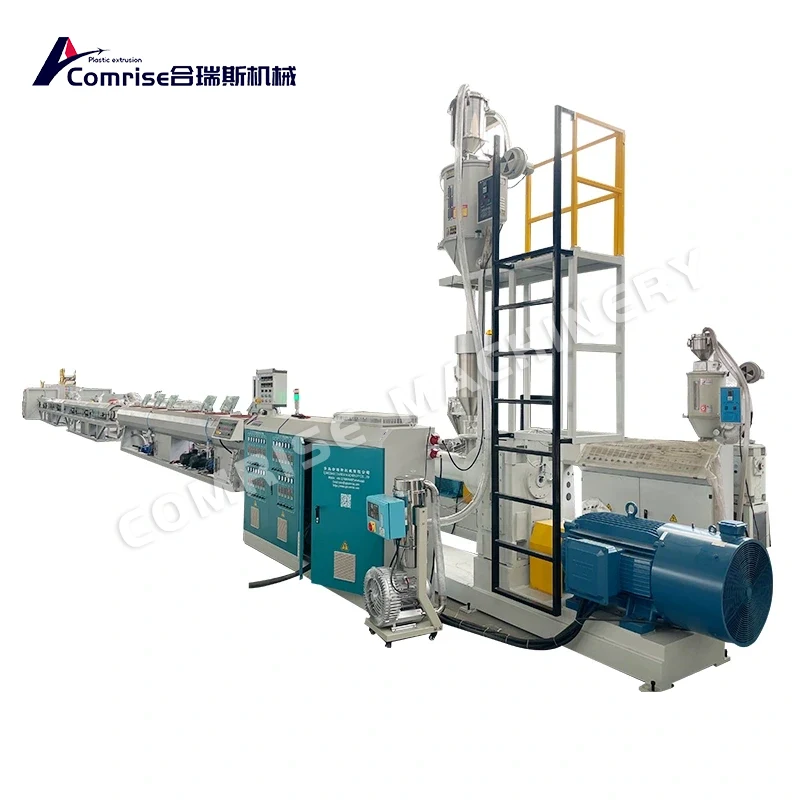

HDPE Pipe Manufacturing Machine

The specifications of HDPE pipe manufacturing machine are mainly selected based on the pipe diameter and production requirements.

Common specifications are as follows:

Pipe diameter range

The common range covers 16-1200mm. Among them, the Comrise high quality 20-63mm specification HDPE pipe manufacturing machine is suitable for water supply pipes, drainage pipes and other scenarios, while the 63-1200mm specification is suitable for gas transportation, mineral transportation and other scenarios

Production range

The output of a single-layer production line is typically between 120 and 850kg/h. For instance, the maximum output of the SJ65/33 model is 150kg/h, while the M1200S double-screw design model can reach 850kg/h.

Core Configuration

‌Extruder: Adopting a single-screw design, equipped with barrier mixing elements and ceramic heating rings to ensure uniform plasticization. ‌

Mold Head: The double helix design can improve melt uniformity and reduce mold cavity pressure.

‌Cooling System: Water-cooled fixed-diameter sleeve + multi-stage vacuum control box combination ensures pipe size accuracy.

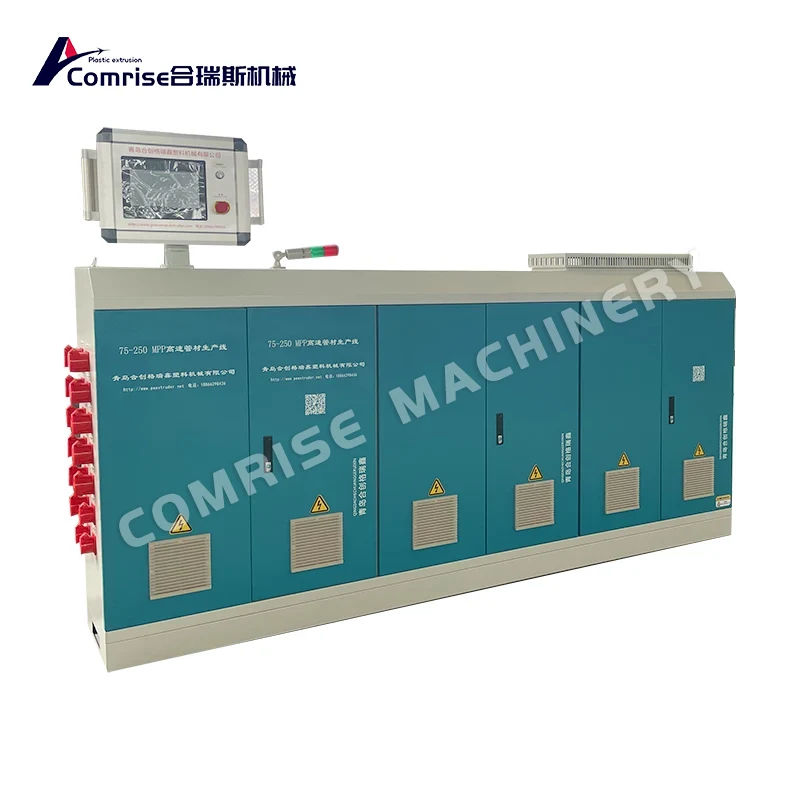

Control System

‌Automation Level Supports PLC programmable control, equipped with a touch screen operation interface and data storage function.

The maintenance of HDPE pipe production line requires focusing on device upkeep and production environment control with specific measures as follows: ‌‌

Cleaning and Maintenance ‌

Regularly clean the surface of the equipment from oil and dust to ensure that transmission components (such as screws and molds) are clean and avoid impurities affecting processing accuracy.

Lubrication and Maintenance: Regularly add lubricating oil to the transmission system to ensure proper lubrication of bearings, gears, and other components, reducing wear and tear.

Electrical Inspection Check if the circuit connections are loose and if the control panel indicators are functioning properly to ensure stable operation of the equipment.‌

HDPE pipe production line produced by Comrise Machinery Co., Ltd is our hot selling product,Our after-sales service is guaranteed, with high-quality machines and mature technology. Welcome to send inquiry to our factory.
