High Speed 16-50mm HDPE Pipe Production Line

Comrise factory ensures that the High Speed 16-50mm HDPE Pipe Production Line combines durable materials, advanced control systems, and automated operation to provide high output and precise pipe dimensions. Available through certified manufacturers, suppliers, and factories, this production line offers customized options to suit specific production requirements.

Key Components and Features

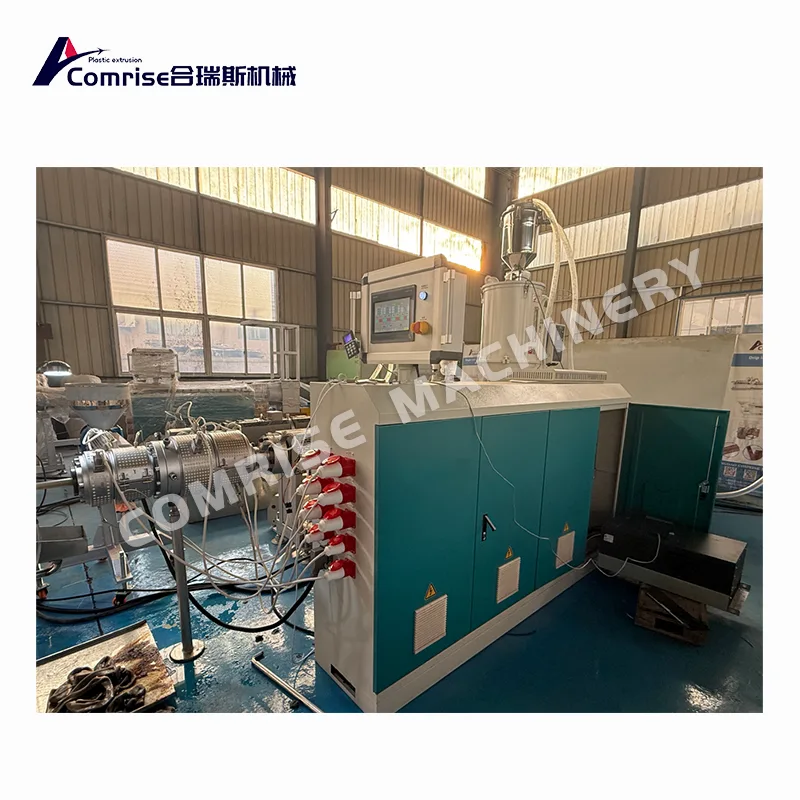

1. High-Efficiency Extruder

The line uses a 60/38 single-screw extruder for thorough plasticizing and uniform melting.

90kW motor ensures maximum production capacity and efficiency.

Ceramic heating provides uniform temperature and reduces energy consumption.

Adjustable process parameters allow precise control of pipe size and shape.

2. Die Head Mold

Supports adjustable molds for pipes of varying diameters and shapes.

Ensures dimensional accuracy and stable surface quality.

Nitrogen treatment improves hardness and extends mold service life.

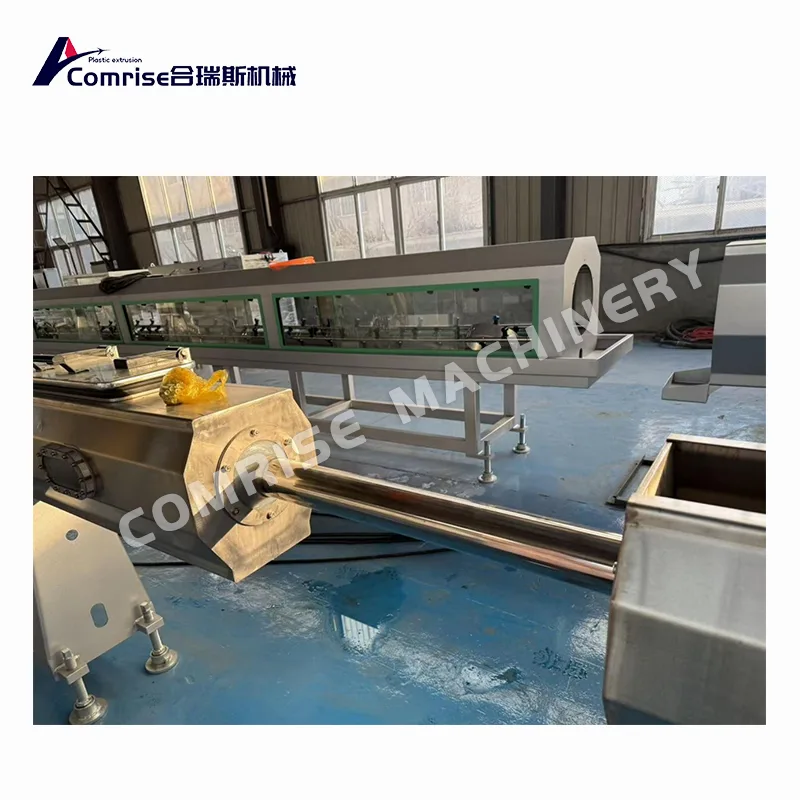

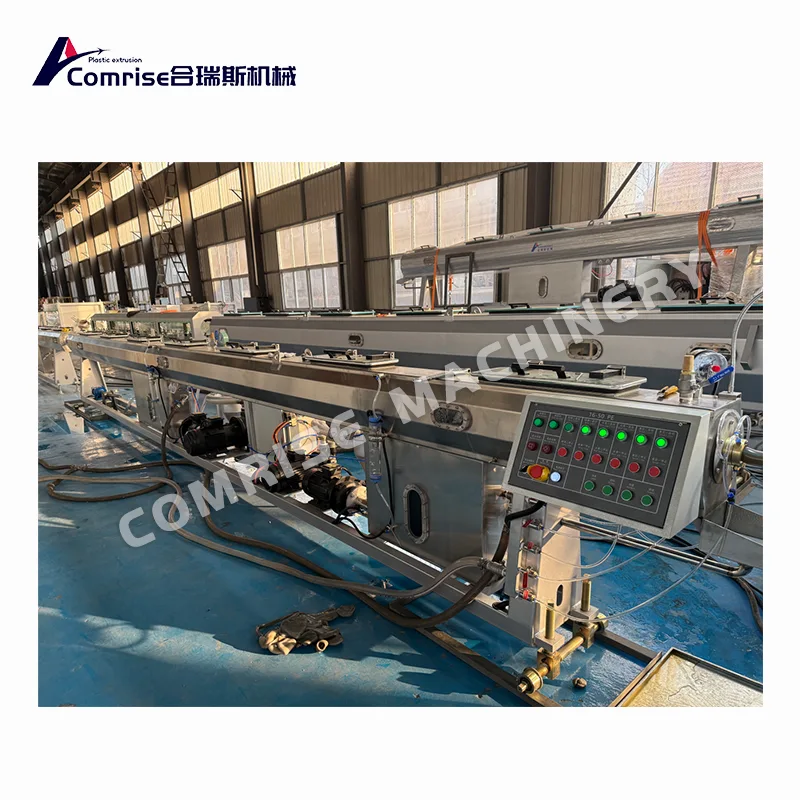

3. Vacuum Water Tank

Entirely made of 304 stainless steel, offering durability and corrosion resistance.

Innovative design with stainless steel piping eliminates leakage problems.

Three water tanks, one vacuum box, and two spray boxes provide efficient cooling.

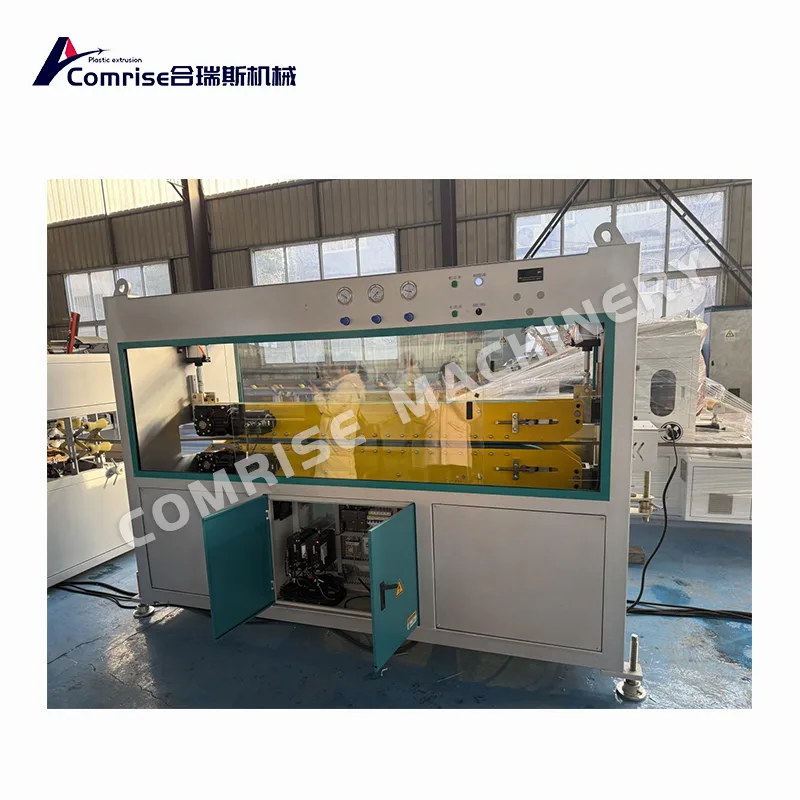

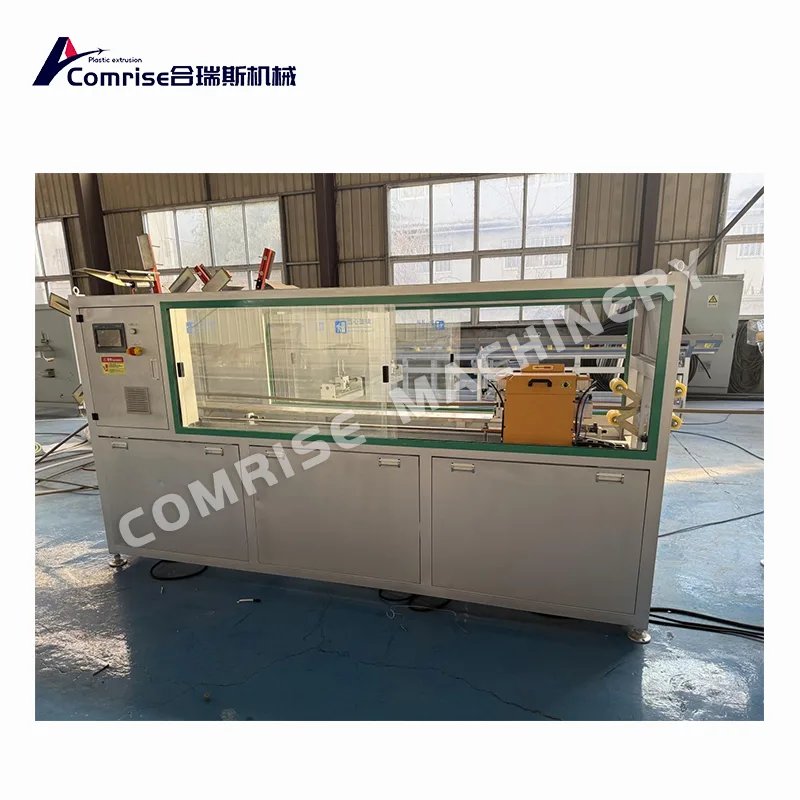

4. Dual Track Tractor

Offers fast movement and high adaptability to different pipe sizes.

Maintains stability during high-speed production.

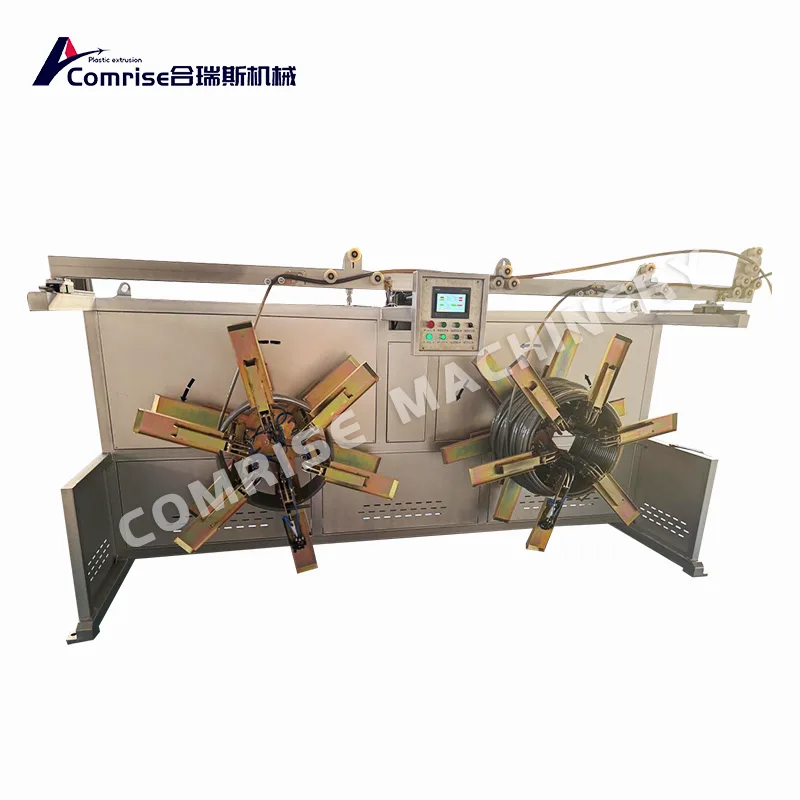

5. Dual Station Rewinding Machine

Fully automatic dual-station winding ensures precision and speed.

Intelligent control system reduces manual operation and enhances production efficiency.

Product Application

1.Urban water supply engineering: High speed 16-50mm HDPE pipe production line can be used in the water supply system to ensure the safe transportation of water.

2.Wastewater treatment: widely used in wastewater treatment and drainage systems.

3.In the chemical industry, PE pipes are widely used due to their corrosion resistance.

4.Natural gas and oil transportation: used for the construction of natural gas and oil pipelines.

5.Agricultural irrigation: Used in agriculture for irrigation systems to help improve water resource utilization efficiency.

6.PE pipes are widely used in multiple fields due to their lightweight, strong flexibility, and easy installation characteristics, and have good environmental performance

Maintenance and Precautions

Regularly inspect the heating system and water tank piping of the high speed 16-50mm HDPE pipe production line to ensure there are no blockages or leaks.

Keep the screw and mold clean to prevent material residue from affecting production quality.

Regularly lubricate the moving parts of the tractor and winding machine to ensure smooth operation.

Perform rust prevention maintenance on the vacuum water tank to extend its service life.
