PE Insulation Pipe Machine

Comerise factory’s PE insulation pipe machine also called PE vacuum anti-corrosion and thermal insulation pipe production line (φ90-φ2000) is a new pipe production line developed by our factory based on foreign pipe extrusion technology and combined our years of real production experience. This series of units consists of extruder, mould, vacuum sizing box, tractor, cutting machine, unloading rack and other equipment. It has the characteristics of high automation, high production, stable performance and long service of life. It is currently the most advanced and high-quality anti-corrosion and thermal insulation pipe production line in the world.

What Is PE Insulation Pipe Machine?

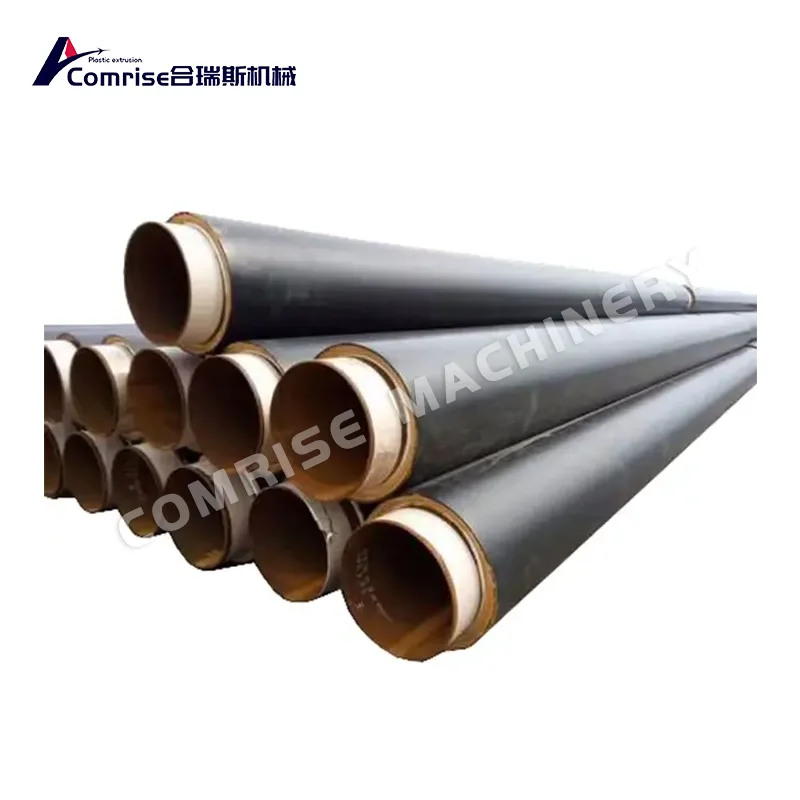

A complete automated production line used to manufacture pre-insulated steel pipes with PE outer layer and PU foam insulation, widely applied in energy and infrastructure sectors.

1.Main PE Extrusion Line (Yellow/Black Jacket)

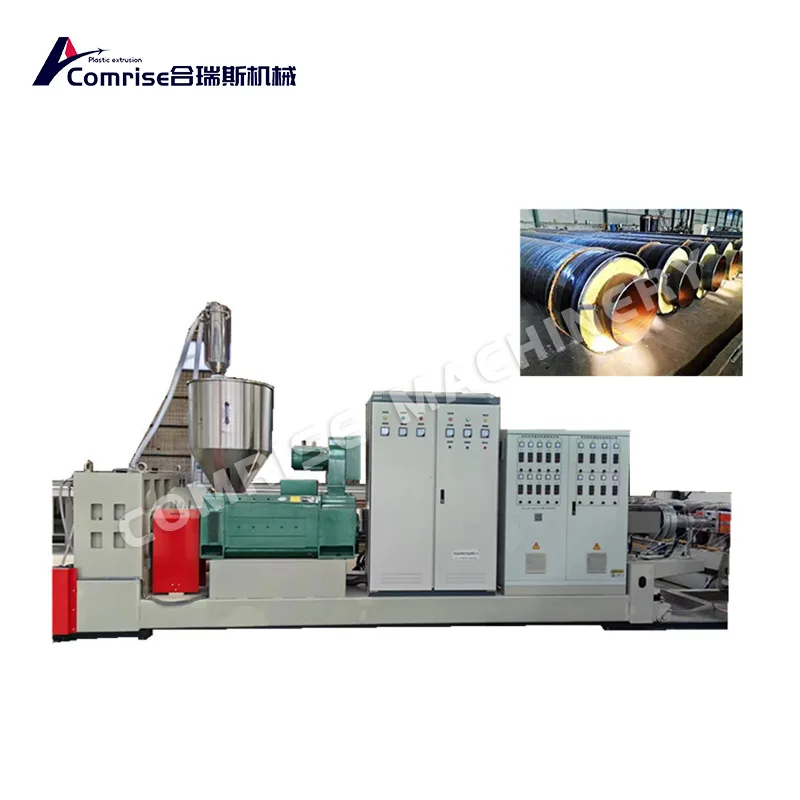

Single Screw Extruder: SJ90/30

Screw Material: 38CrMoAlA, nitrided

Motor Power: 75kW

Inverter control, PID temperature control

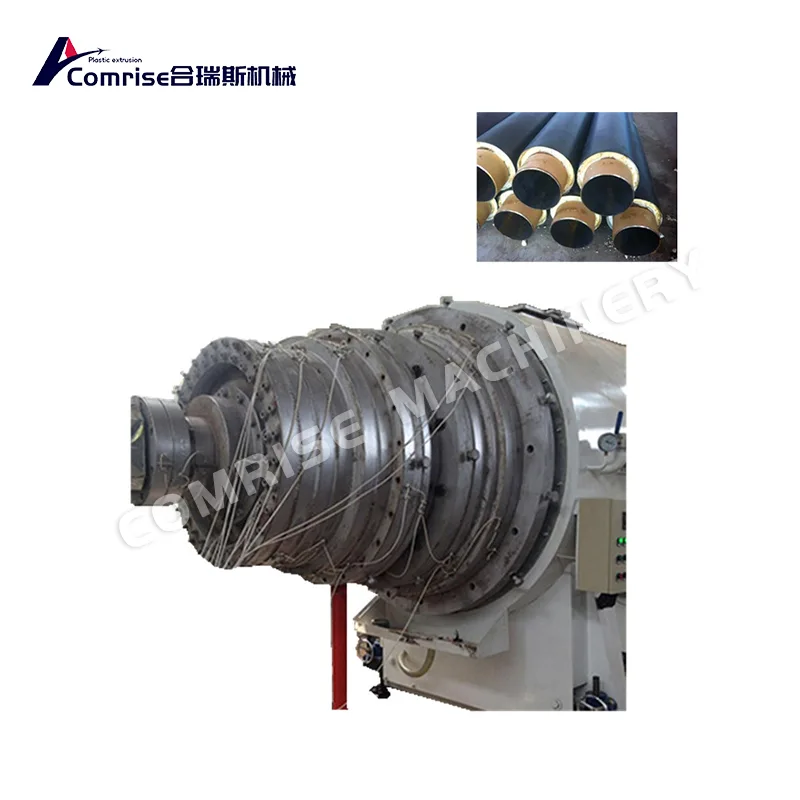

PE pipe extrusion die head

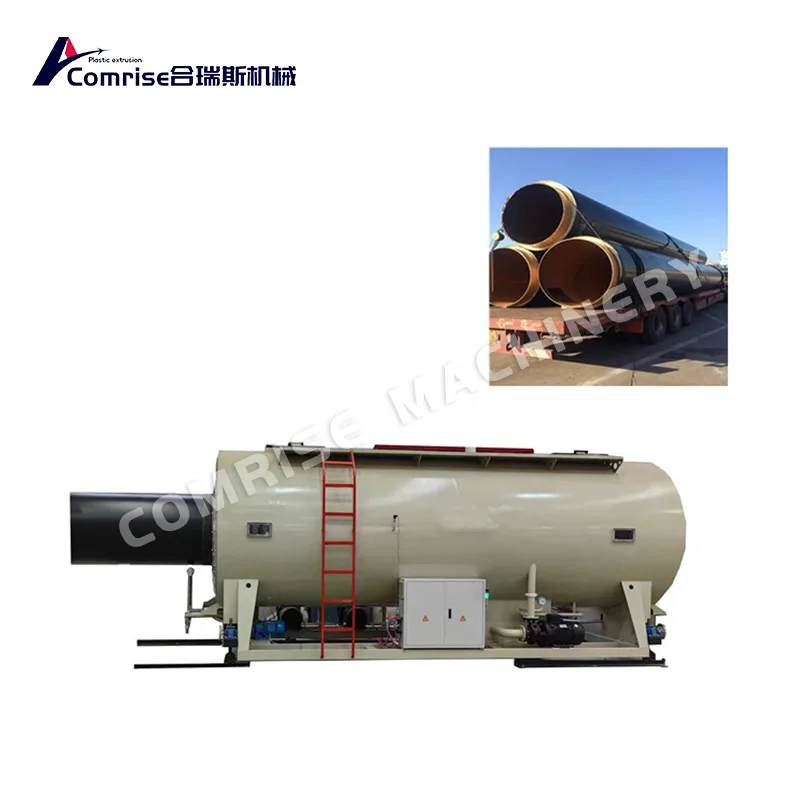

Vacuum sizing tank

Spray cooling water tank

Digital control system

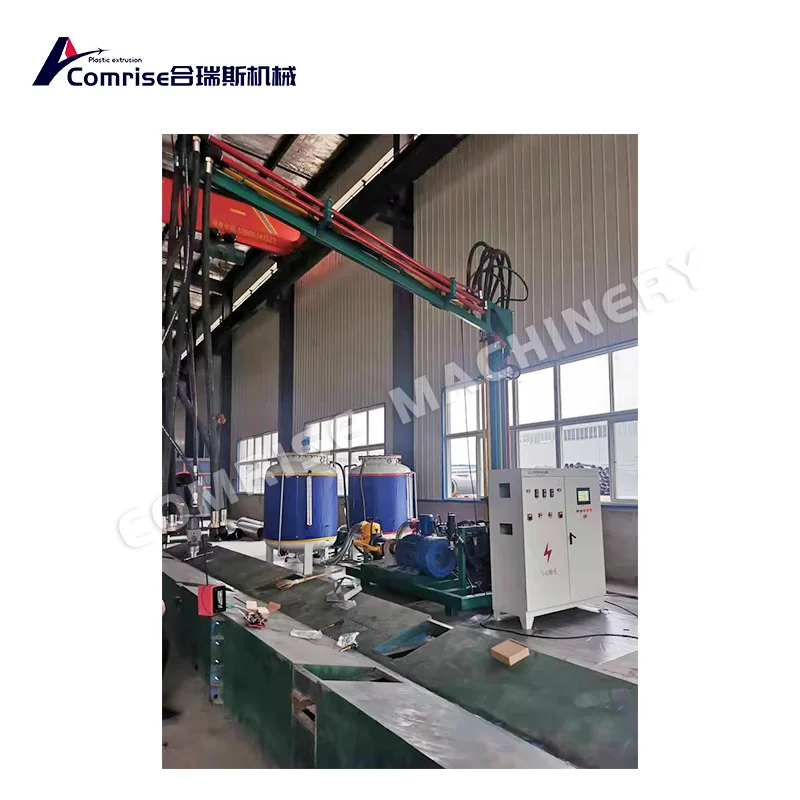

2. PU High Pressure Foaming Machine

High-pressure foaming system

A/B material tanks with heating & stirring

Precision metering pump

Automatic cleaning function

Mixing gun & injection gun assembly

Temperature & ratio adjustable

3. Foaming Molding Platform

One-step forming track platform

Pipe centering & alignment device

Sealing mold base

Support frame & operation platform

Safety guardrails

4. Caterpillar Haul-off Machine

Pneumatic pressing caterpillar haul-off

Wear-resistant rubber blocks

Synchronous inverter control

Stable traction speed

5. Cutting Machine & Discharge Table

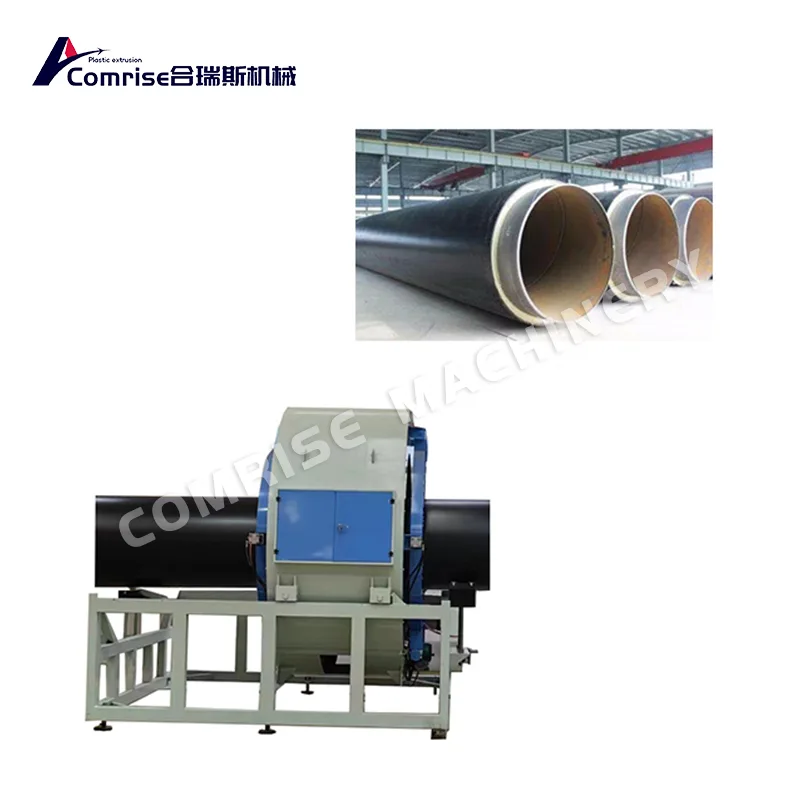

Planetary cutter / non-cutting cutter

Fixed-length cutting system

Finished product discharge rack

Automatic length counting

6. Total Control System

PLC centralized control

Full-line synchronous operation

Touch screen operation panel

Fault alarm & safety protection

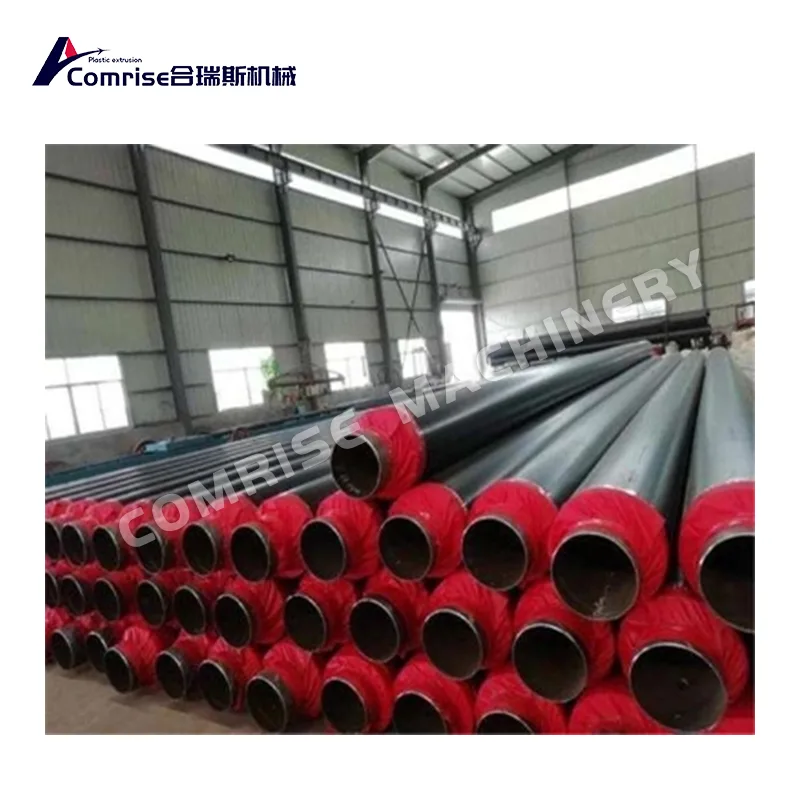

Our PE insulation pipe machine production line is specially designed for manufacturing pre-insulated steel pipes with PE outer protection layer and PU foam insulation layer. It integrates steel pipe preheating, PE outer jacket extrusion, PU high-pressure foaming, molding, traction and cutting in one fully automatic system.

This one-step production line is widely used for district heating, cold insulation, oil and gas transportation pipelines. It features stable operation, high automation, uniform foaming density and good concentricity.

Main Structure

- PE outer jacket single screw extruder

- Vacuum sizing and cooling system

- Steel pipe preheating device

- High pressure PU foaming machine

- One-step molding platform with centering system

- Caterpillar haul-off machine

- Automatic fixed-length cutting machine

- PLC centralized control system

Product Advantages

- Full automatic one-step forming, high efficiency

- Stable foaming ratio and uniform insulation layer

- PE jacket with good wear and corrosion resistance

- Safe operation, low energy consumption

- Customized for pipe diameter from DN90 to DN1600

- Suitable for yellow or black PE jacket production

We are a professional manufacturer providing complete solutions, installation and after-sales service for PE insulation pipe machine. Welcome to contact us for details and quotation.
